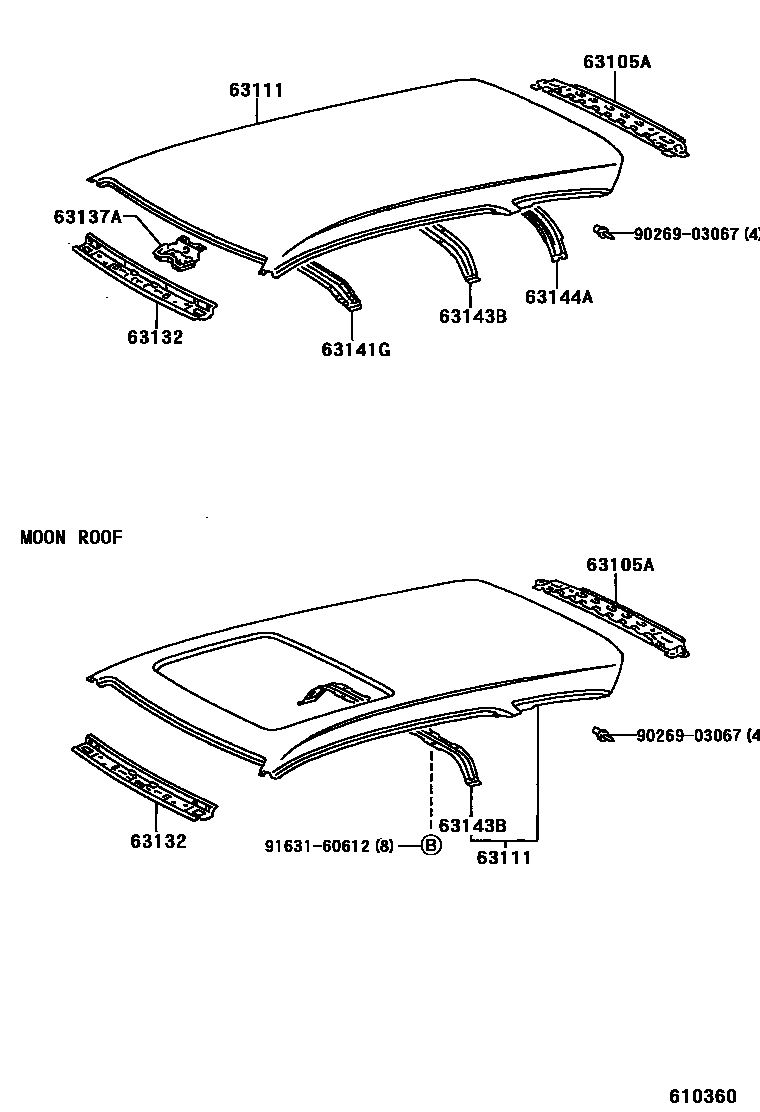

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-13140iAE11#199508-199704

63111PANEL, ROOF

main63109-13010iAE11#..STOUR,VTOUR199508-199704

main63109-13020iAE111,115..BZT,ZTOUR199508-199704

main63111-13160iAE11#..ROSSO,STOUR,VTOUR199704-200207

main63111-13180iAE11#199508-199704

63132PANEL, WINDSHIELD HEADER, INNER

main63132-13040iAE11#199508-199704

63137ABRACKET, DOME LAMP, NO.1

main63137-13030iAE11#199704-200207

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-13070iAE11#199508-199704

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63127-13010iAE11#199508-199704

main63143-13040iAE11#199508-199701

main63143-13041iAE11#199701-199704

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-13010iAE11#199508-199704

9026903067

main90269-03067

9163160612

main91631-60612

9 parts on this diagram · 3 diagrams in section
