SIDE MEMBER
58313JEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314GEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58790CARRIER ASSY, JACK
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61045REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, RH
61046REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61133BBRACKET, FRONT BODY PILLAR ,OUTER RH
61134BBRACKET, FRONT BODY PILLAR OUTER, LH
61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH
61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61265ACHANNEL, ROOF DRIP SIDE, CENTER RH
61266ACHANNEL, ROOF DRIP SIDE, CENTER LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH
61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61345BPILLAR, CENTER BODY, INNER LOWER RH
61346BPILLAR, CENTER BODY, INNER LOWER LH
61391SPACER, CENTER BODY PILLAR, INNER
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH
61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61621DTROUGH, BACK DOOR OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61715AEXTENSION, ROOF SIDE, INNER UPPER RH
61716AEXTENSION, ROOF SIDE, INNER UPPER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
61788ABRACKET, REAR BUMPER SIDE, NO.2 RH
61824DPLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61826APLATE, NOISE CONTROL, NO.3
62151BPAD, COWL SIDE SILENCER
62152BPAD, COWL SIDE SILENCER, NO.2
90 X 140
80 X 180
70 X 150
62553DPAD, PILLAR, NO.3
67814PAD, QUARTER PANEL SILENCER, NO.2
7601
9010508120
main90105-08120
9017908102
main90179-08102
9033330008
main90333-30008
9048026011
main90480-26011
9095001130
main90950-01130
9095001173
main90950-01173
9095001352
main90950-01352
9095001580
main90950-01580
9095001637
main90950-01637
9095001784
main90950-01784
9095001826
main90950-01826
9095001864
main90950-01864
9095001866
main90950-01866

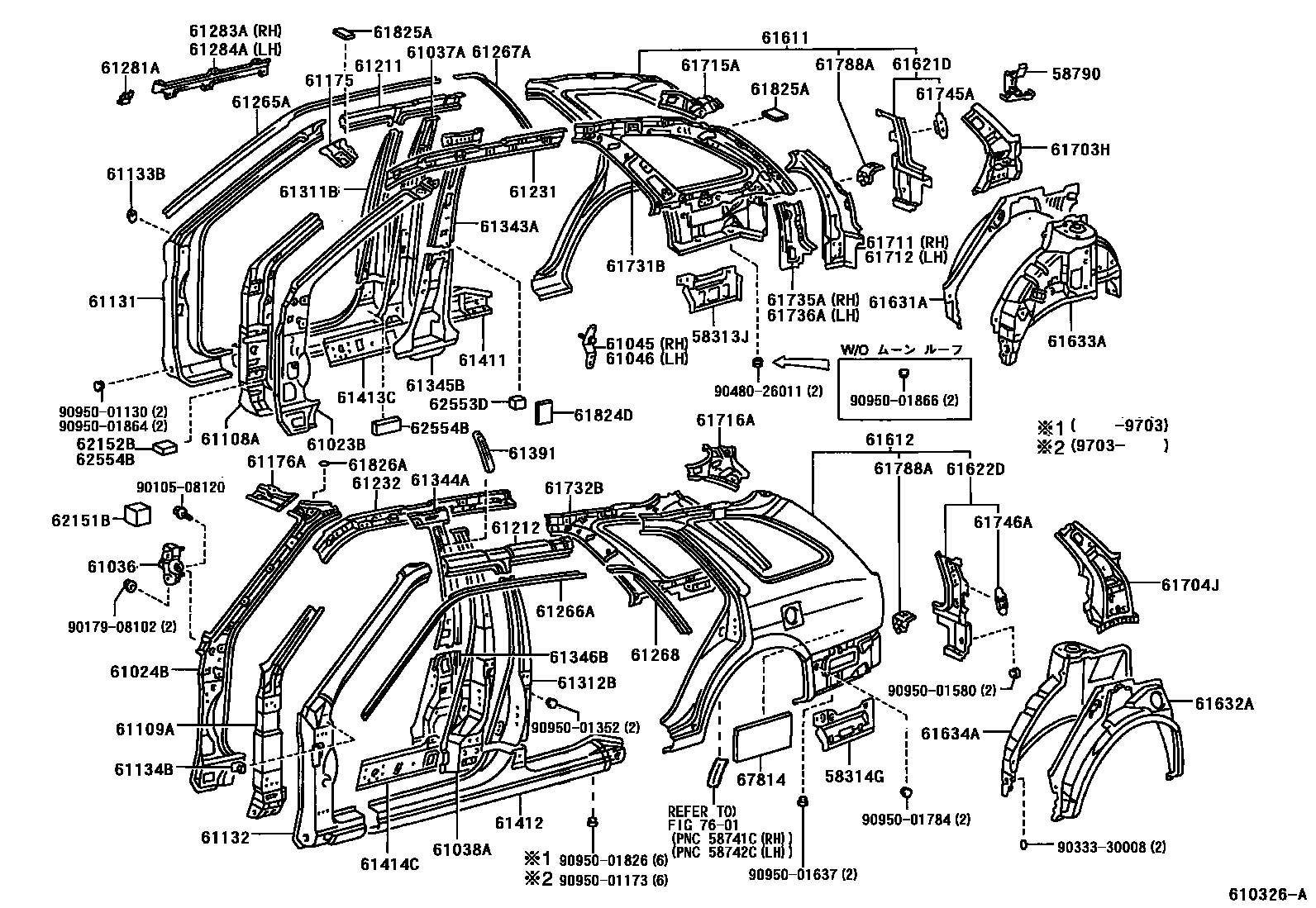

83 parts on this diagram · 2 diagrams in section
