MAT & CARPET

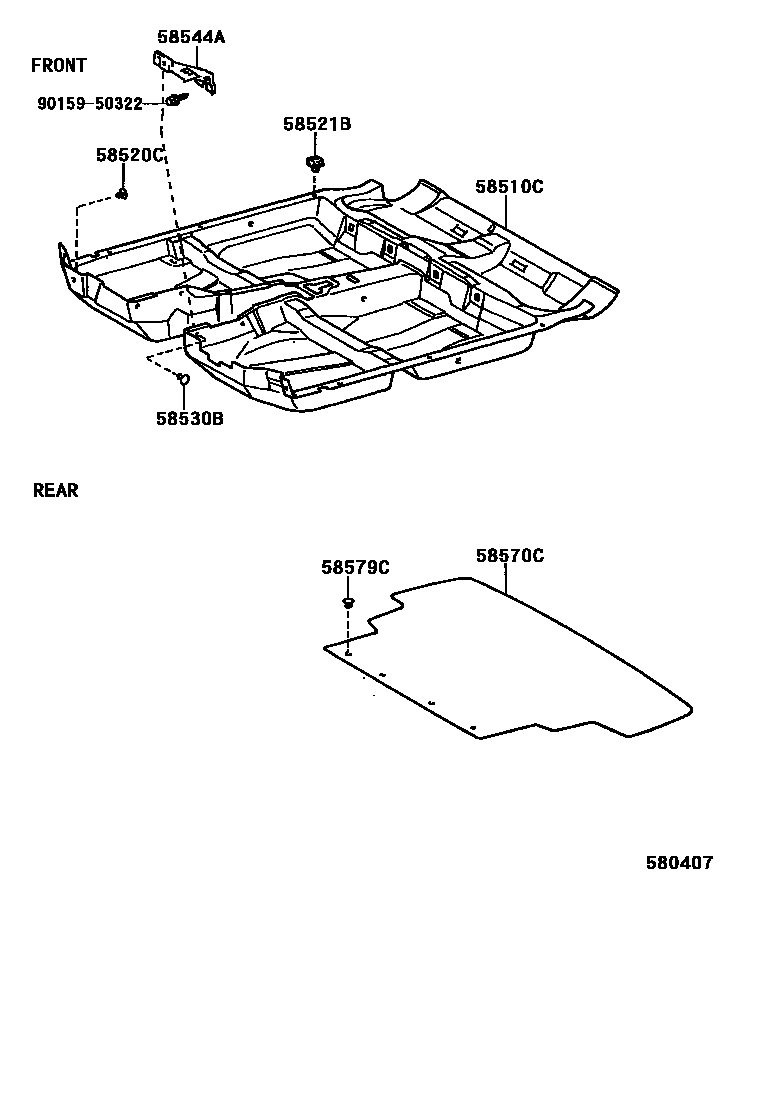

Parts diagram
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-13420-B0i199508-199704
sub58510-13420
main58510-13420-B0i199605-199704
sub58510-13420
main58510-13430-B0i199508-199704
SHADOW GRAY,TRIM1#
sub58510-13430
main58510-13430-B0i199605-199704
SHADOW GRAY,TRIM16,17
sub58510-13430
main58510-1F030-B0i199605-199704
main58510-1F030-B0i199605-199704
main58510-1F060-B0i199605-199704
SHADOW GRAY,TRIM16,17
sub58510-1F060
main58510-1F060-B0i199605-199704
SHADOW GRAY,TRIM1#
sub58510-1F060
main58510-1F100-B0i199704-200207
main58510-1F100-B1i199804-200207
main58510-1F110-B0i199704-200207
SHADOW GRAY,TRIM1#
main58510-1F110-B1i199804-200207
DARK CHARCOAL,TRIM1#
main58510-1F120-B0i199704-200207
main58510-1F120-B1i199804-200207
main58510-1F130-B0i199704-200207
SHADOW GRAY,TRIM1#
main58510-1F130-B1i199804-200207
DARK CHARCOAL,TRIM1#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-09068-22i199605-199704
BLACK,TRIM16,17
sub90467-09068
main90467-09068-22i199508-200207
BLACK,TRIM1#
sub90467-09068
main90467-09068-B4i199804-200007
DK.CHARCOAL,TRIM1#
sub90467-09068
58521BHOOK, FLOOR CARPET
main58521-12120i199508-200207
58530BCLIP(FOR FRONT FLOOR CARPET)
main90467-09118i199508-200207
58544ABRACKET, FLOOR CARPET, LH
main58544-13040i199704-200207
58570CCARPET ASSY, REAR FLOOR
main58571-13120-B1i199605-199704
SHADOW GRAY,TRIM16,17
main58571-13120-B1i199508-199704
SHADOW GRAY,TRIM1#
main58571-13150-B0i199804-200207
MEDIUM CHARCOAL,TRIM1#
sub58571-13160
main58571-13150-B1i199910-200207
SHADOW GRAY,TRIM1#
sub58571-13160
main58571-13160-B0i199704-199910
SHADOW GRAY,TRIM1#
sub58571-13150
58579CCLIP, REAR FLOOR CARPET SET
main90467-06089-B1i199804-200207
DK.CHARCOAL,TRIM1#
sub90467-06089
main90467-06089-C0i199704-200207
BLACK,TRIM1#
sub90467-06089
main90467-09160-C0i199508-199704
BLACK,TRIM1#
main90467-09160-C0i199605-199704
BLACK,TRIM16,17
9015950322
main90159-50322

8 parts on this diagram · 1 diagram in section
