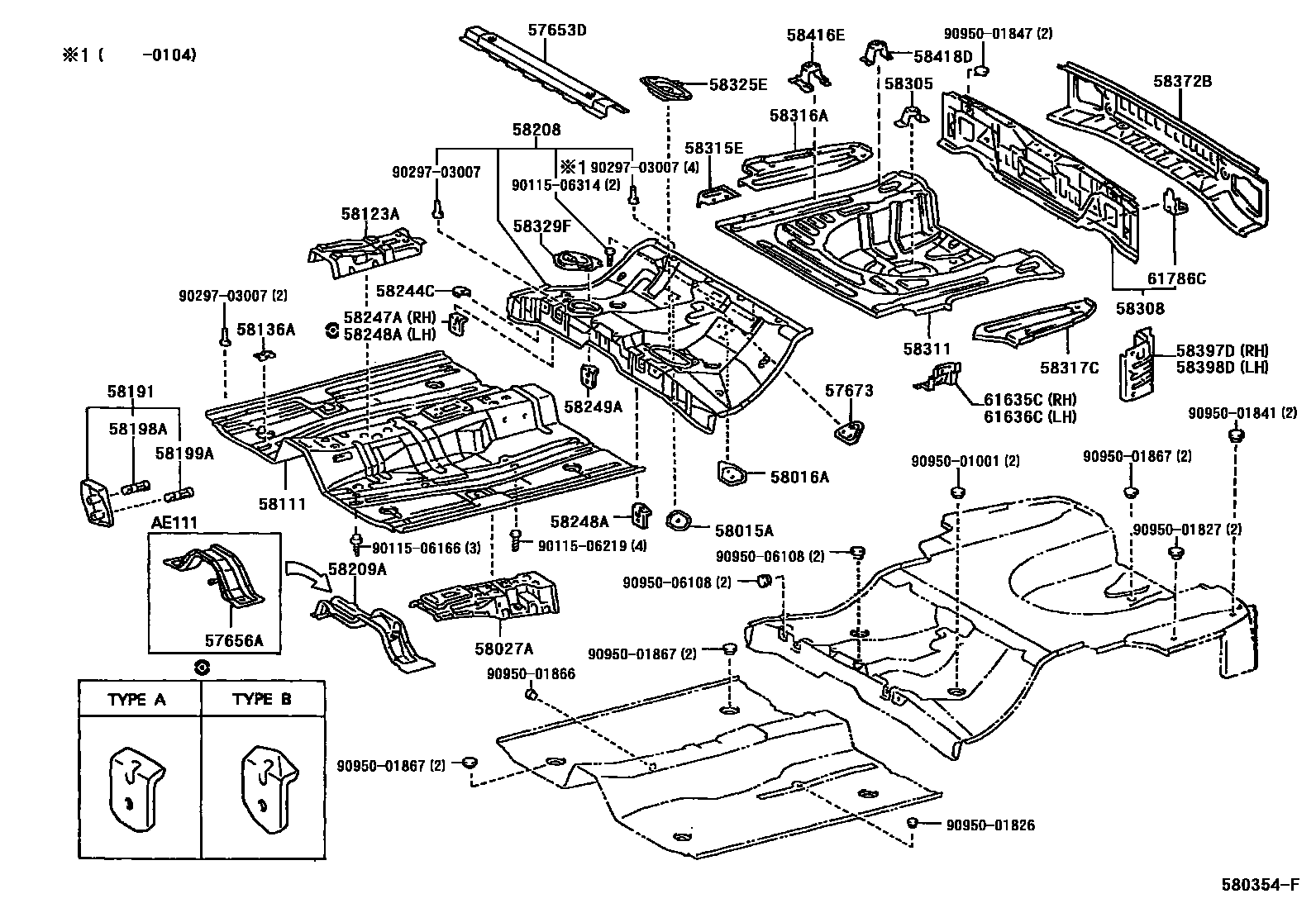

FLOOR PAN & LOWER BACK PANEL
57653DMEMBER, REAR FLOOR CROSS, NO.2
57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1
57673BRACKET, REAR SEATBACK HINGE MOUNTING
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58136ACOVER, FRONT FLOOR SERVICE HOLE
58191FOOTREST, FRONT FLOOR
58198ACLIP, FOOTREST, NO.1
58199ACLIP, FOOTREST, NO.2
58208PAN, CENTER FLOOR
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58249AREINFORCEMENT, REAR SEAT MOUNTING
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58308PANEL SUB-ASSY, BODY LOWER BACK, INNER
58311PAN, REAR FLOOR
58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH
58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH
58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58372BPANEL, BODY LOWER BACK, LOWER
58397DPANEL, REAR FLOOR END DUST SEAL, RH
58398DPANEL, REAR FLOOR END DUST SEAL, LH
58416EBRACKET, DECK BOARD, NO.1 RH
58418DBRACKET, DECK BOARD, NO.2
61635CBRACE, QUARTER WHEEL HOUSE, RH
61636CBRACE, QUARTER WHEEL HOUSE, LH
61786CBRACKET, REAR BUMPER SIDE
9011506166
9011506219
9011506314
9029703007
9095001001
9095001826
9095001827
9095001841
9095001847
9095001866
9095001867
9095006108
46 parts on this diagram · 1 diagram in section
