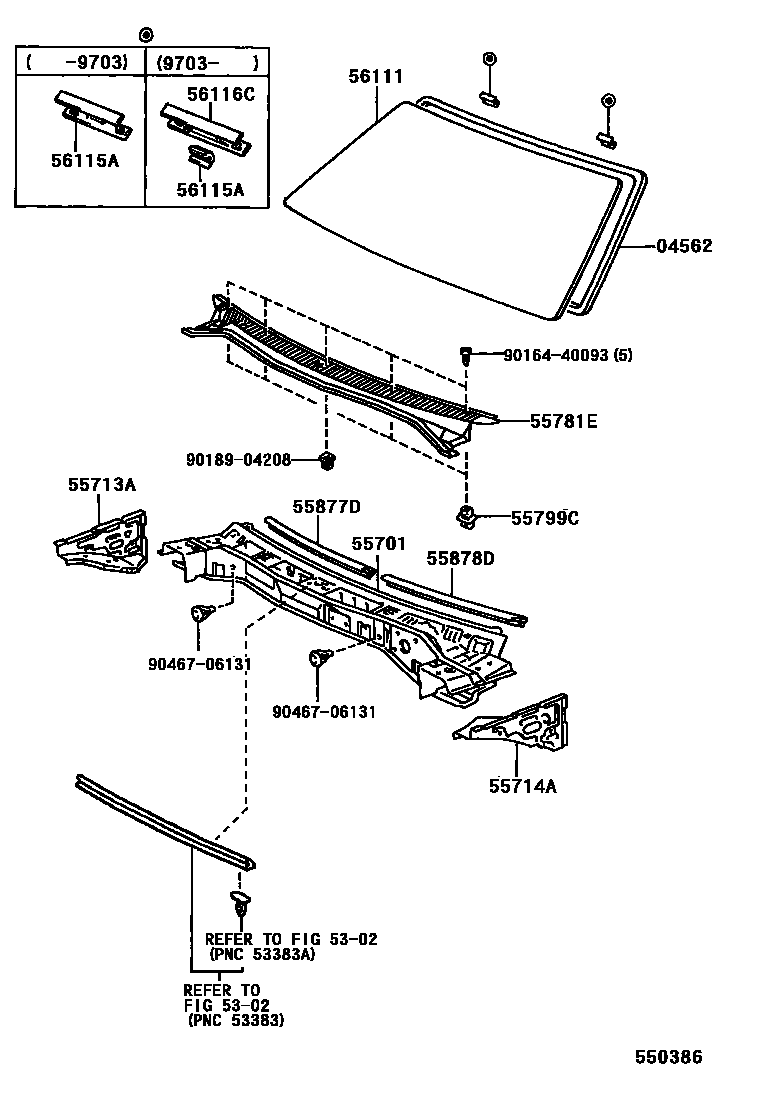

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAE11#199508-200207

5302

55701PANEL SUB-ASSY, COWL

main55700-1A090iAE111..BZT199605-199907

sub55700-1A091

main55700-1A091iAE111..BZT199909-200207

sub55700-1A341

main55700-1A900iAE11#..ROSSO,STOUR,VTOUR,ZTOUR199508-199909

sub55700-1A902

main55700-1A902iAE111..BZT199907-200207

55713APANEL, COWL TOP SIDE, RH

main55713-12081iAE11#199508-200207

55714APANEL, COWL TOP SIDE, LH

main55714-12081iAE11#199508-200207

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-12160iAE11#199508-200207

main55708-12170iAE11#199508-200207

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-12010iAE11#199508-200207

55877DWETHERSTRIP, COWL, REAR RH

main55877-12080iAE11#199508-199705

55878DWETHERSTRIP, COWL, REAR LH

main55878-12070iAE11#199508-199705

56111GLASS, WINDSHIELD

main56111-1A510iAE11#199508-200207

main56111-1A690iAE11#199508-200207

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-12040iAE11#199508-199703

main56115-12050iAE11#199703-200207

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAE11#199703-200207

9016440093

main90164-40093

9018904208

main90189-04208

9046706131

main90467-06131

15 parts on this diagram · 1 diagram in section
