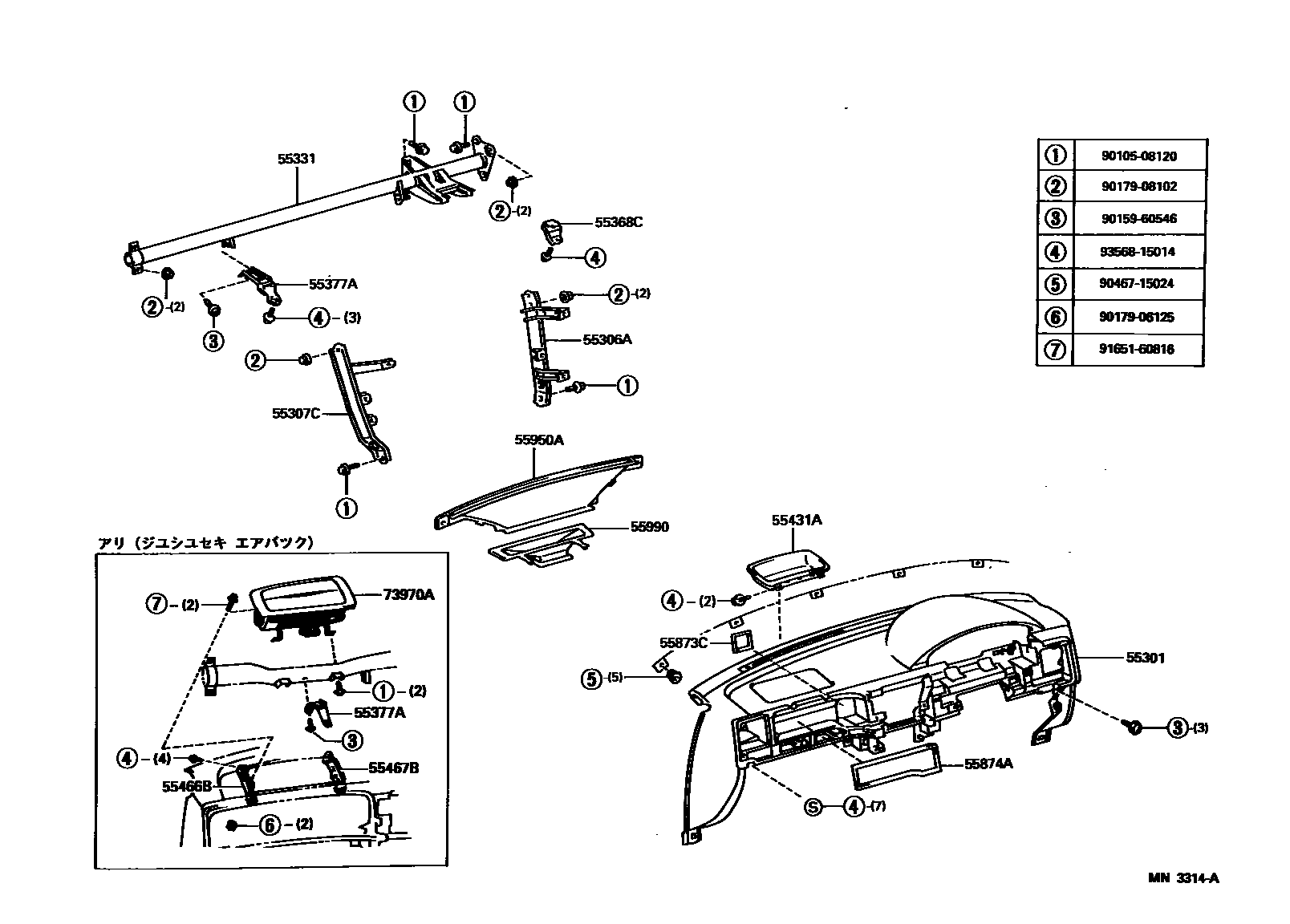

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM16,17
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55331REINFORCEMENT, INSTRUMENT PANEL
55368CBRACKET, METER MOUNTING
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55431APANEL, INSTRUMENT PANEL FINISH
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM16,17
55466BRETAINER, INSTRUMENT PANEL SAFETY PAD, NO.1
55467BRETAINER, INSTRUMENT PANEL SAFETY PAD, NO.2
55873CSEAL, AIR DUCT, CENTER
55874ASEAL, AIR DUCT, NO.4
55990NOZZLE ASSY, CENTER DEFROSTER
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM16,17
9010508120
main90105-08120
9015960546
main90159-60546
9017906125
main90179-06125
9017908102
main90179-08102
9046715024
main90467-15024
9165160816
main91651-60816
9356815014
main93568-15014
21 parts on this diagram · 4 diagrams in section
