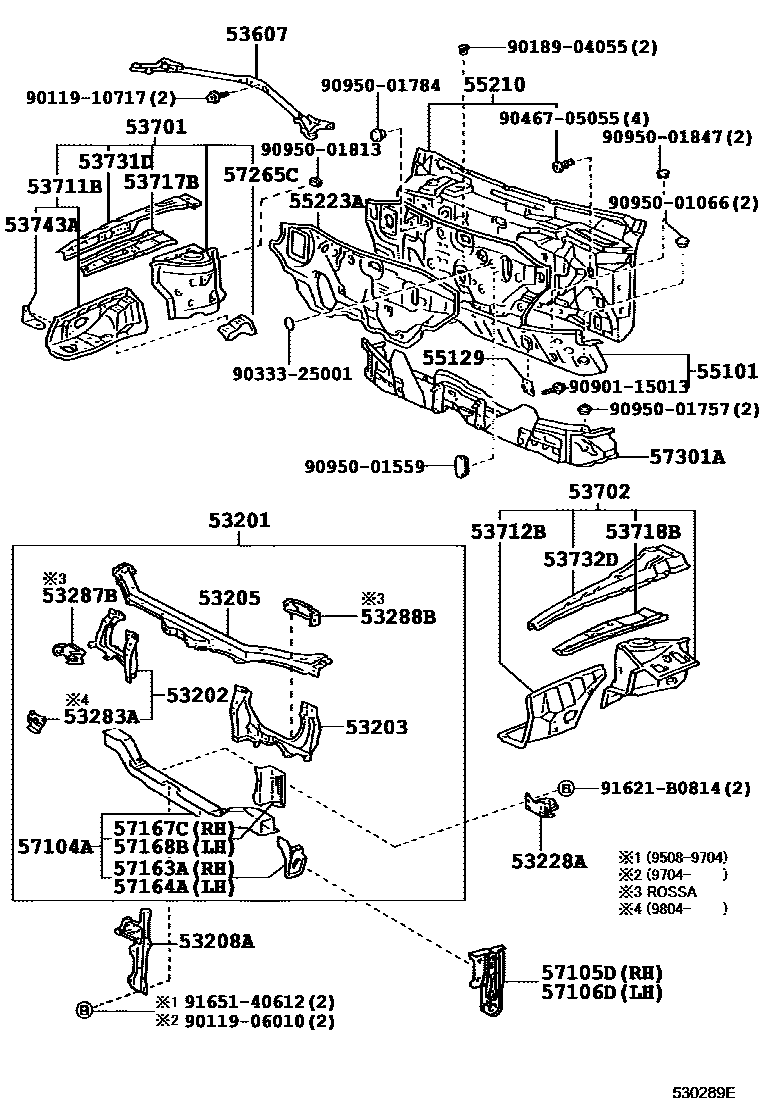

FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-1A100iAE11#199508-199704

main53201-1A101iAE11#..BZT,STOUR,ZTOUR199804-200207

main53201-1A110iAE111,114..ROSSO199804-200207

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-12350iAE11#199508-199704

main53202-12371iAE11#..BZT,STOUR,ZTOUR199804-200207

main53202-12380iAE111,114..ROSSO199804-200207

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-12300iAE11#199508-199704

main53203-12321iAE11#..BZT,STOUR,ZTOUR199804-200207

main53203-12330iAE111,114..ROSSO199804-200207

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-12160iAE11#199508-199701

main53205-12161iAE11#199701-199704

main53205-12180×2iAE111,114..ROSSO199804-200207

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-12440iAE111,114..ROSSO199804-200207

main53208-13030iAE11#199508-199704

main53215-12230iAE11#..BZT,STOUR,VTOUR,ZTOUR199705-200207

53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-12130iAE11#199508-199704

53283AREINFORCEMENT, RADIATOR SUPPORT, LOWER

main53283-12010iAE11#199804-200207

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-12060iAE111,114..ROSSO199804-200207

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-12060iAE111,114..ROSSO199804-200207

53607BRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, RH

main53607-12040iAE111..BZT199605-199704

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-1A052iAE11#199508-199704

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-1A042iAE11#199508-199704

53711BAPRON, FRONT FENDER, FRONT RH

main53711-12902iAE11#199508-199704

53712BAPRON, FRONT FENDER, FRONT LH

main53712-12182iAE11#199508-199704

53717BGUSSET, FENDER APRON, RH

main53717-12051iAE11#199508-199704

53718BGUSSET, FENDER APRON, LH

main53718-12051iAE11#199508-199704

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12150iAE11#199508-199704

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12130iAE11#199508-199704

53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-12040iAE11#199704-200207

55101PANEL SUB-ASSY, DASH

main55101-1E250iAE111..5F199605-199704

main55101-1E270iAE111..4FC199605-199704

main55101-1E340iAE114,115..5F199508-199704

sub90333-35002

main55101-1E360iAE114,115..4FC199508-199704

sub90333-40001

main55101-1E490iAE111..(ROSSO,STOUR,ZTOUR)..4FC199704-200207

main55101-1E510iAE114;AE111,115..MTM;AE111..BZT..4FC200110-200207

main55101-1E540iAE114,115..5F199704-200110

sub90333-35002

sub90333-40001

main55101-1E550iAE115..4FC199704-200207

main55101-1E560iAE114..4FC199704-200110

sub90333-40001

main55101-1E570iAE111..5F199704-200110

main55101-1E580iAE111..6F199704-200110

sub90333-35002

main55101-1E590iAE111..BZT..4FC199704-200110

sub90333-35002

sub90333-40001

55129COVER, DASH PANEL HOLE

main55129-12030×2iAE11#199704-200207

55210INSULATOR ASSY, DASH PANEL

main55210-12430iAE11#199508-199704

main55210-12460iAE11#199704-200207

55223AINSULATOR, DASH PANEL, OUTER

main55223-12071iAE111..BZT199605-199704

main55223-12072iAE111..BZT199905-200207

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-12030iAE11#199508-199704

main57104-12080iAE111,114..ROSSO199804-200207

57105DPLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-12060iAE11#199508-199704

main57105-12120iAE111,114..ROSSO199804-199910

sub57105-12121

main57105-12130iAE111,114..ROSSO199910-200207

main57105-13010iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

sub57105-12150

57106DPLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-12060iAE11#199508-199704

main57106-12110iAE111,114..ROSSO199804-200207

main57106-13010iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-12120iAE11#199508-199704

main57163-12130iAE111,114..ROSSO199804-200207

57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-12070iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

main57164-12080iAE111,114..ROSSO199804-200207

57167CGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-12100iAE11#199508-199704

57168BGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-12100iAE11#199508-199704

57265CBRACKET, ENGINE MOUNTING, RH

main57265-12050iAE11#199508-199704

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-12150iAE11#199508-199704

sub57301-12180

sub94223-80600

main57301-13010iAE11#199704-200207

9011906010

main90119-06010

9011910717

main90119-10717

9018904055

main90189-04055

9033325001

main90333-25001

9046705055

main90467-05055

9090115013

main90901-15013

9095001066

main90950-01066

9095001559

main90950-01559

9095001757

main90950-01757

9095001784

main90950-01784

9095001813

main90950-01813

9095001847

main90950-01847

91621B0814

main91621-B0814

9165140612

main91651-40612

46 parts on this diagram · 1 diagram in section
