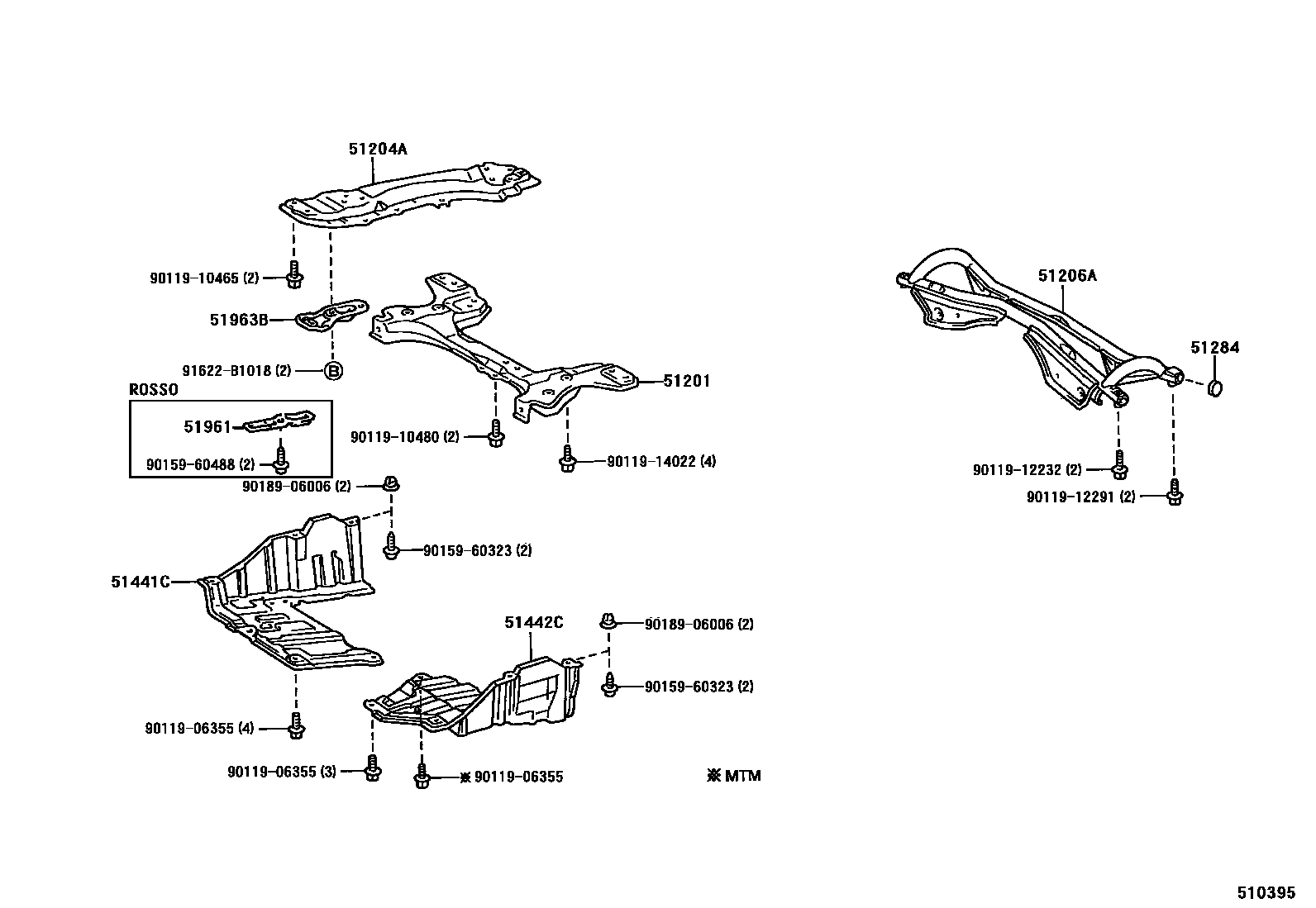

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12380iAE111199605-200207

main51201-12390iAE114,115199508-200207

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12080iAE111199605-199905

sub51204-12081

main51204-12081iAE111199905-200001

sub51204-12082

main51204-12082iAE111200001-200207

main51204-12110iAE114,115199508-200207

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12040iAE111199704-200207

PLANT NO. K21

main51206-12060iAE111199605-200207

PLANT NO.B11

main51206-12070iAE114,115199508-200207

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-12020iAE114,115199508-200207

51441CCOVER, ENGINE UNDER, RH

main51410-12010iAE111..BZT199804-200207

main51441-12150iAE11#199508-200207

main51441-12160iAE111,114..ROSSO199804-200207

51442CCOVER, ENGINE UNDER, LH

main51442-12100iAE11#..5F199508-200207

main51442-12110iAE11#..(BZT,STOUR,VTOUR,ZTOUR)..4FC199508-200207

main51442-12120iAE111,114..ROSSO..5F199804-200207

main51442-12130iAE111,114..ROSSO..4FC199804-200207

51961HOOK, NO.1

main51960-12060iAE111,114..ROSSO199804-200207

51963BHOOK, TRANSPORT, FRONT RH

main51963-12210iAE11#199508-200207

9011906355

main90119-06355

9011910465

main90119-10465

9011910480

main90119-10480

9011912232

main90119-12232

9011912291

main90119-12291

9011914022

main90119-14022

9015960323

main90159-60323

9015960488

main90159-60488

9018906006

main90189-06006

91622B1018

main91622-B1018

18 parts on this diagram · 2 diagrams in section
