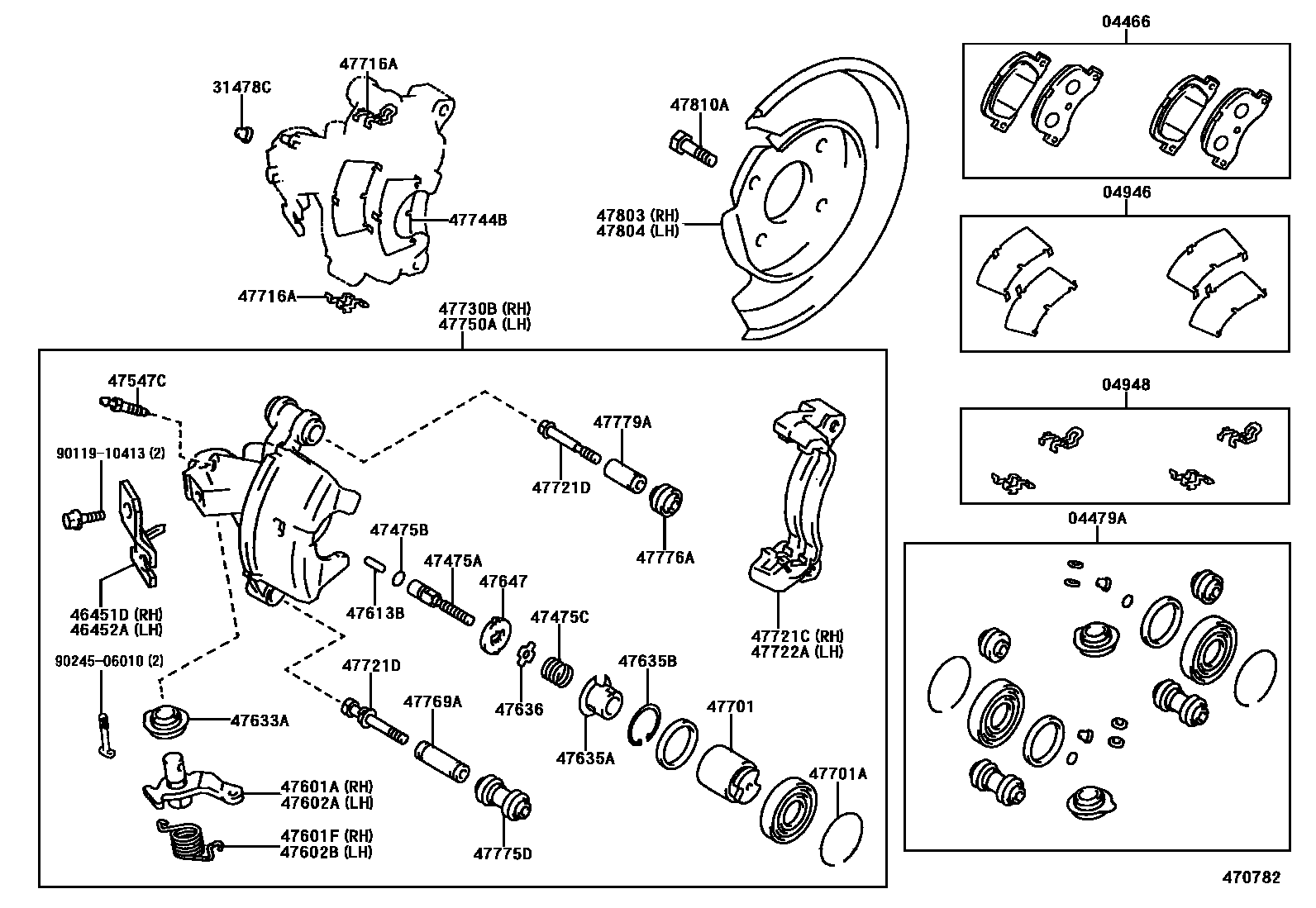

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
04479ACYLINDER KIT, DISC BRAKE, REAR
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04948FITTING KIT, DISC BRAKE, REAR
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
46451DBRACKET, PARKING BRAKE CABLE SUPPORT, RH
46452ABRACKET, PARKING BRAKE CABLE SUPPORT, LH
47475ABOLT, PAD ADJUSTING(FOR REAR DISC BRAKE)
47475BRING, O(FOR REAR DISC BRAKE PAD ADJUSTING BOLT)
47475CSPRING, COMPRESSION(FOR PAD ADJUSTING BOLT)
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47601ACRANK SUB-ASSY, PARKING BRAKE, RH
47601FSPRING, TORSION(FOR PARKING BRAKE CRANK RH)
47602ACRANK SUB-ASSY, PARKING BRAKE, LH
47602BSPRING, TORSION(FOR PARKING BRAKE CRANK LH)
47613BSTRUT, PARKING BRAKE(FOR REAR BRAKE)
47633ABOOT, PARKING BRAKE CRANK
47635ARETAINER, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)
47635BRING(FOR REAR BRAKE ADJUSTING BOLT SPRING RETAINER)
47636PLATE, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)
47647STOPPER, AUTOMATIC ADJUST BOLT(FOR REAR DISC BRAKE)
47701PISTON SUB-ASSY, REAR DISC BRAKE
47701ARING, SET(FOR DISC BRAKE PISTON, REAR)
47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH
47730BCYLINDER ASSY, REAR DISC BRAKE, RH
47744BSHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)
47750ACYLINDER ASSY, DISC BRAKE, REAR LH
47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)
47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)
47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47810ABOLT, HEXAGON(FOR REAR CALIPER)
9011910413
main90119-10413
9024506010
main90245-06010
39 parts on this diagram · 1 diagram in section
