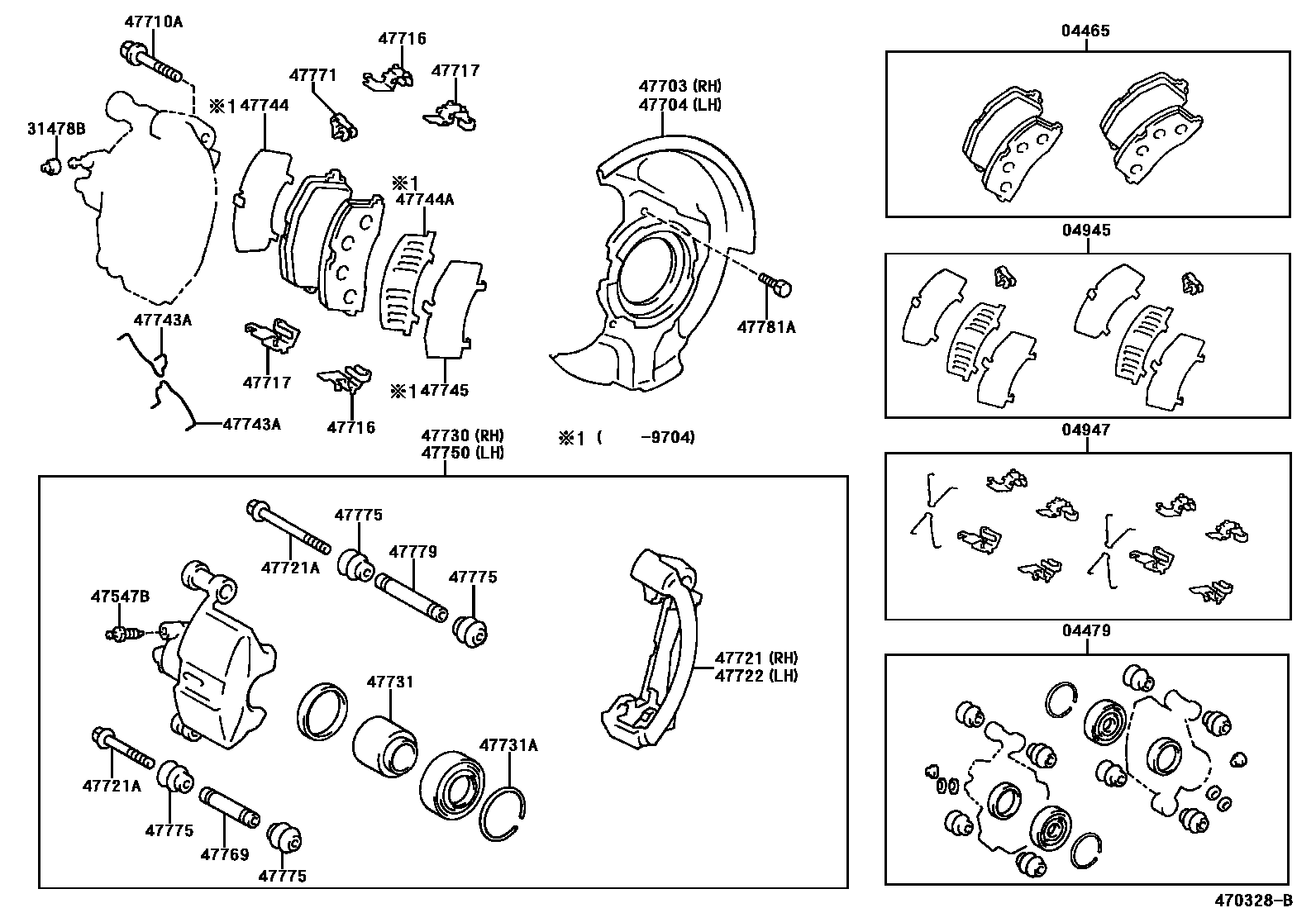

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-12240iAE111..STOUR,ZTOUR199704-199804

main04465-12490iAE114,115;AE111..BZT199704-200207

main04465-12510iAE111..ROSSO,STOUR,ZTOUR199804-200207

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12091iAE111..ROSSO,STOUR,ZTOUR199704-200207

main04479-12140iAE114,115;AE111..BZT199704-200207

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-12060iAE111..STOUR,ZTOUR199709-199804

main04945-13020iAE114,115;AE111..BZT199709-199804

main04945-32050iAE114,115;AE111..BZT199704-199709

main04945-32060iAE111..STOUR,ZTOUR199704-199709

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20060iAE111..ROSSO,STOUR,ZTOUR199704-200207

main04947-20080iAE114,115;AE111..BZT199704-200207

main04947-32010iAE111..STOUR,ZTOUR199605-199610

main04947-32080iAE114,115;AE111..BZT199508-199610

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAE11#199508-199704

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iAE11#199508-199704

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-12170iAE11#199508-199704

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47782-12170iAE11#199508-199704

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iAE11#199508-199704

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140×4iAE11#199610-199704

main47716-32031×4iAE11#199508-199610

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20140×4iAE11#199610-199704

main47717-32031×4iAE11#199508-199610

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12130iAE114,115;AE111..BZT199508-199704

main47721-12170iAE111..ROSSO,STOUR,ZTOUR199704-200207

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003×2iAE11#199508-199704

main90119-09004×2iAE11#199508-199704

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12130iAE114,115;AE111..BZT199704-200207

main47721-12170iAE111..ROSSO,STOUR,ZTOUR199704-200207

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12320iAE114,115;AE111..BZT199508-199704

main47730-12410iAE111..STOUR,ZTOUR199605-199704

47731PISTON, FRONT DISC BRAKE

main47731-12130×2iAE114,115;AE111..BZT199508-199704

main47731-12150×2iAE111..STOUR,ZTOUR199605-199704

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×2iAE111..ROSSO,STOUR,ZTOUR199704-200207

main90522-64003×2iAE114,115;AE111..BZT199704-200207

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-32020×4iAE114,115;AE111..BZT199704-200207

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-32010×2iAE11#199508-199704

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-32040×2iAE11#199508-199704

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-32040×2iAE11#199508-199704

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12320iAE114,115;AE111..BZT199704-200207

main47750-12410iAE111..ROSSO,STOUR,ZTOUR199704-200207

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030×2iAE11#199508-199704

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050×2iAE114,115;AE111..BZT199508-199704

main47771-32010×2iAE111..STOUR,ZTOUR199605-199704

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-32010×8iAE11#199508-199704

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010×2iAE11#199508-199704

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134×6iAE11#199508-199704

27 parts on this diagram · 2 diagrams in section
