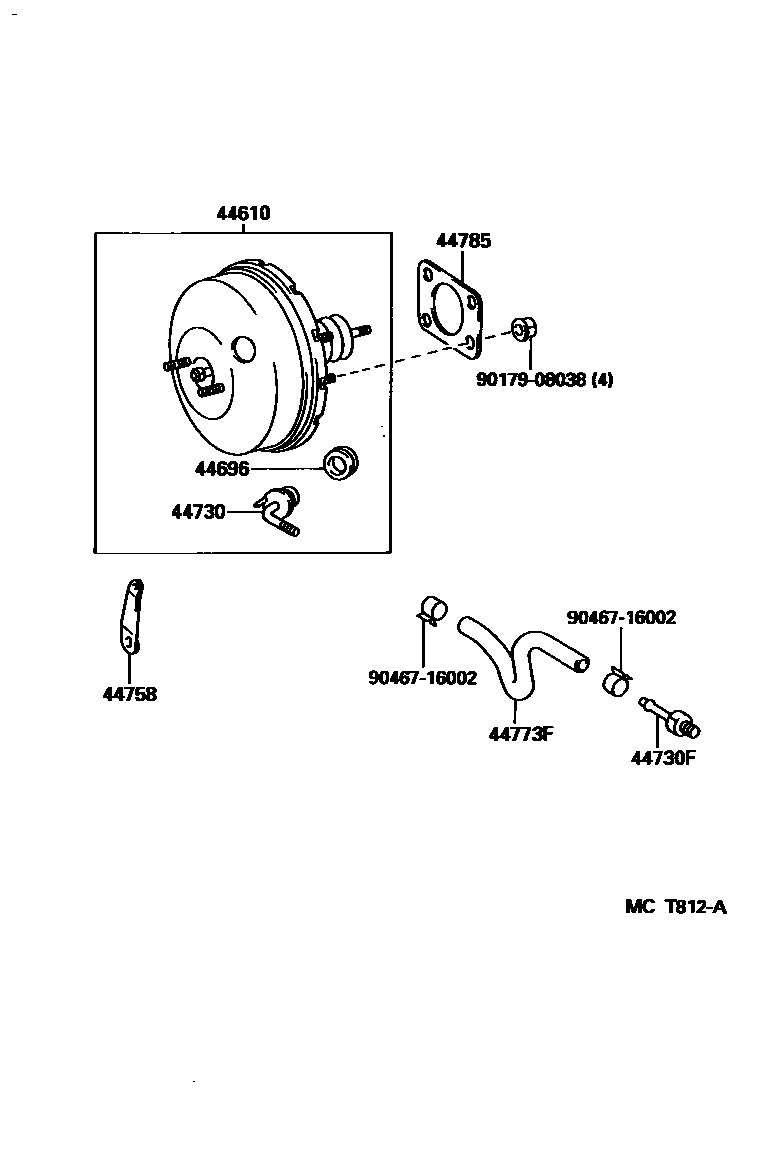

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-1A390iAE111..STOUR,ZTOUR199605-200207

main44610-1E230iAE111..BZT199605-200207

main44610-1E250iAE114,115199508-200207

44696GROMMET, CHECK VALVE

main90480-24439iAE111..STOUR,ZTOUR199605-200207

main90480-24517iAE114,115;AE111..BZT199508-200207

sub90480-24015

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12040iAE111..STOUR,ZTOUR199605-200207

main44730-12050iAE114,115;AE111..BZT199508-200207

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iAE11#..STOUR,VTOUR,ZTOUR199508-200207

main90405-09162iAE111..BZT199605-200207

44758BRACKET, VACUUM CHECK VALVE

main44758-12300iAE11#199508-200207

44773HOSE, VACUUM, NO.2

main44773-12631iAE111..BZT199605-200207

44773FHOSE, UNION TO CHECK VALVE

main44773-12600iAE11#..ROSSO,STOUR,VTOUR,ZTOUR199508-200207

main44773-12610iAE111..BZT199605-200207

44785GASKET, BRAKE BOOSTER

main44785-20020iAE11#199508-200207

9017908038

main90179-08038

9046716002

main90467-16002

10 parts on this diagram · 2 diagrams in section
