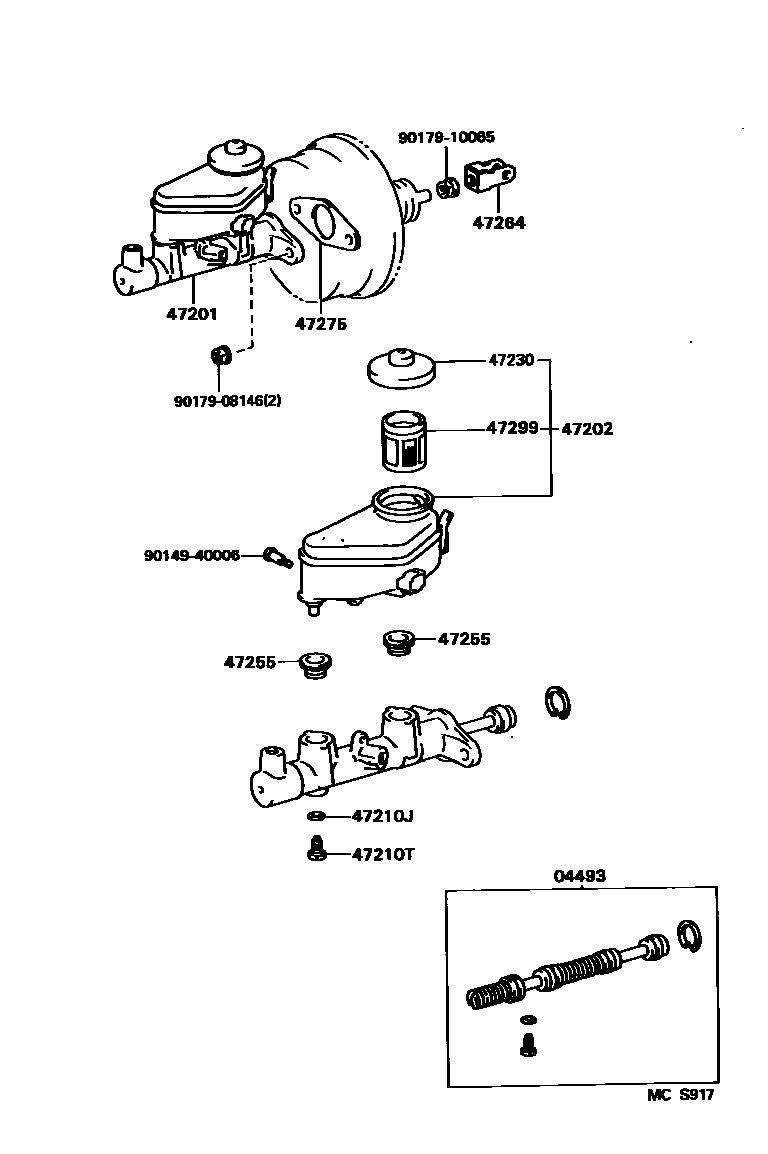

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-12200iAE11#199508-199605

main04493-16080iAE111..STOUR,ZTOUR199605-200207

main04493-32080iAE114,115;AE111..BZT199508-200207

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-1A030iAE11#199508-199605

main47201-1A050iAE111..STOUR,ZTOUR199605-200207

sub47201-1A410

main47201-1A060iAE114,115;AE111..BZT199508-200207

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-32060iAE11#199508-200207

sub47220-12180

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAE11#199508-200207

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iAE11#199508-200207

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iAE11#199508-200207

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iAE11#199508-200207

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-16020iAE114,115;AE111..BZT199508-199910

main47264-32020iAE11#199910-200207

main47264-33010iAE111..STOUR,ZTOUR199605-199910

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iAE11#199508-200207

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iAE11#199508-200207

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

13 parts on this diagram · 1 diagram in section
