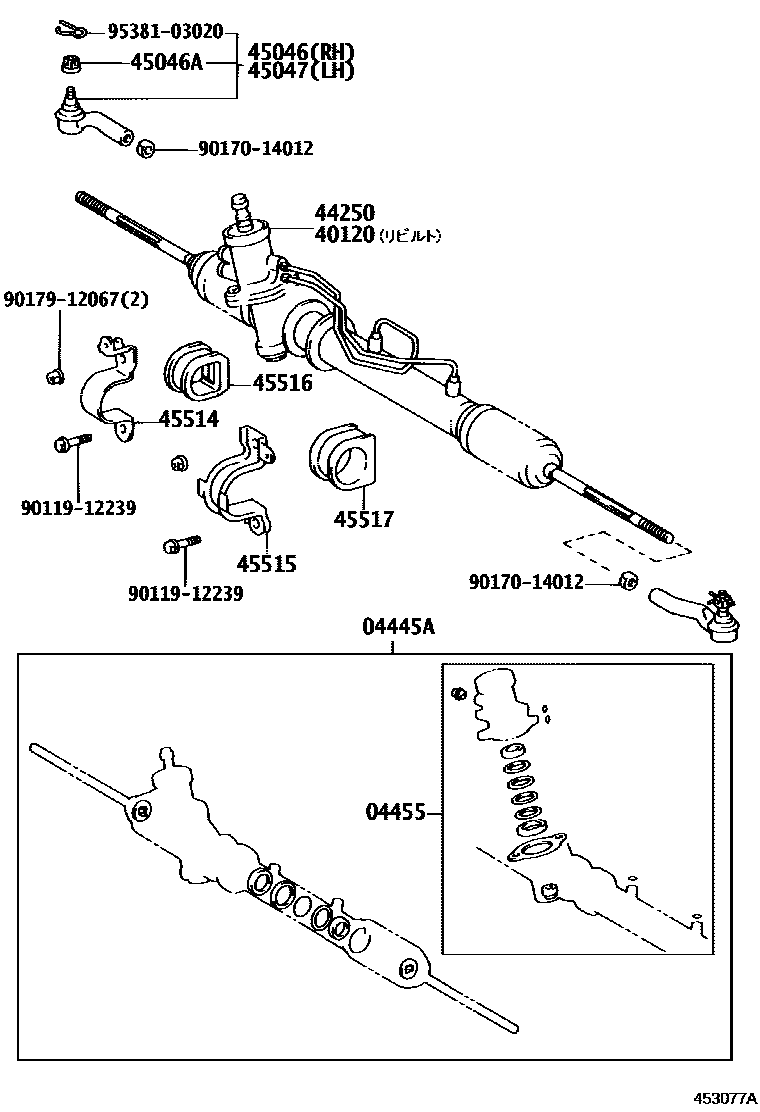

FRONT STEERING GEAR & LINK

0001 1 0002 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-12160iAE11#199508-199704

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-12210iAE11#199508-199704

sub04455-10030

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-12530iAE11#..ROSSO,STOUR,VTOUR,ZTOUR199704-200207

main40120-12550iAE111..BZT199704-200207

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-12530iAE11#..ROSSO,STOUR,VTOUR,ZTOUR199704-200207

main44250-12550iAE111..BZT199704-200207

45046END SUB-ASSY, TIE ROD, RH

main45046-29305iAE11#199508-199704

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAE11#199508-199704

45047END SUB-ASSY, TIE ROD, LH

main45046-29305iAE11#199508-199704

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12090iAE11#..STOUR,VTOUR,ZTOUR199508-199704

main45514-12110iAE111..BZT199605-199704

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-12170iAE11#199508-199704

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-12060iAE11#199508-199704

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12111iAE11#199508-199704

9011912239

main90119-12239

9017014012

main90170-14012

9017912067

main90179-12067

9538103020

main95381-03020

15 parts on this diagram · 3 diagrams in section
