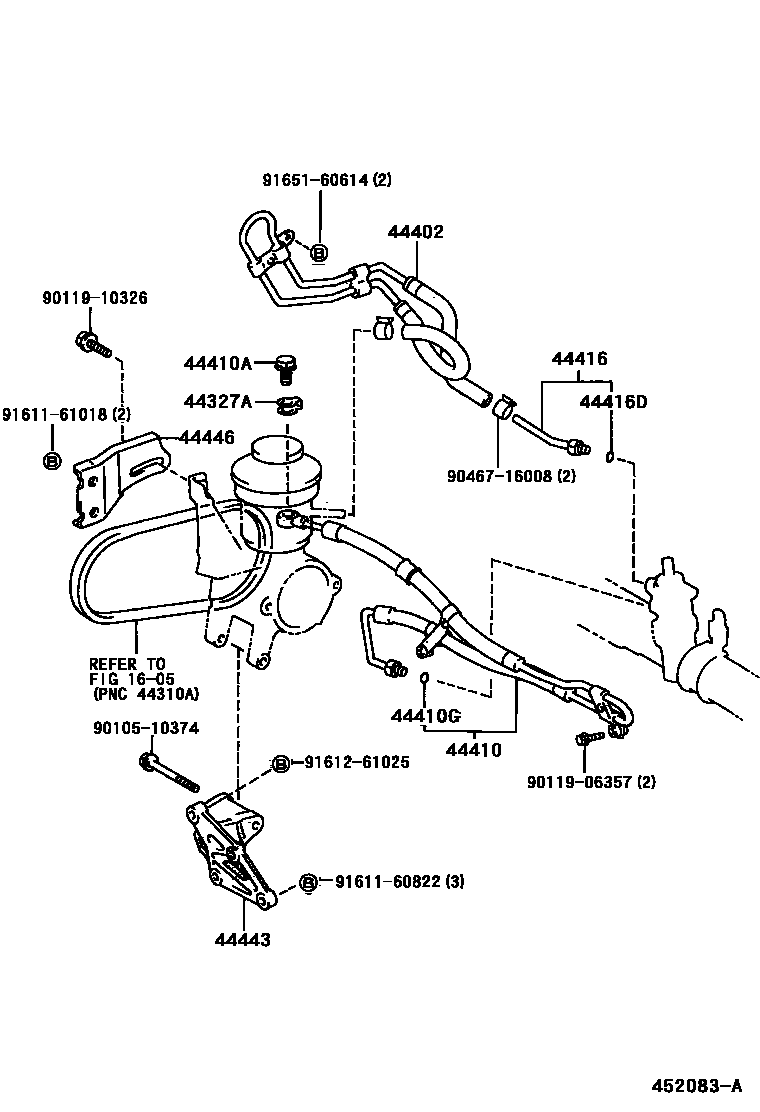

POWER STEERING TUBE

0001 1 0003 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAE11#..STOUR,VTOUR,ZTOUR199508-200207

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-12190iAE11#..STOUR,VTOUR,ZTOUR199508-199704

main44402-12220iAE11#..ROSSO,STOUR,VTOUR,ZTOUR199704-200207

44410TUBE ASSY, PRESSURE FEED

main44040-12150iAE111..BZT199605-200207

main44410-12371iAE11#..ROSSO,STOUR,VTOUR,ZTOUR199508-200207

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16012iAE11#..STOUR,VTOUR,ZTOUR199508-200207

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009iAE11#199508-200207

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-12220iAE11#199508-200207

44416DRING, O(FOR RETURN TUBE)

main90301-07009iAE11#199508-200207

44443BRACKET, PUMP

main44443-12090iAE111..BZT199605-200207

main44443-12100iAE11#..STOUR,VTOUR,ZTOUR199508-200207

44446STRUT, ADJUSTING

main44446-12060iAE111,114..STOUR,ZTOUR199508-200207

main44446-12090iAE115199508-200207

9010510374

main90105-10374

9011906357

main90119-06357

9011910326

main90119-10326

9046716008

main90467-16008

9161160822

main91611-60822

9161161018

main91611-61018

9161261025

main91612-61025

9165160614

main91651-60614

18 parts on this diagram · 2 diagrams in section
