TRANSFER ASSEMBLY & GASKET KIT

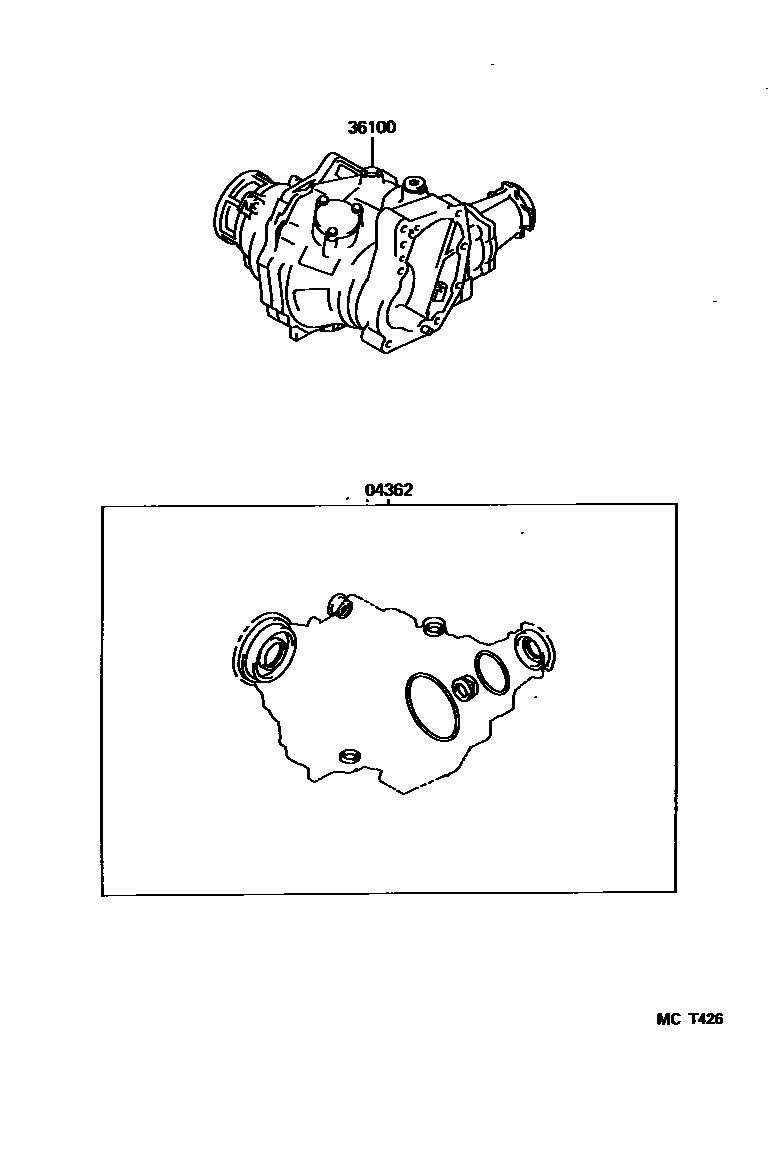

Parts diagram

04362GASKET KIT, TRANSFER OVERHAUL

main04362-12020i199508-200207

main04362-12030i199508-199605

main04362-12030i199605-200207

main04362-32020i199508-199605

36100TRANSFER ASSY

main36100-12010i199508-199605

main36100-12071i199508-200207

main36100-12080i199508-199605

main36100-12080i199605-200207

2 parts on this diagram · 3 diagrams in section
