FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

1701

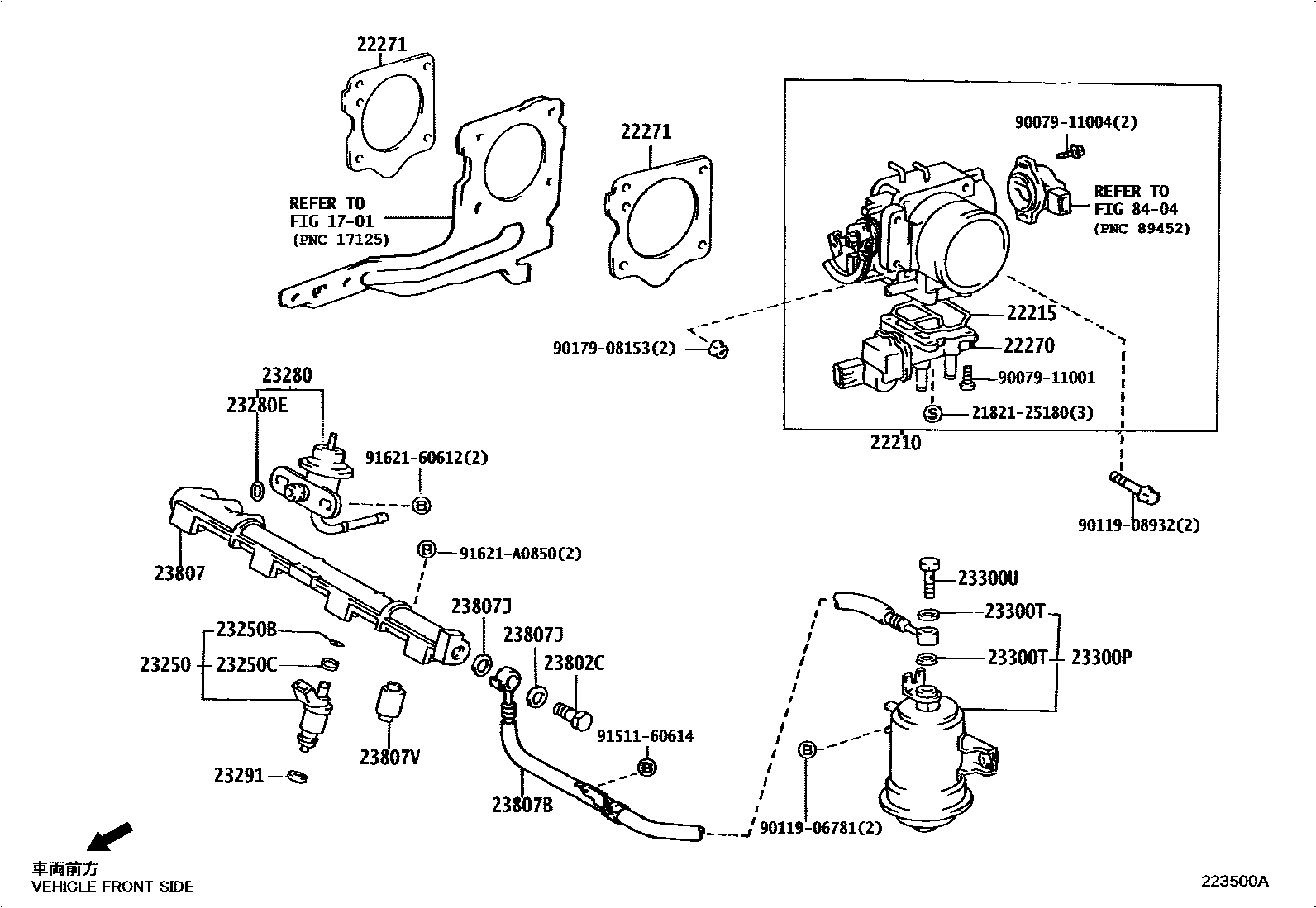

22210BODY ASSY, THROTTLE

main22210-15070i4AFE..AE111,114199508-199704

main22210-16761i4AGE..AE111199605-199804

main22210-16762i4AGE..AE111199804-199810

sub22210-16763

main22210-16763i4AGE..AE111199810-200207

main22210-16850i7AFE..AE115199508-200207

main22210-1A010i4AFE..AE111,114199704-200207

22215GASKET, THROTTLE BODY COVER

main22215-16760i4AGE..AE111199605-200207

main22215-74400i4AFE,7AFE..AE11#199508-200207

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-15010i4AFE..AE111,114199508-199704

main22270-16060i7AFE..AE115199508-200207

main22270-16070i4AGE..AE111199605-200207

main22270-16090i4AFE..AE111,114199704-200207

22271GASKET, THROTTLE BODY

main22271-15020i4AFE,7AFE..AE11#199508-200207

23250INJECTOR ASSY, FUEL

main23209-15040i4AFE..AE111,114199704-200207

main23209-16150i4AFE..AE111,114199508-199704

main23209-16160i7AFE..AE115199508-200207

main23209-19015i4AGE..AE111199605-200207

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i4AFE,7AFE..AE11#199508-199812

main90301-07024i4AFE,7AFE..AE11#199812-200207

main90301-14006i4AGE..AE111199605-200207

main90301-17007i4AGE..AE111199605-200207

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i4AFE,7AFE..AE11#199508-200207

23280REGULATOR ASSY, FUEL PRESSURE

main23280-15030i4AFE,7AFE..AE11#199508-200207

main23280-16160i4AGE..AE111199605-200207

sub23280-16170

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i4AFE,7AFE..AE11#199508-199812

main90301-07024i4AFE,7AFE..AE11#199812-200207

main90301-07037i4AGE..AE111199605-200207

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i4AFE,7AFE..AE11#199508-200207

main23291-75010i4AGE..AE111199605-200207

23300PFILTER, FUEL(FOR EFI)

main23300-19515i4A#,7AFE..AE11#199508-200207

23300TGASKET(FOR FUEL FILTER)

main90430-12026i4A#,7AFE..AE11#199508-200207

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i4AFE,7AFE..AE11#199508-200207

main90401-12097i4AGE..AE111199605-199709

main96341-11200i4AGE..AE111199605-199709

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-12097i4AFE,7AFE..AE11#199508-200207

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-15040i4AFE,7AFE..AE11#199508-200207

sub23814-15041

23807BHOSE, FUEL DELIVERY PIPE

main23271-15260i4AFE,7AFE..AE11#199508-200207

23807JGASKET, PIPE FUEL DELIVARY INLET

main90430-12026i4AFE,7AFE..AE11#199508-200207

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020i4AFE,7AFE..AE11#199508-200207

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007911001

main90079-11001

9007911004

main90079-11004

9011906781

main90119-06781

9011908932

main90119-08932

9017908153

main90179-08153

9151160614

main91511-60614

9162160612

main91621-60612

91621A0850

main91621-A0850

29 parts on this diagram · 5 diagrams in section
