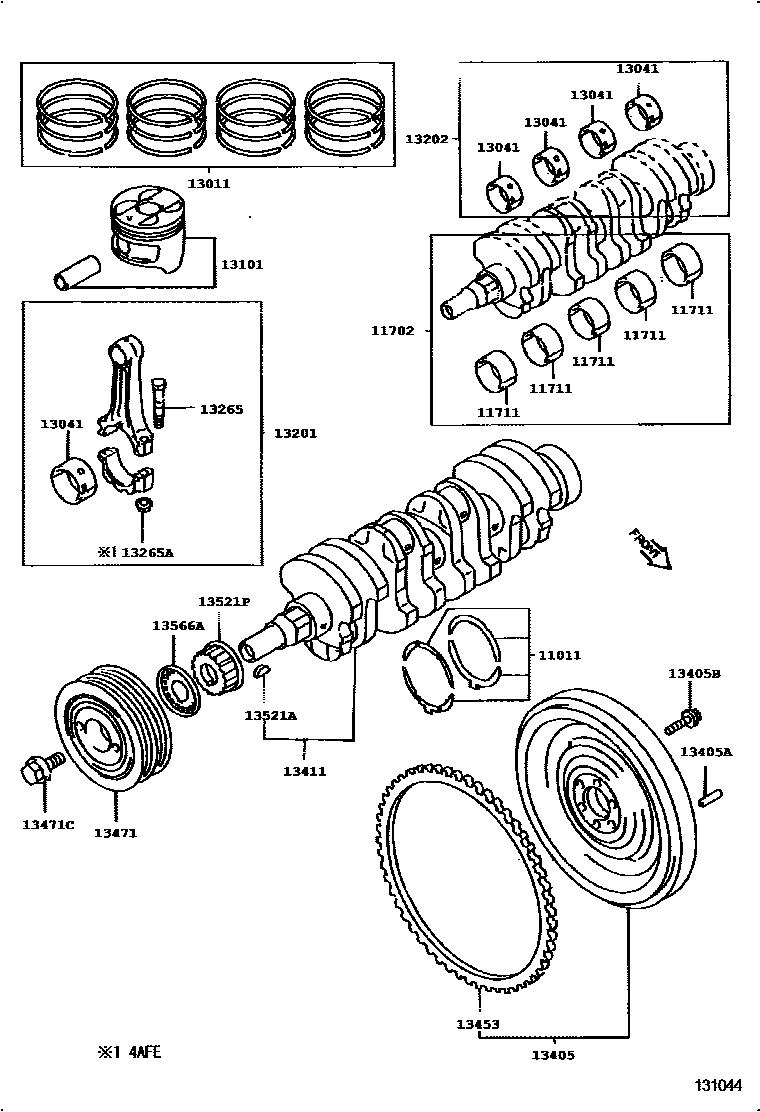

CRANKSHAFT & PISTON

0001 1 0002 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-15010i4A#,7AFE..AE11#¥2,030199508-199712

sub11011-15020¥2,070

main11011-15020i4A#,7AFE..AE11#¥2,070199712-200207

sub11011-15021¥2,070

11702BEARING SET, CRANKSHAFT

main11704-16010i4A#,7AFE..AE11#¥22,300199508-200207

11711BEARING, CRANKSHAFT

main11701-16010-01i4A#,7AFE..AE11#199508-200207

MARK 1

main11701-16010-02i4A#,7AFE..AE11#199508-200207

MARK 2

main11701-16010-03i4A#,7AFE..AE11#199508-200207

MARK 3

main11701-16010-04i4A#,7AFE..AE11#199508-200207

MARK 4

main11701-16010-05i4A#,7AFE..AE11#199508-200207

MARK 5

13011RING SET, PISTON

main13011-16300i4AFE,7AFE..AE11#¥17,000199508-200207

main13011-16340i4AFE..AE111,114¥10,700199704-200207

main13011-16350i4AGE..AE111¥16,900200004-200207

main13011-16360i4AGE..AE111¥16,900199605-200004

sub13011-16350¥16,900

main13013-16300i4AFE,7AFE..AE11#¥17,100199508-200207

main13013-16340i4AFE..AE111,114¥17,000199704-200207

main13013-16350i4AGE..AE111¥20,200200004-200207

main13013-16360i4AGE..AE111¥20,200199605-200004

sub13013-16350¥20,200

13041BEARING, CONNECTING ROD

main13041-15030-01i4AFE..AE111,114199508-200207

MARK 1

sub13041-15031¥2,500

main13041-15030-02i4AFE..AE111,114199508-200207

MARK 2

sub13041-15031¥2,500

main13041-15030-03i4AFE..AE111,114199508-200207

MARK 3

sub13041-15031¥2,500

main13041-16090-01i7AFE..AE115199508-200207

MARK 1

main13041-16090-02i7AFE..AE115199508-200207

MARK 2

main13041-16090-03i7AFE..AE115199508-200207

MARK 3

main13041-16110-01i4AGE..AE111199605-200207

MARK 1

main13041-16110-02i4AGE..AE111199605-200207

MARK 2

main13041-16110-03i4AGE..AE111199605-200207

MARK 3

13101PISTON SUB-ASSY, W/PIN

main13101-16160-01i4AFE..AE111,114199508-200207

main13101-16160-02i4AFE..AE111,114199508-200207

main13101-16160-03i4AFE..AE111,114199508-200207

main13101-16190-01i7AFE..AE115199508-200207

main13101-16190-02i7AFE..AE115199508-200207

main13101-16190-03i7AFE..AE115199508-200207

main13101-16220-01i4AGE..AE111199605-200207

main13101-16220-02i4AGE..AE111199605-200207

main13101-16220-03i4AGE..AE111199605-200207

main13103-16160i4AFE..AE111,114¥7,100199508-200207

main13103-16190i7AFE..AE115¥7,100199508-200207

main13103-16220i4AGE..AE111¥8,500199605-200207

13201ROD SUB-ASSY, CONNECTING

main13201-19135i4AFE..AE111,114¥9,200199508-200207

sub13201-19176¥9,100

main13201-19145i7AFE..AE115¥15,500199508-200207

main13201-19155i4AGE..AE111¥11,900199605-200207

13202BEARING SET, CONNECTING ROD

main13204-15030i4AFE..AE111,114¥12,400199508-200207

sub13204-15031¥13,000

main13204-16090i7AFE..AE115¥10,700199508-200207

main13204-16110i4AGE..AE111¥10,300199605-200207

13265BOLT, CONNECTING ROD

main13265-15030i4AFE..AE111,114¥480199508-200207

main13265-16030i4AGE..AE111¥500199605-200207

main13265-16050i7AFE..AE115¥480199508-200207

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-09008i4A#..AE111,114¥160199508-200207

13405FLYWHEEL SUB-ASSY

main13405-15090i4AFE..AE111..5F¥23,900199605-200207

main13405-16070i4AFE,7AFE..AE114,115..5F¥21,900199508-200207

main13405-16110i4AGE..AE111..6F¥23,800199605-200207

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120i4A#,7AFE..AE11#..MTM¥140199508-200207

13405BBOLT, FLYWHEEL SETTING

main90105-10042i4AFE,7AFE..AE11#..5F¥110199508-200207

main90105-10076i4AGE..AE111..5F¥350199605-200207

13411CRANKSHAFT

main13401-16020i4AGE..AE111¥90,100199605-200207

main13411-16900i4AFE..AE111,114¥86,000199508-200207

main13411-16903i7AFE..AE115¥92,800199508-200207

13453GEAR, FLYWHEEL RING

main13453-10010i4A#,7AFE..AE11#..5F¥4,560199508-200207

13471PULLEY, CRANKSHAFT

main13470-16100i4AFE,7AFE..AE11#¥24,700199508-200207

main13470-16120i4AGE..AE111¥21,700199605-200207

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12127i4AGE..AE111¥240199605-200207

main90119-12230i4AFE,7AFE..AE11#¥510199508-199701

sub90119-12314¥390

main90119-12314i4AFE,7AFE..AE11#¥390199701-200207

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005i4A#,7AFE..AE11#¥110199508-200207

13521PPULLEY, CRANKSHAFT TIMING

main13521-15020i4AFE,7AFE..AE11#¥2,780199508-200207

main13521-16060i4AGE..AE111¥2,320199605-200207

13566AGUIDE, TIMING BELT

main13566-15010i4AGE..AE111¥210199605-200207

main13566-15020i4AFE,7AFE..AE11#¥630199508-200207
