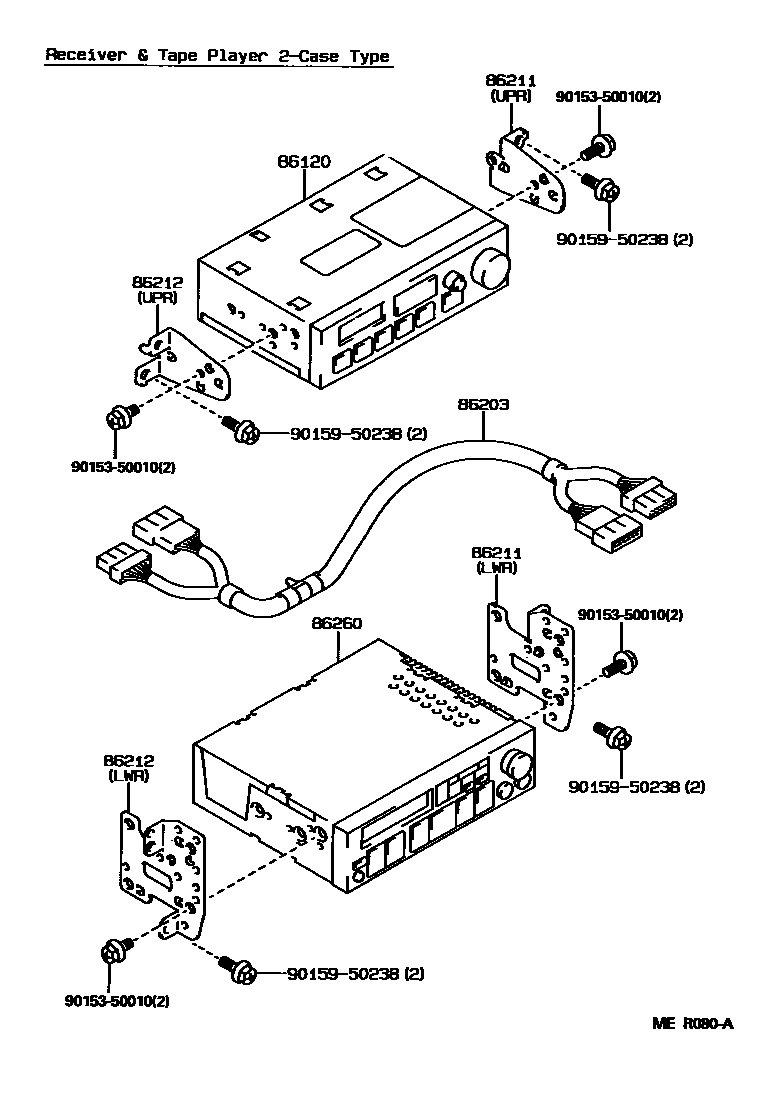

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1���� ����� ���� 0003 1

86120RECEIVER ASSY, RADIO

main86120-12550iAE95..AV1,RVS199009-199108

main86120-12590iAE95..AV1,RVS199009-199108

main86120-12660iAE95..AV2199009-199308

main86120-12680iAE95199009-199508

main86120-12870iAE95..AV1,RVS199108-199508

main86120-13010iAE95..AV2,RVS199009-199508

main86120-13020iAE95..RVS199308-199311

main86120-1A100iAE95..AV2199308-199508

86203WIRE, RADIO

main86203-12100iAE95..AV2199009-199508

main86203-12230iAE95199009-199508

main86203-12240iAE95..AV2,RVS199009-199508

main86203-12250iAE95..AV1199009-199508

86211BRACKET, RADIO, NO.1

main86211-12210iAE95..AV1199009-199508

main86211-12220iAE95199009-199508

86212BRACKET, RADIO, NO.2

main86212-12190iAE95..AV1199009-199508

main86212-12200iAE95199009-199508

86260TAPE PLAYER ASSY

main86260-12180iAE95199009-199508

main86260-14290iAE95199009-199508

main86260-19105iAE95199009-199508

main86260-19115iAE95..AV1,RVS199009-199508

main86260-19125iAE95..AV2,RVS199009-199508

main86260-19135iAE95..AV2,RVS199009-199508

main86260-19145iAE95199009-199508

main86260-19155iAE95..AV2,RVS199009-199508

main86260-19165iAE95..AV2,RVS199009-199508

main86260-19175iAE95..AV1,RVS199009-199508

9015350010

main90153-50010

9015950238

main90159-50238

7 parts on this diagram · 3 diagrams in section
