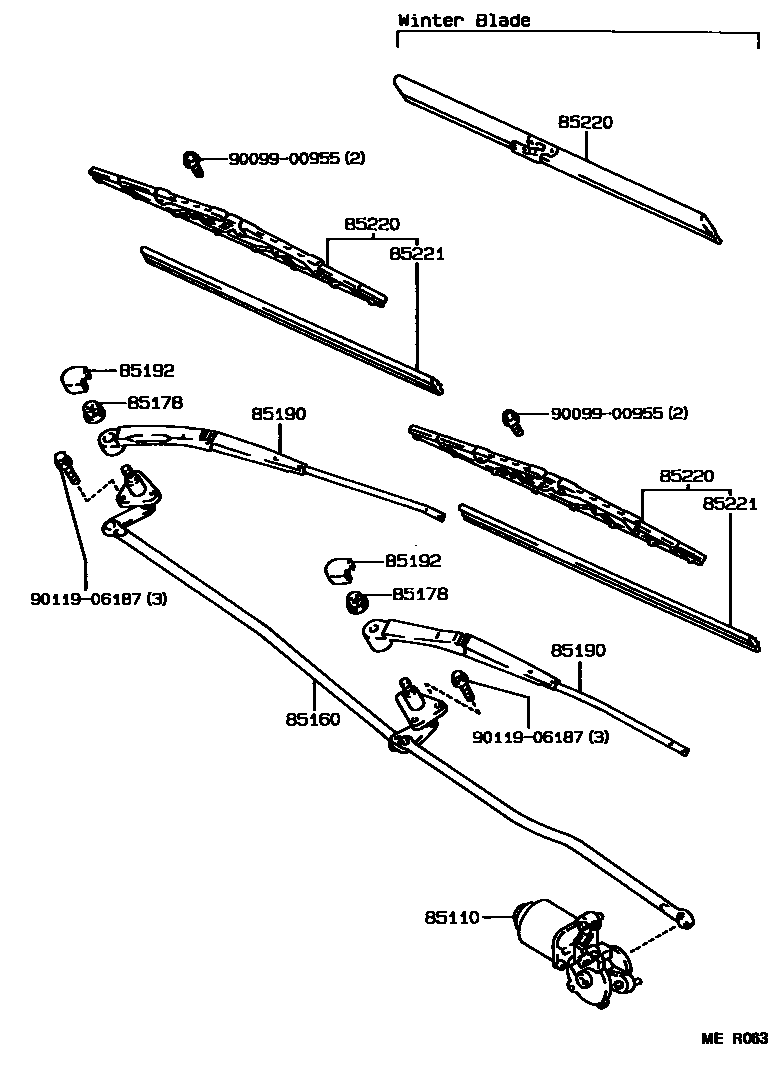

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12622iAE95199009-199508

sub85110-12682

main85110-12682iAE95199009-199508

85160LINK ASSY, WINDSHIELD WIPER

main85160-12510iAE95199009-199508

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113iAE95199009-199508

85190ARM ASSY, WINDSHIELD WIPER

main85190-12802iAE95199009-199011

sub85190-12803

main85190-12803iAE95199011-199508

main85210-12242iAE95199009-199011

sub85210-12243

main85210-12243iAE95199011-199508

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iAE95199108-199508

PLANT NO.A3#,M12,K21

main85192-12800iAE95199009-199108

main85292-12020iAE95199108-199508

PLANT NO.B11

85220BLADE ASSY, WINDSHIELD WIPER

main85212-12290iAE95199009-199508

main85222-12700iAE95199009-199508

main85291-16010iAE95199009-199508

main85291-32030iAE95199009-199508

85221BLADE, WINDSHIELD WIPER

main85213-12280iAE95199011-199508

sub85214-24H90

main85213-17040iAE95199009-199011

sub85213-12280

main85223-12690iAE95199011-199508

sub85221-40040

main85223-22700iAE95199009-199011

sub85221-40040

9009900955

main90099-00955

9011906187

main90119-06187

9 parts on this diagram · 1 diagram in section
