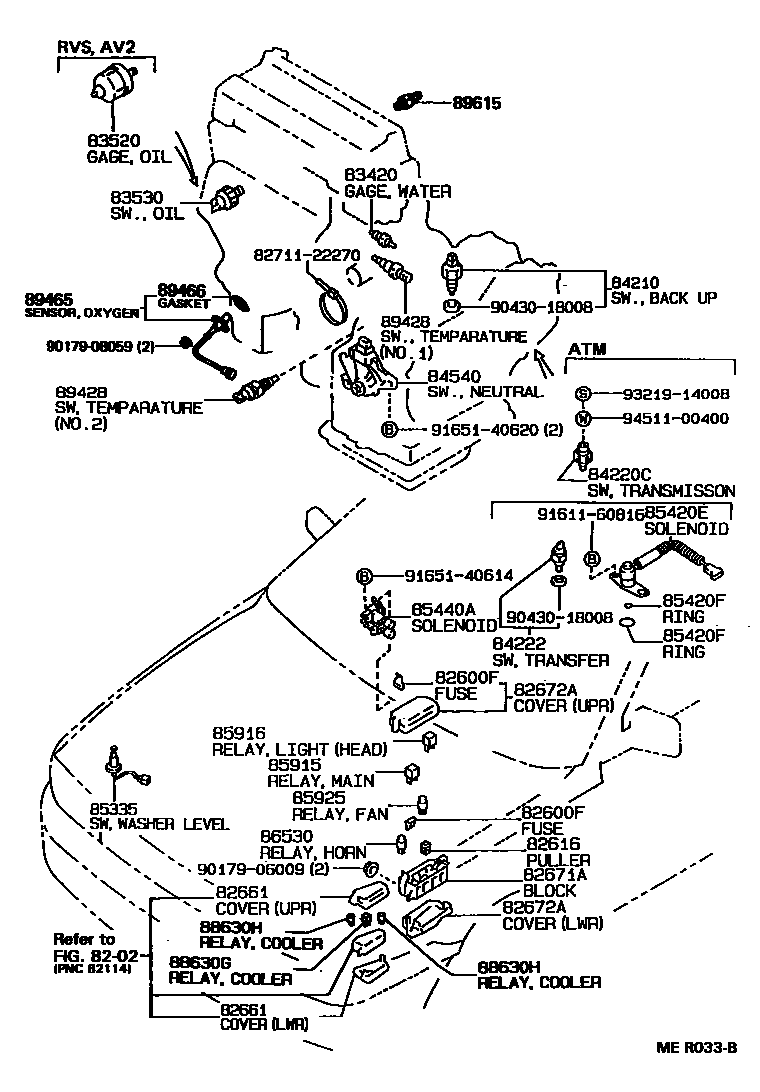

SWITCH & RELAY & COMPUTER
8202
82600FFUSE, FUSE BLOCK
82616PULLER, FUSE
82671ABLOCK, JUNCTION
82672ACOVER, JUNCTION BLOCK
83420GAGE ASSY, WATER TEMPERATURE SENDER
83520GAGE ASSY,OIL PRESSURE SENDER
sub83520-35030
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
sub83530-60050
84210SWITCH ASSY, BACK-UP LAMP
sub84210-52050
84220CSWITCH ASSY, TRANSMISSION POSITION INDICATOR
84222SWITCH, TRANSFER INDICATOR, NO.1
84540SWITCH ASSY, NEUTRAL START
85335SWITCH ASSY, WASHER LEVEL WARNING
85420ESOLENOID ASSY, TRANSMISSION
85420FRING, O(FOR TRANSMISSION SOLENOID)
ID=10
ID=23
85440ASOLENOID ASSY, FOUR WHEEL DRIVE CONTROL
85915RELAY, MAIN
85916RELAY, LIGHT CONTROL
NIPPONDENSO,TAIL
HEAD
85925RELAY, RADIATOR FAN
88630GRELAY ASSY, COOLER
88630HRELAY ASSY, COOLER
89465SENSOR, OXYGEN
89466GASKET, OXYGEN SENSOR
89615SENSOR, KNOCK CONTROL
MARK=71
MARK=81
8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22270
9017906009
main90179-06009
9017908059
main90179-08059
9043018008
main90430-18008
9161160816
main91611-60816
9165140614
main91651-40614
9165140620
main91651-40620
9321914008
main93219-14008
9451100400
main94511-00400
36 parts on this diagram · 4 diagrams in section
