FRONT SEAT & SEAT TRACK

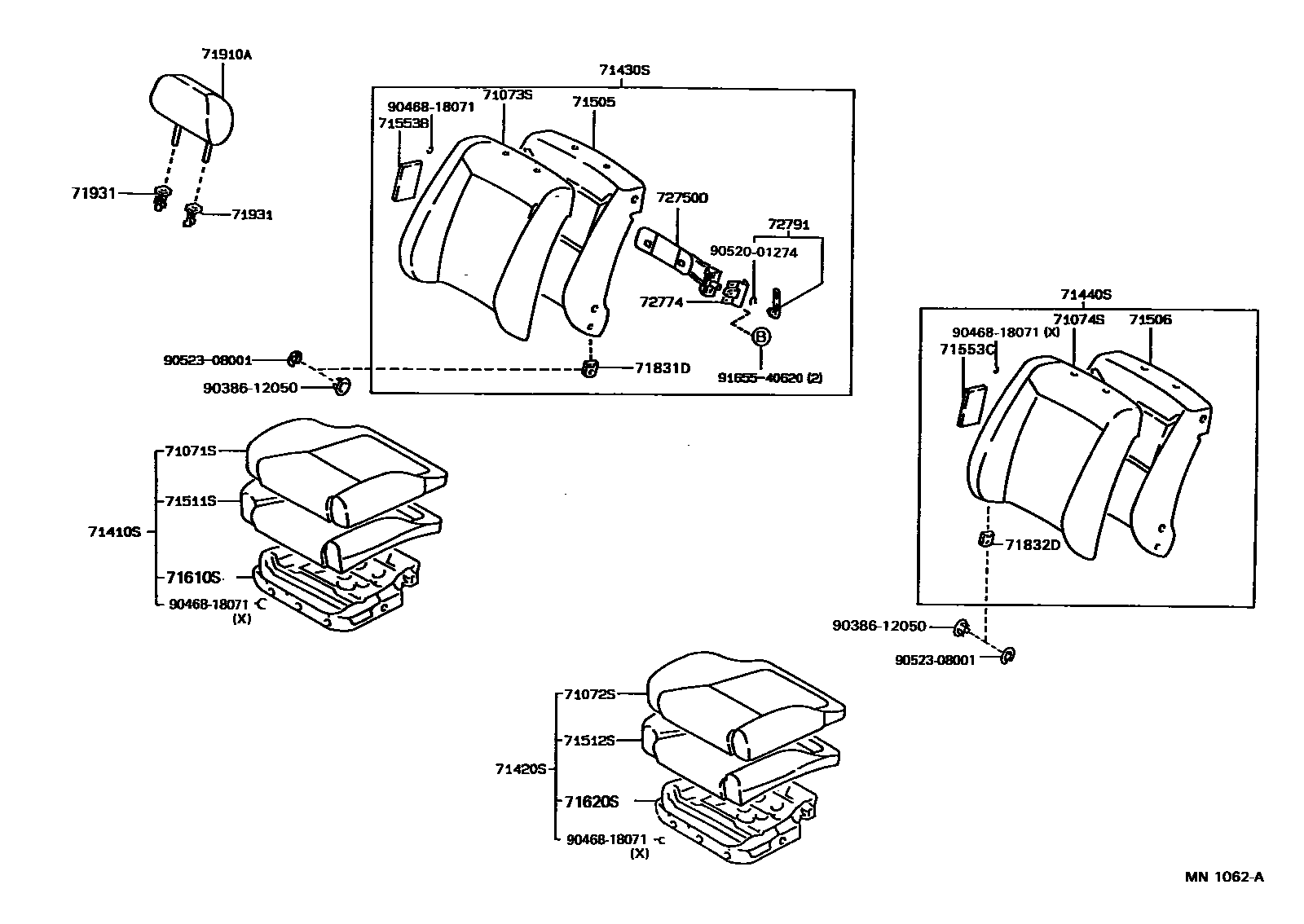

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-1H601-03i199009-199508
SHADOW GRAY,TRIM1#
main71071-1H601-04i199009-199308
DARK BLUE,TRIM8#
main71071-1H611-03i199009-199308
SHADOW GRAY,TRIM1#
main71071-1H611-04i199009-199308
DARK BLUE,TRIM8#
main71071-1H612-B0i199308-199508
SHADOW GRAY,TRIM1#
main71071-1H632-03i199009-199308
main71071-1H632-04i199009-199308
main71071-1H661-03i199009-199508
SHADOW GRAY,TRIM1#
main71071-1H661-04i199009-199308
DARK BLUE,TRIM8#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-1H601-03i199009-199508
SHADOW GRAY,TRIM1#
main71071-1H601-04i199009-199308
DARK BLUE,TRIM8#
main71071-1H611-03i199009-199308
SHADOW GRAY,TRIM1#
main71071-1H611-04i199009-199308
DARK BLUE,TRIM8#
main71071-1H612-B0i199308-199508
SHADOW GRAY,TRIM1#
main71071-1H632-03i199009-199308
main71071-1H632-04i199009-199308
main71071-1H661-03i199009-199508
SHADOW GRAY,TRIM1#
main71071-1H661-04i199009-199308
DARK BLUE,TRIM8#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-1H171-03i199009-199508
SHADOW GRAY,TRIM1#
main71073-1H171-04i199009-199308
DARK BLUE,TRIM8#
main71073-1H521-03i199009-199508
SHADOW GRAY,TRIM1#
main71073-1H521-04i199009-199308
DARK BLUE,TRIM8#
main71073-1H531-03i199009-199308
SHADOW GRAY,TRIM1#
main71073-1H531-04i199009-199308
DARK BLUE,TRIM8#
main71073-1H532-B0i199308-199508
SHADOW GRAY,TRIM1#
main71073-1H552-03i199009-199308
main71073-1H552-04i199009-199308
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-1E102-03i199009-199308
main71074-1E102-04i199009-199308
main71074-1E131-03i199009-199508
SHADOW GRAY,TRIM1#
main71074-1E131-04i199009-199308
DARK BLUE,TRIM8#
main71074-1E481-03i199009-199508
SHADOW GRAY,TRIM1#
main71074-1E481-04i199009-199308
DARK BLUE,TRIM8#
main71074-1E491-03i199009-199308
SHADOW GRAY,TRIM1#
main71074-1E491-04i199009-199308
DARK BLUE,TRIM8#
main71074-1E492-B0i199308-199508
SHADOW GRAY,TRIM1#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-1H542-03i199009-199308
main71410-1H542-04i199009-199308
main71410-1H601-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71410-1H601-04i199009-199308
***,DARK BLUE,TRIM8#
main71410-1K151-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71410-1K151-04i199009-199308
***,DARK BLUE,TRIM8#
main71410-1K341-03i199009-199308
***,SHADOW GRAY,TRIM1#
main71410-1K341-04i199009-199308
***,DARK BLUE,TRIM8#
main71410-1K342-B0i199308-199508
***,SHADOW GRAY,TRIM1#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71410-1H542-03i199009-199308
main71410-1H542-04i199009-199308
main71410-1H601-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71410-1H601-04i199009-199308
***,DARK BLUE,TRIM8#
main71410-1K151-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71410-1K151-04i199009-199308
***,DARK BLUE,TRIM8#
main71410-1K341-03i199009-199308
***,SHADOW GRAY,TRIM1#
main71410-1K341-04i199009-199308
***,DARK BLUE,TRIM8#
main71410-1K342-B0i199308-199508
***,SHADOW GRAY,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-13200-03i199009-199308
***,SHADOW GRAY,TRIM1#
main71430-13200-04i199009-199308
***,DARK BLUE,TRIM8#
main71430-13201-B0i199308-199508
***,SHADOW GRAY,TRIM1#
main71430-1H481-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71430-1H481-04i199009-199308
***,DARK BLUE,TRIM8#
main71430-1H872-03i199009-199308
main71430-1H872-04i199009-199308
main71430-1H881-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71430-1H881-04i199009-199308
***,DARK BLUE,TRIM8#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-1H421-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71440-1H421-04i199009-199308
***,DARK BLUE,TRIM8#
main71440-1H791-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71440-1H791-04i199009-199308
***,DARK BLUE,TRIM8#
main71440-1H801-03i199009-199308
***,SHADOW GRAY,TRIM1#
main71440-1H801-04i199009-199308
***,DARK BLUE,TRIM8#
main71440-1H802-B0i199308-199508
***,SHADOW GRAY,TRIM1#
main71440-1H822-03i199009-199308
main71440-1H822-04i199009-199308
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-12030i199009-199508
main71505-12050i199009-199508
main71505-12060i199009-199508
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71506-12040i199009-199508
main71506-12050i199009-199508
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-12660i199009-199508
main71511-12680i199009-199508
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-12660i199009-199508
main71511-12680i199009-199508
71553BPAD, FRONT SEATBACK, B
main71553-12200i199009-199508
71553CPAD, FRONT SEATBACK, C
main71553-12200i199009-199508
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-12320i199009-199508
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-12320i199009-199508
71831DCOVER, FRONT SEAT HINGE, RH
main71831-12010i199009-199508
71832DCOVER, FRONT SEAT HINGE, LH
main71831-12010i199009-199508
71910AHEADREST ASSY, FRONT SEAT
main71910-12731-01i199009-199508
BLACK,TRIM1#
main71910-12731-04i199009-199308
DARK BLUE,TRIM8#
main71910-12760-03i199009-199508
SHADOW GRAY,TRIM1#
main71910-12760-04i199009-199308
DARK BLUE,TRIM8#
main71910-1A061-03i199009-199508
SHADOW GRAY,TRIM1#
main71910-1A061-04i199009-199308
DARK BLUE,TRIM8#
71931SUPPORT, FRONT SEAT HEADREST
main71930-12050-03i199009-199508
sub71930-12050
main71930-12050-04i199009-199308
sub71930-12050
main71931-12010-03i199009-199508
sub71931-12010
main71931-12010-04i199009-199308
sub71931-12010
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-12060i199009-199508
72774PROTECTOR, LUMBAR SUPPORT SPRING
main72774-12020i199009-199508
72791LEVER, LUMBAR SUPPORT
main72791-20030-03i199009-199406
SHADOW GRAY,TRIM1#
sub72791-20030
main72791-20030-14i199009-199308
DARK BLUE,TRIM8#
sub72791-20030
main72791-20050-B2i199406-199508
SHADOW GRAY,TRIM1#
sub72791-20050
9038612050
main90386-12050
9046818071
main90468-18071
9052001274
main90520-01274
9052308001
main90523-08001
9165540620
main91655-40620

28 parts on this diagram · 2 diagrams in section
