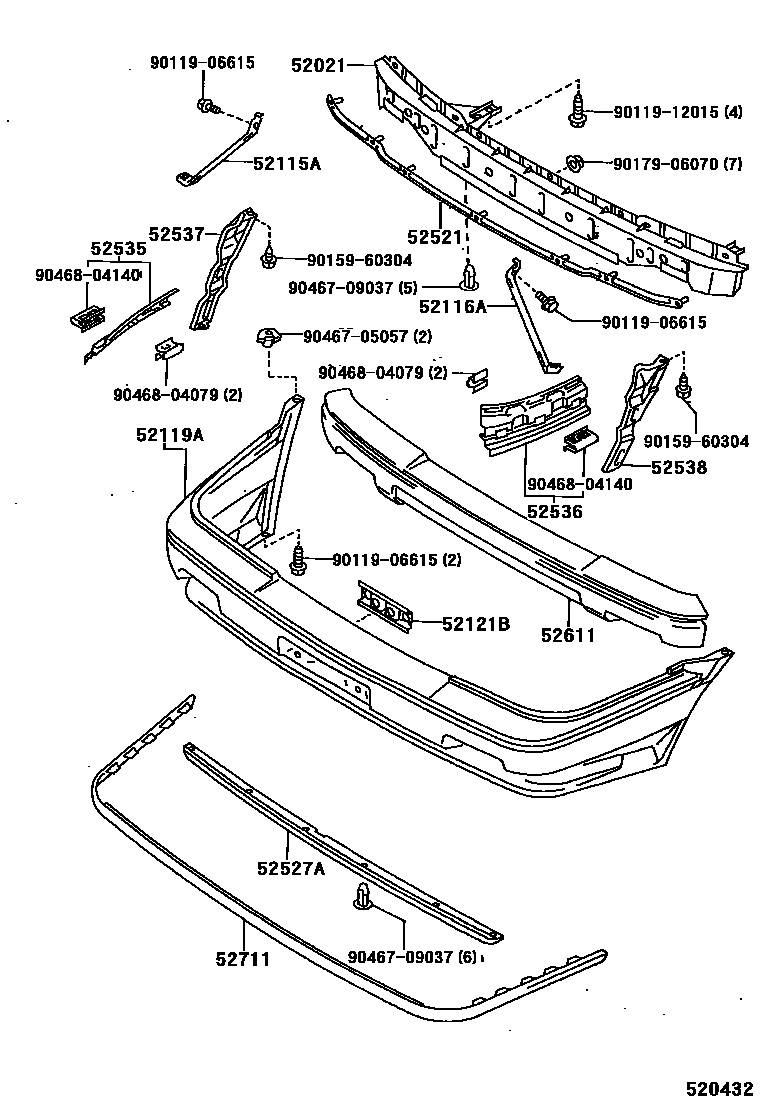

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
BLACK
BLACK M,23S
SILVER GRAY M,20G
DARK BLUE MICA M,25M
GRAYISH GREEN M,6K6
SUPER WHITE 2,040
MEDIUM KHAKI M,22S
10TH ANNIVERSARY,SILVER MICA ME,25W
LIGHT BEIGE,27T
GRAYISH GREEN ME,20W ,6M3
GRAYISH GREEN ME,6M3
PASTEL AQUA ME.,21W
DARK BLUE MICA M,26T
52121BBRACKET, FRONT LICENCE PLATE MOUNTING
52521RETAINER, FRONT BUMPER, UPPER CENTER
52527ARETAINER, FRONT BUMPER, LOWER CENTER NO.2
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52537RETAINER, FRONT BUMPER END, RH
52538RETAINER, FRONT BUMPER END, LH
52611ABSORBER, FRONT BUMPER ENERGY
52711MOULDING, FRONT BUMPER
9011906615
main90119-06615
9011912015
main90119-12015
9015960304
main90159-60304
9017906070
main90179-06070
9046705057
main90467-05057
9046709037
main90467-09037
9046804079
main90468-04079
9046804140
main90468-04140
21 parts on this diagram · 1 diagram in section
