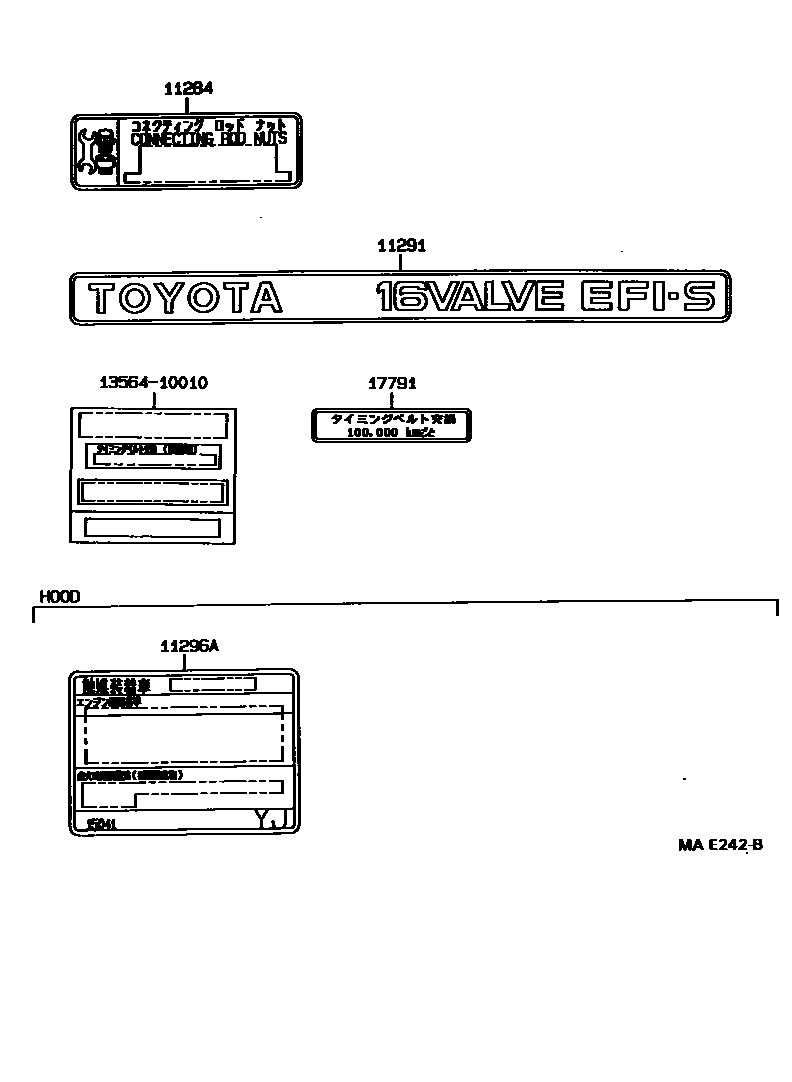

CAUTION PLATE & NAME PLATE (ENGINE)

11284PLATE, ENGINE BOLT INFORMATION

main11284-15010i4AFHE..AE95199201-199401

11291PLATE, ENGINE NAME

main11291-15150i4AFHE..AE95199009-199508

11296ALABEL, ENGINE SERVICE INFORMATION

main11296-15041i4AFHE..AE95199009-199102

main11296-15042i4AFHE..AE95199102-199403

main11296-15043i4AFHE..AE95199403-199508

17791LABEL, MAINTENANCE INFORMATION

main17791-15010i4AFHE..AE95199212-199508

main17791-55010i4AFHE..AE95199203-199204

main17791-74040i4AFHE..AE95199204-199212

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

5 parts on this diagram · 1 diagram in section
