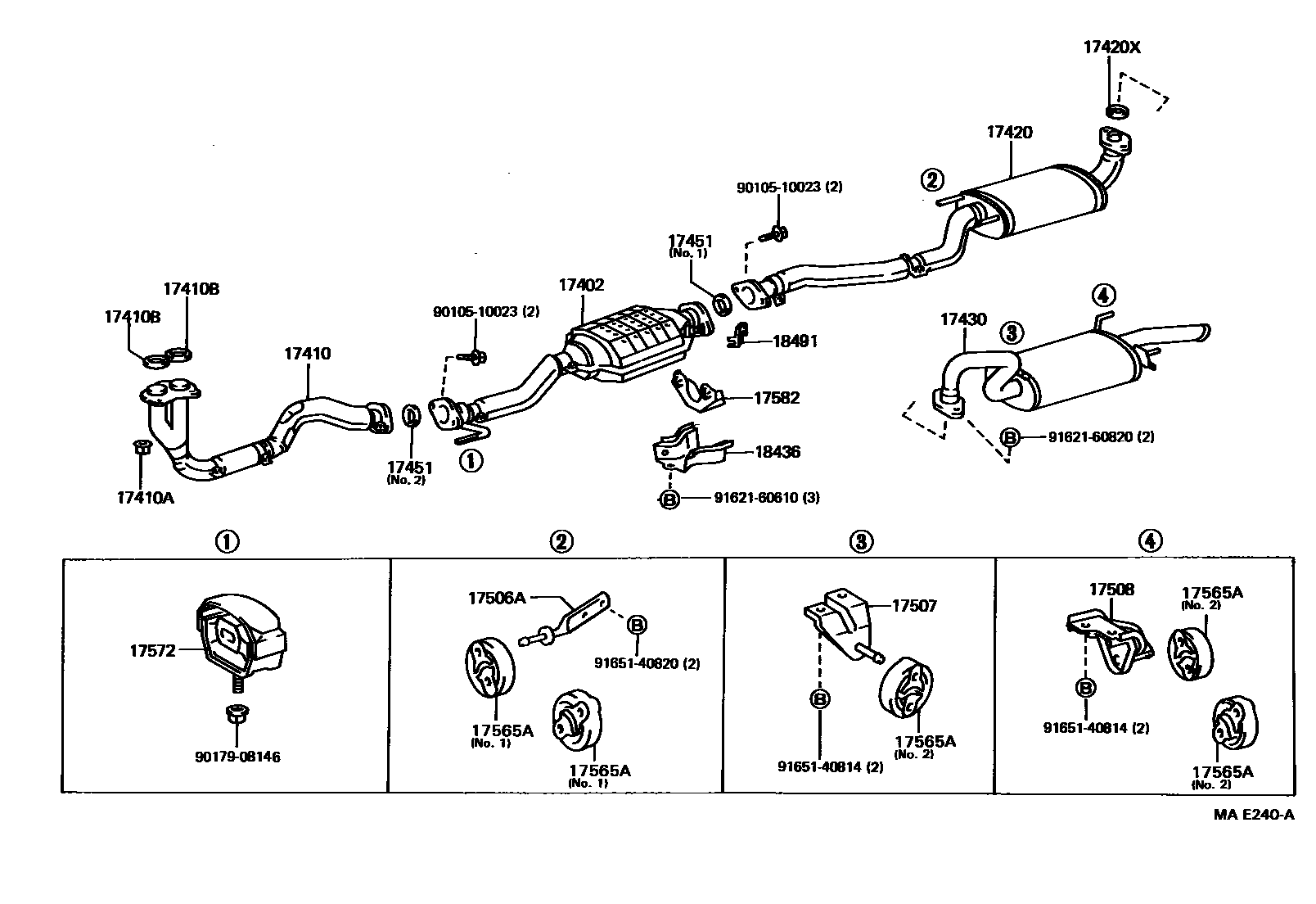

EXHAUST PIPE
17402PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17582BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER
18436PROTECTOR, MONOLITHIC CONVERTER, NO.1
18491FLANGE, THERMOSENSOR INLET
9010510023
main90105-10023
9017908146
main90179-08146
9162160610
main91621-60610
9162160820
main91621-60820
9165140814
main91651-40814
9165140820
main91651-40820
22 parts on this diagram · 1 diagram in section
