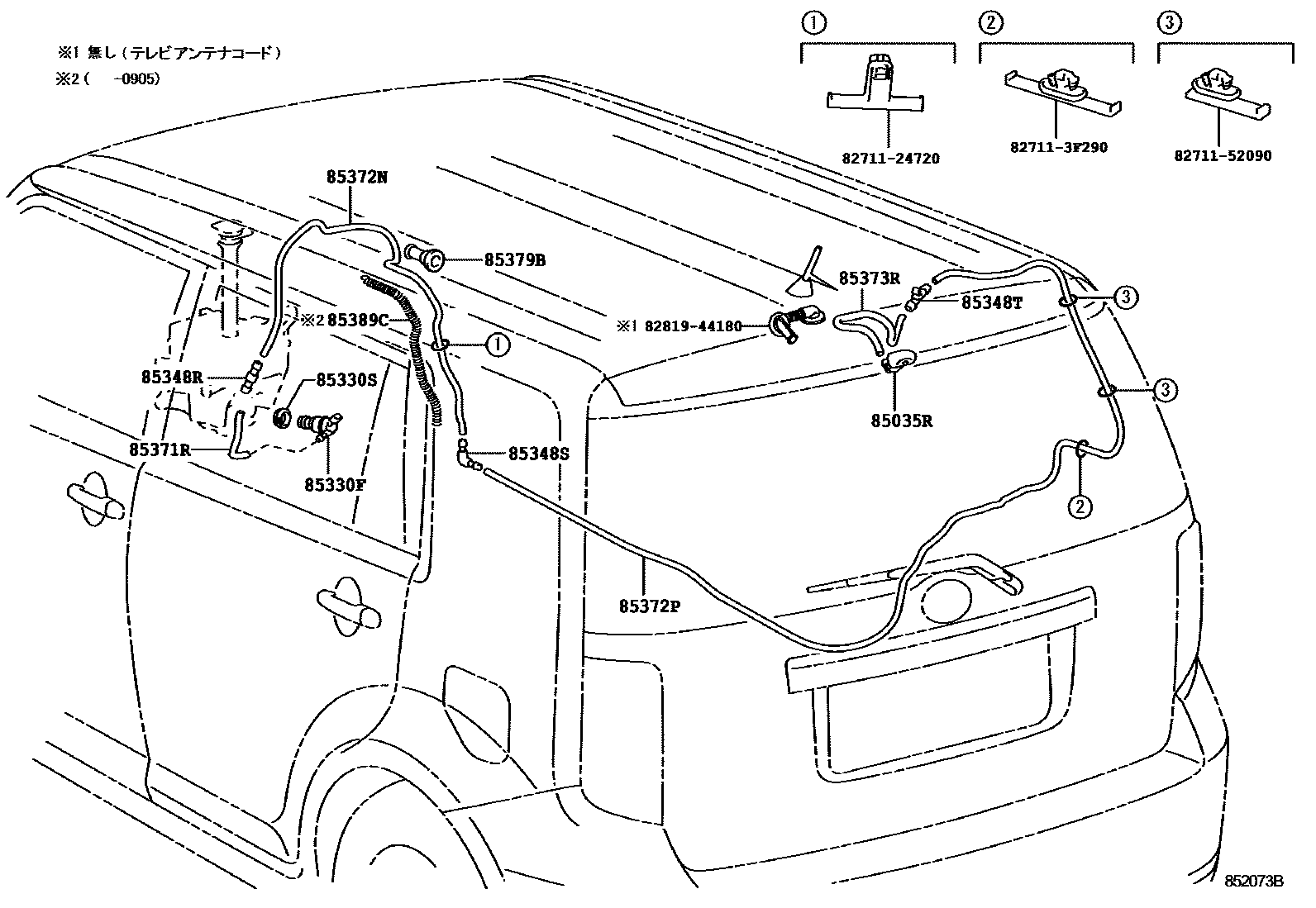

REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-12090iNZE151,ZRE15#200710-200912

sub85391-20110

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160iNZE151,ZRE15#200710-201512

85330SBUSH, REAR WASHER JAR

main85336-60300iNZE151,ZRE15#200710-201512

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-10260iNZE151,ZRE15#200710-200912

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iNZE151,ZRE15#200710-200912

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-20800iNZE151,ZRE15#200710-200912

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iNZE151,ZRE15#200710-201512

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iNZE151,ZRE15#200710-200912

main90446-07001iNZE151,ZRE15#200710-200912

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iNZE151,ZRE15#200710-200912

main90446-07001iNZE151,ZRE15#200710-200912

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iNZE151,ZRE15#200710-200912

main90099-33080iNZE151,ZRE15#200710-200912

85379BGROMMET, WASHER, A

main85379-12850iNZE151,ZRE15#200710-200912

85389CPROTECTOR, WASHER

main85389-12010iNZE151,ZRE15#200710-200905

8271124720WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24720

827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F290

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8281944180GROMMET, WIRING HARNESS

main82819-44180

16 parts on this diagram · 1 diagram in section
