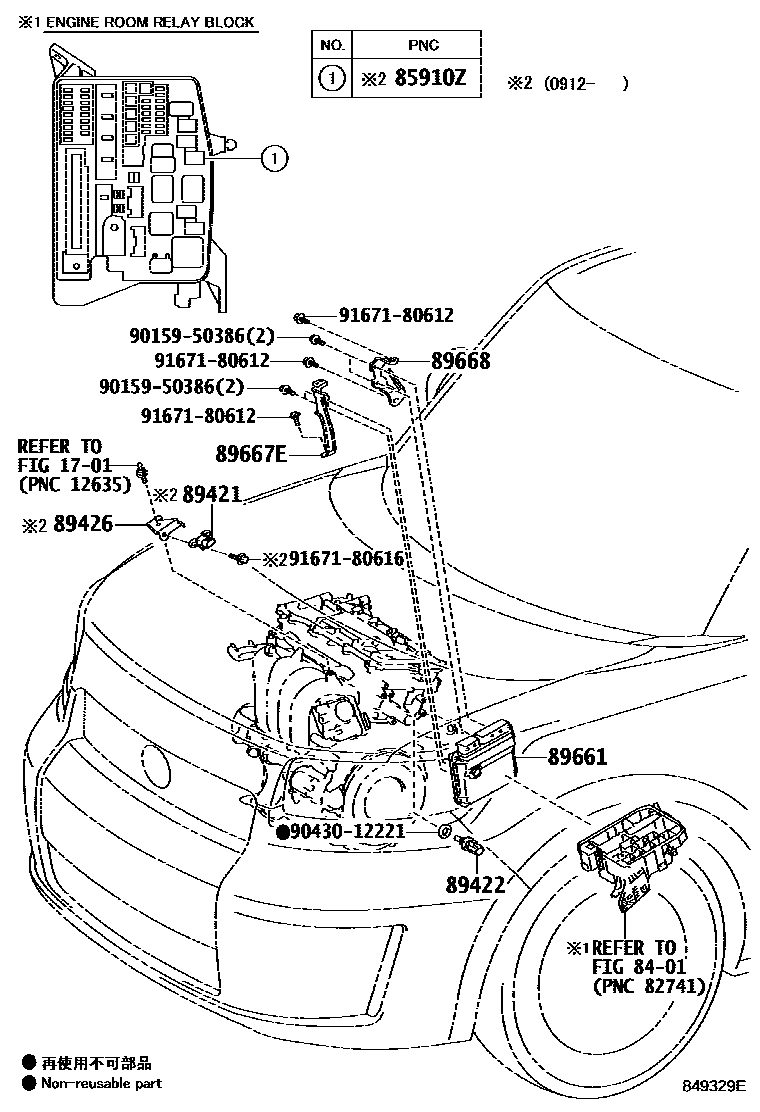

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1701

8401

85910ZRELAY, INJECTION (FOR EFI)

main90987-02027iZRE15#..CBU200912-201512

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZRE15#..CBU200912-201512

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNZE151,ZRE15#200710-201512

89426BRACKET, VACUUM SENSOR

main89426-12260iNZE151..CBU201301

main89426-13020iZRE15#..CBU201301

main89426-28080iZRE15#..CBU200912-201301

89661COMPUTER, ENGINE CONTROL

main89661-12F30iNZE151200710-200912

main89661-12F40iZRE152200710-200806

sub89661-12F41

main89661-12F41iZRE152200807-200912

main89661-12F50iZRE154200710-200807

sub89661-12F51

main89661-12F51iZRE154200808-200912

main89661-12M60iZRE152..CBU200912-201104

sub89661-12M61

main89661-12M61iZRE152..CBU201105-201301

main89661-12M70iZRE154..CBU200912-201104

sub89661-12M71

main89661-12M71iZRE154..CBU201105-201301

main89661-12M90iNZE151..CBU200912-201103

sub89661-12M91

main89661-12M91iNZE151..CBU201104-201301

main89661-12P50iZRE152..CBU201301

main89661-12P60iZRE154..CBU201301

main89661-12P70iNZE151..CBU201301

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-12210iNZE151,ZRE15#200710-200912

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12120iNZE151,ZRE15#200710-200912

9015950386

main90159-50386

9043012221

main90430-12221

9167180612

main91671-80612

9167180616

main91671-80616

13 parts on this diagram · 4 diagrams in section
