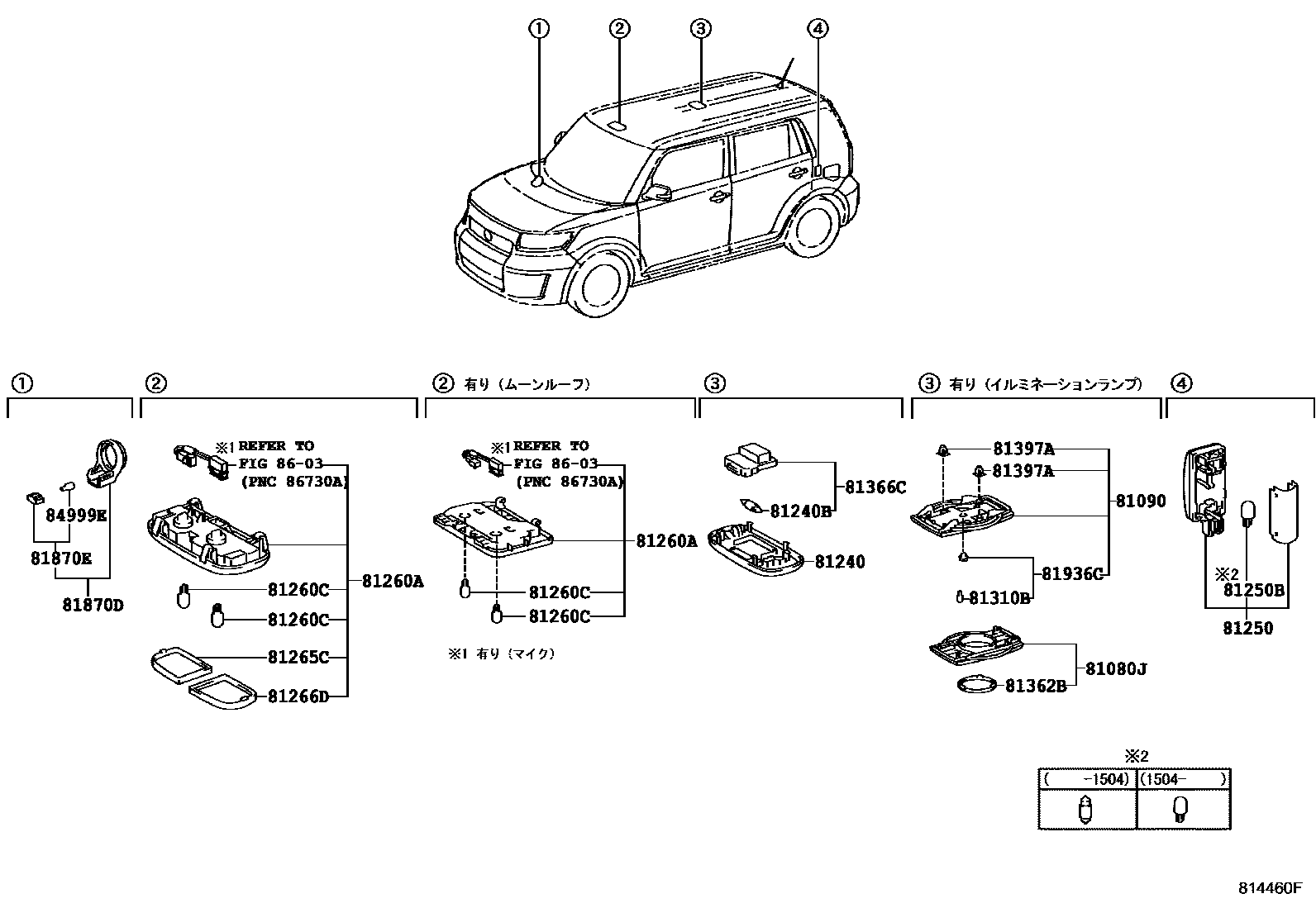

INTERIOR LAMP

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-12030-B0iNZE151,ZRE15#..G,S200710-200912

LT.GRAY,TRIM1#

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81090-12010-B0iNZE151,ZRE15#..G,S200710-200912

LT.GRAY,TRIM1#

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B1iNZE151..X200710-200912

main81240-52040-B1iNZE151..X200710-200912

main81240-52040-B1iNZE151,ZRE15#..G,S200710-201512

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNZE151..X200710-200912

main90981-14011iNZE151..X200710-200912

81250LAMP ASSY, ROOM, NO.2

main81250-48010iNZE151,ZRE15#..G,S200710-201503

main81330-58010iNZE151,ZRE15#..(G,S)..CBU201504

81250BBULB, ROOM LAMP, NO.2

main99132-12050iNZE151,ZRE15#..(G,S)..CBU201504

main99132-13050iNZE151,ZRE15#..G,S200710-201504

81260ALAMP ASSY, MAP

main81260-52030-B1iNZE151,ZRE15#..(G,S)..CBU200710-201512

LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-11062iNZE151,ZRE15#..G,S200710-200912

81265CLENS, MAP LAMP, NO.1

main81265-52020iNZE151,ZRE15#..G,S200710-200912

81266DLENS, MAP LAMP, NO.2

main81266-52020iNZE151,ZRE15#..G,S200710-200912

81310BBULB, REAR ROOM LAMP

main90981-11062iNZE151,ZRE15#..G,S200710-200912

81362BLENS, INTERIOR ILLUMINATION LAMP

main81362-12020iNZE151,ZRE15#..G,S200710-200912

81366CBASE, ROOM LAMP SWITCH

main81366-68010iNZE151..X200710-200912

main81366-68010iNZE151,ZRE15#..CBU200912-201512

81397ARETAINER, ROOM LAMP, RH

main81397-12020iNZE151,ZRE15#..G,S200710-200912

81870DLAMP ASSY, KEY CYLINDER

main81870-42020iNZE151,ZRE15#200710-200912

main81870-42020iNZE151,ZRE15#..CBU200912

81870EBULB, KEY CYLINDER LAMP

main90010-01030iNZE151,ZRE15#200710-200912

main90010-01030iNZE151,ZRE15#200710-200912

81936CBULB ASSY

main81936-12150iNZE151,ZRE15#..G,S200710-200912

84999EBULB, KEY CYLINDER LAMP

main84999-10250iNZE151,ZRE15#200710-200912

main84999-10250iNZE151,ZRE15#..CBU200912

8603

19 parts on this diagram · 1 diagram in section
