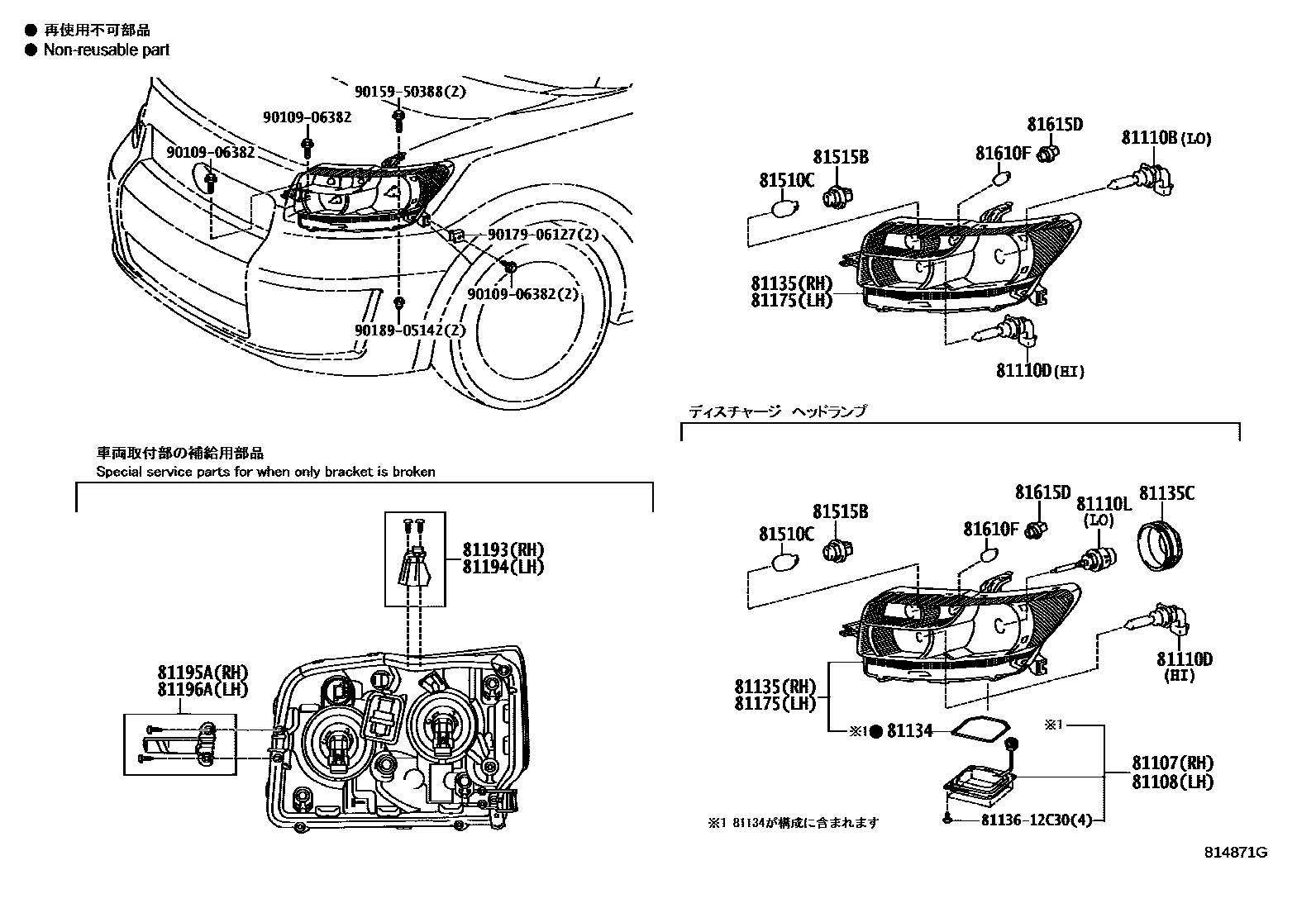

HEADLAMP
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110BBULB(FOR HEADLAMP, NO.1)
81110DBULB(FOR HEADLAMP, NO.2)
81110LBULB, DISCHARGE HEADLAMP
sub90981-20028
sub90981-20024
sub90981-20024
sub90981-20024
sub90981-20024
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
sub81130-12C01
sub81130-12C03
sub81145-12F41
sub81145-12J21
sub81145-12J21
sub81145-12J21
sub81145-12J21
81135CCOVER, HEADLAMP BACK, NO.1
81175UNIT ASSY, HEADLAMP, LH
sub81170-12C01
sub81170-12C03
sub81185-12F41
sub81185-12J21
sub81185-12J21
sub81185-12J21
sub81185-12J21
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
81615DSOCKET, CLEARANCE LAMP
8113612C30PROTECTOR, HEADLAMP, NO.1 RH
main81136-12C30
9010906382
main90109-06382
9015950388
main90159-50388
9017906127
main90179-06127
9018905142
main90189-05142
22 parts on this diagram · 1 diagram in section
