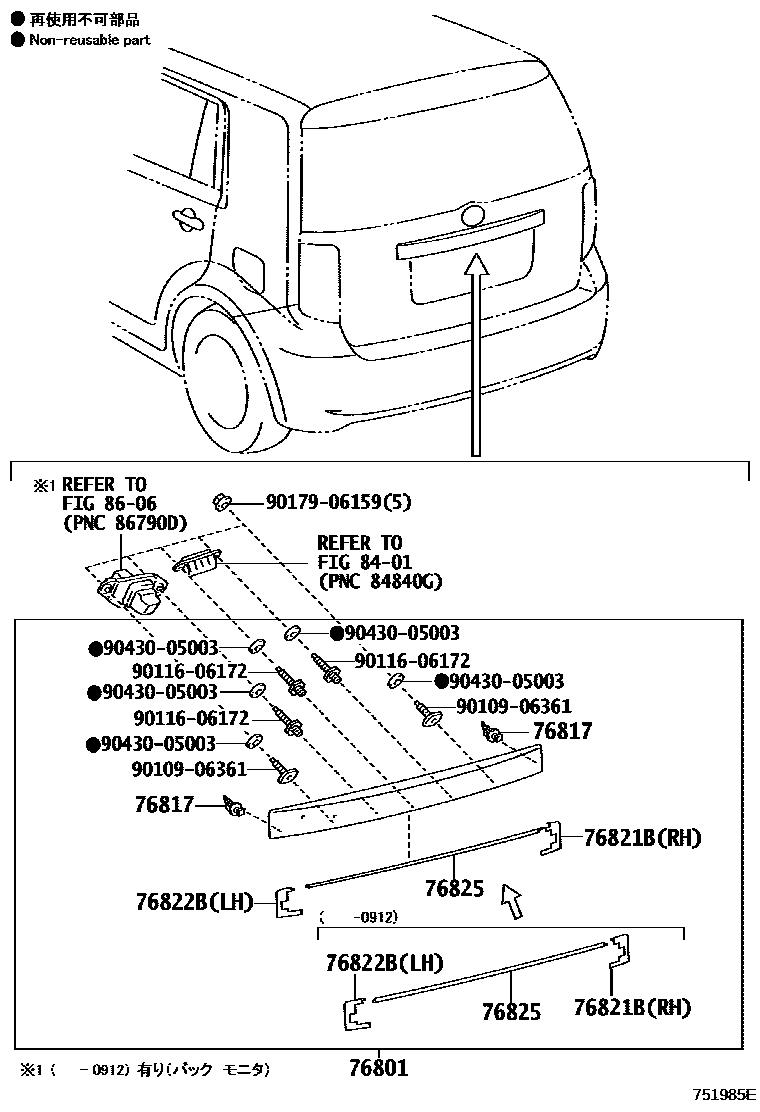

REAR MOULDING

0001 1 0002 1 0003 1������ ����������

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-12A30iNZE151,ZRE15#200710-200912

main76801-12C00iNZE151,ZRE15#..CBU200912-201512

main76801-12A00-A0iNZE151,ZRE15#..(G,S)..HTWC..CBU200805-200808

main76801-12A10iNZE151,ZRE15#..G,S200710-200912

main76801-12B00-A0iNZE151,ZRE15#..(G,S)..HTWC..CBU200805-200808

sub76801-12D90

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-50010×2iNZE151,ZRE15#200710-200912

76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH

main76821-12230iNZE151,ZRE15#200710-200912

main76821-12270iNZE151,ZRE15#..CBU200912

76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH

main76822-12090iNZE151,ZRE15#200710-200912

main76822-12120iNZE151,ZRE15#..CBU200912

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-12060iNZE151,ZRE15#200710-200912

main76825-12110iNZE151,ZRE15#..CBU200912

8401

8606

9010906361

main90109-06361

9011606172

main90116-06172

9017906159

main90179-06159

9043005003

main90430-05003

11 parts on this diagram · 3 diagrams in section
