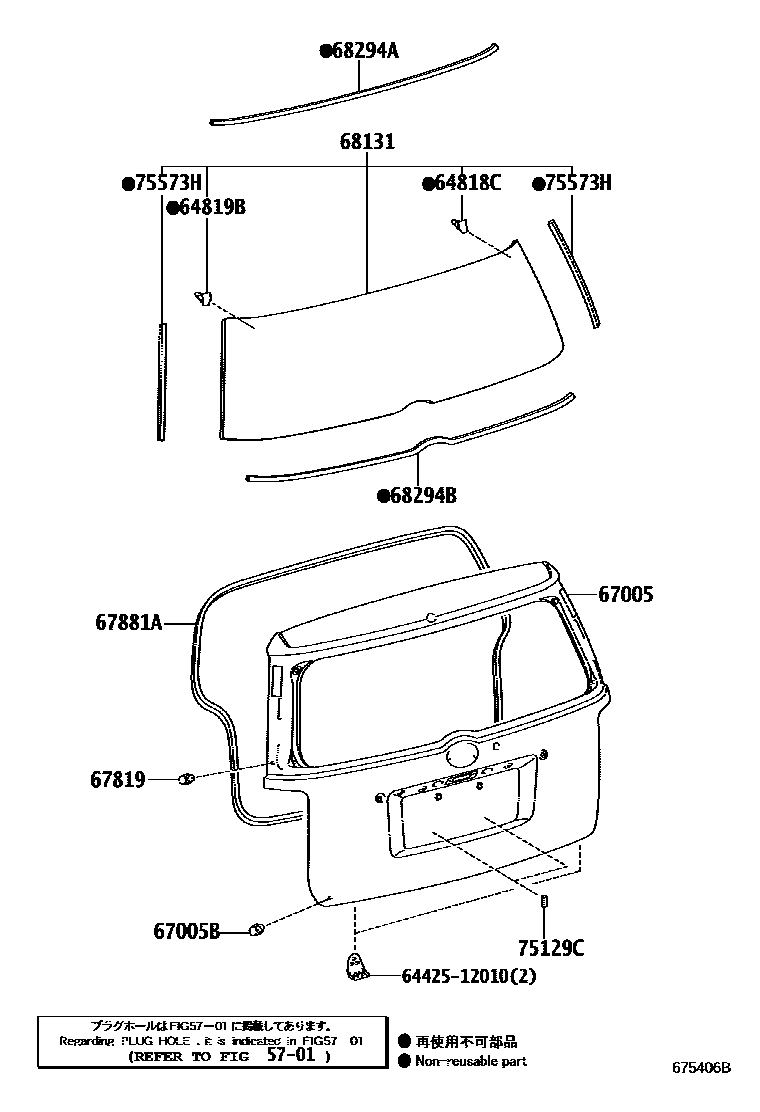

BACK DOOR PANEL & GLASS

0001 1��� ���� 0002 1��� ���

5701

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-12060iNZE151,ZRE15#¥390200710-200912

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-12040iNZE151,ZRE15#¥390200710-200912

67005PANEL SUB-ASSY, BACK DOOR

main67005-12A90iNZE151,ZRE15#¥62,200200710-200912

main67005-12C10iNZE151,ZRE15#..CBU¥62,200200912-201512

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iNZE151,ZRE15#¥100200710-200912

67819PAD, BACK DOOR OUTSIDE PANEL

main67819-12010iNZE151,ZRE15#¥380200710-200912

67881AWEATHERSTRIP, BACK DOOR

main67881-12300iNZE151,ZRE15#¥12,800200710-200912

68131GLASS, BACK DOOR

main68105-12350iNZE151,ZRE15#¥71,900200710-200912

68294ADAM, BACK DOOR GLASS ADHESIVE

main64813-12200iNZE151,ZRE15#¥820200710-200912

sub56117-50140¥870

68294BDAM, BACK DOOR GLASS ADHESIVE

main64814-12010iNZE151,ZRE15#¥900200710-200912

sub56117-50140¥870

75129CCUSHION, REAR LICENCE PLATE

main75129-13020iNZE151,ZRE15#¥80200710-201212

main75129-30010iNZE151,ZRE15#..CBU¥190201301

75573HMOULDING, BACK WINDOW, OUTSIDE

main75573-12370iNZE151,ZRE15#¥1,750200710-200912

6442512010PLUG, LUGGAGE COMPARTMENT DOOR, RH

main64425-12010¥360

13 parts on this diagram · 2 diagrams in section
