DECK BOARD & DECK TRIM COVER
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58557AMAT, REAR
58570AMAT ASSY, REAR FLOOR
DK.GRAY,TRIM1#
58570DCARPET ASSY, REAR FLOOR
58731CCAP, REAR ABSORBER
DK.GRAY,TRIM1#
58732CCAP, REAR ABSORBER
DK.GRAY,TRIM1#
64009TONNEAU COVER SET
main64009-12011
64320BRACKET, PACKAGE TRAY TRIM, LH
main64322-12220
64321DBRACKET, PACKAGE TRAY TRIM, RH
64330DPANEL ASSY, PACKAGE TRAY TRIM
64381AHANGER, PACKAGE TRAY TRIM
64715CCOVER, DECK SIDE TRIM, LH
DK.GRAY,TRIM1#
64716DCOVER, DECK TRIM, REAR
DK.GRAY,TRIM1#
64726BCLIP, DECK REAR TRIM
64730BPANEL ASSY, DECK TRIM SIDE, RH
DK.GRAY,TRIM1#
64730HCLIP(FOR DECK TRIM SIDE PANEL)
64740CPANEL ASSY, DECK TRIM SIDE, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
64745BCOVER, REAR COMBINATION LAMP SERVICE, NO.2, RH
DK.GRAY,TRIM1#
64746BCOVER, REAR COMBINATION LAMP SERVICE, NO.2, LH
DK.GRAY,TRIM1#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64910JCOVER ASSY, TONNEAU
64993BOX, DECK FLOOR, REAR
9011906840
main90119-06840
9017606036
main90176-06036
9017805001
main90178-05001
9018904057
main90189-04057
9046710161
main90467-10161
9326955012
main93269-55012
9356055016
main93560-55016

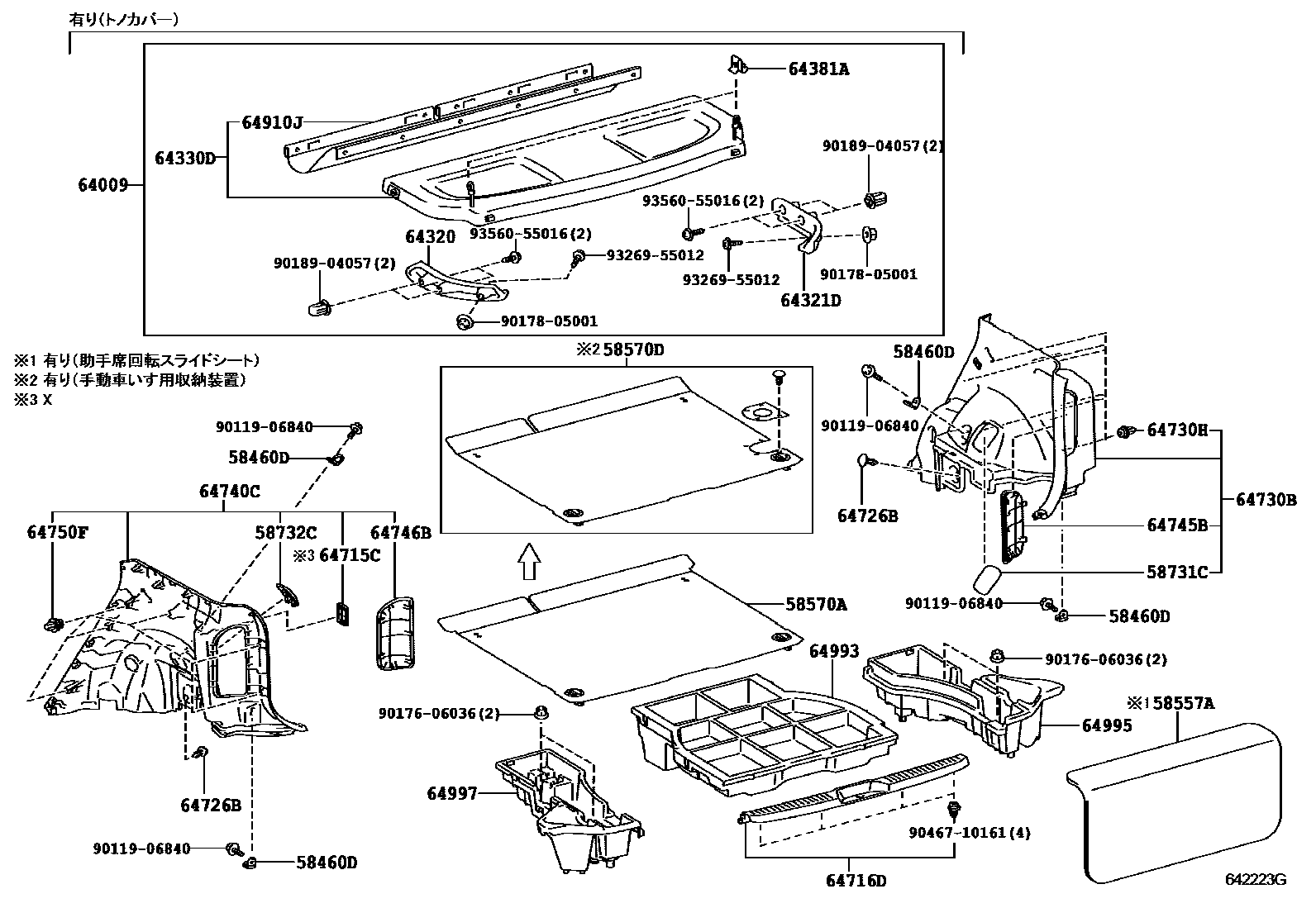

31 parts on this diagram · 1 diagram in section
