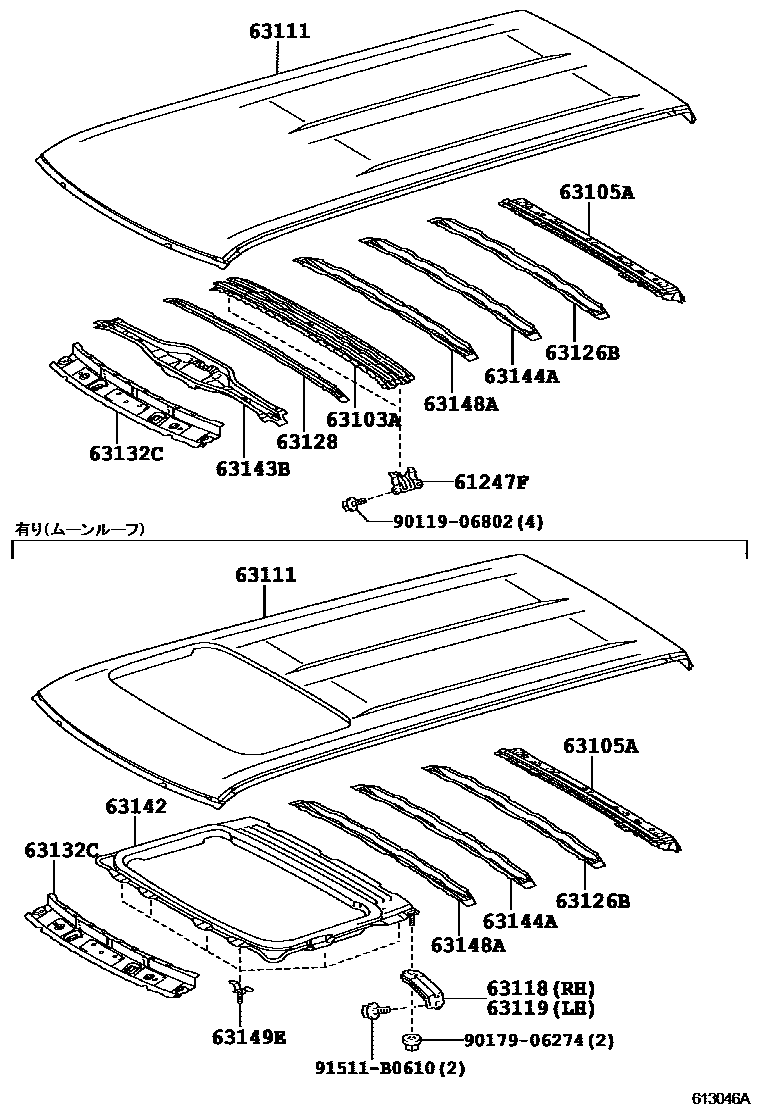

ROOF PANEL & BACK WINDOW GLASS

0001 1��� ���� 0002 1��� ���

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-12090iNZE151,ZRE15#200710-201512

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-12140iNZE151,ZRE15#200710-200912

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-12280iNZE151,ZRE15#..CBU200710-200912

63111PANEL, ROOF

main63111-12A20iNZE151,ZRE15#200710-200912

main63111-12A30iNZE151,ZRE15#..(G,S)..CBU200710-200912

main63111-12A50iNZE151,ZRE15#..G,S200710-200912

main63111-12A60iNZE151,ZRE15#..G,S200710-200912

63118SUPPORT, ROOF PANEL, RH

main63118-12130iNZE151,ZRE15#..G,S200710-200912

main63118-12130iNZE151,ZRE15#..G,S200710-200912

63119SUPPORT, ROOF PANEL, LH

main63118-12130iNZE151,ZRE15#..G,S200710-200912

main63118-12130iNZE151,ZRE15#..G,S200710-200912

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-12030iNZE151,ZRE15#200710-200912

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-12030iNZE151,ZRE15#200710-200912

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-12370iNZE151,ZRE15#200710-200912

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-12160iNZE151,ZRE15#..G,S200710-200912

main63142-12160iNZE151,ZRE15#..G,S200710-200912

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-12160iNZE151,ZRE15#..CBU200710-200912

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-12140iNZE151,ZRE15#200710-200912

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-12060iNZE151,ZRE15#200710-200912

63149EBRACKET, ROOF PANEL REINFORCEMENT, NO.2

main63149-12040iNZE151,ZRE15#..G,S200710-200912

main63149-12040iNZE151,ZRE15#..G,S200710-200912

9011906802

main90119-06802

9017906274

main90179-06274

91511B0610

main91511-B0610

17 parts on this diagram · 2 diagrams in section
