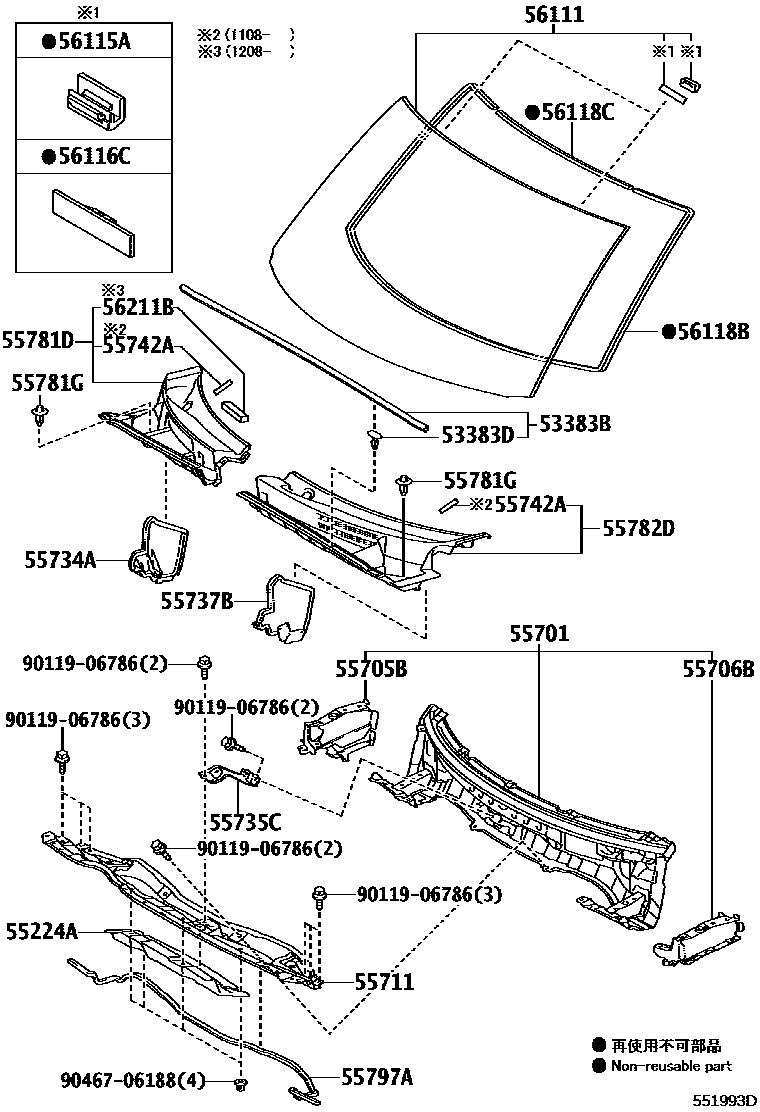

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55224AINSULATOR, DASH PANEL, OUTER NO.2
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55711PANEL, COWL TOP, OUTER
55734APLATE, WATER GUARD, RH
55735CREINFORCEMENT, COWL BODY MOUNTING, RH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55742ASHEET, COWL TOP INSULATOR
55781DLOUVER, COWL TOP VENTILATOR, RH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55797ASEAL, COWL WATER EXTRACT
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56118BDAM, WINDOW GLASS ADHESIVE, NO.2
sub56117-64010
56211BCUSHION, WINDSHIELD
9011906786
main90119-06786
9046706188
main90467-06188
23 parts on this diagram · 1 diagram in section
