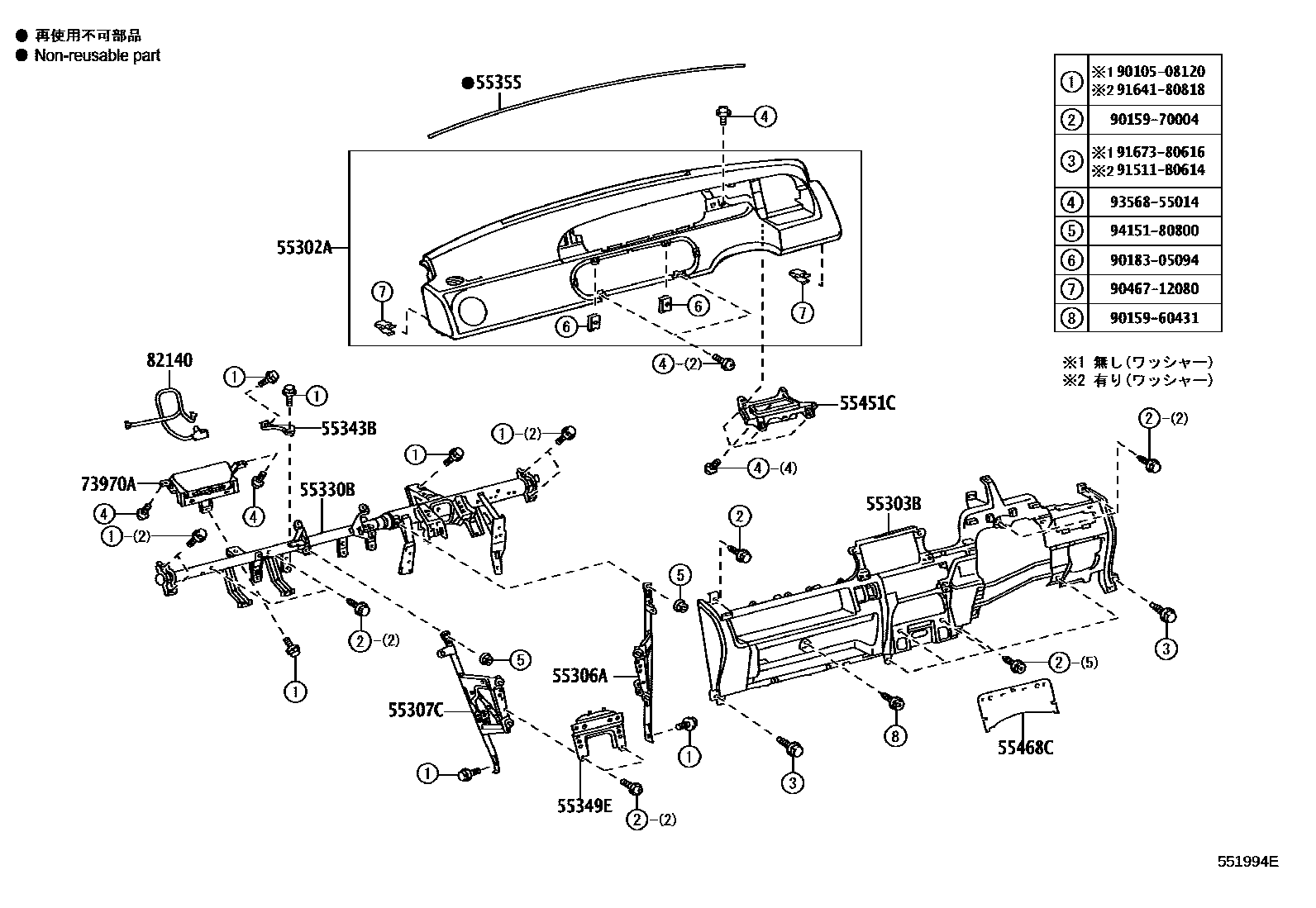

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-12230-B0iNZE151,ZRE15#200710-201512

DK.GRAY,TRIM1#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-12460-B0iNZE151,ZRE15#200710-201512

DK.GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12440iNZE151200710-200912

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12370iNZE151200710-200912

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12790iNZE151,ZRE15#200710-201512

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-12070iNZE151200710-200912

55349EBRACKET, INSTRUMENT PANEL BRACE MOUNTING, LOWER

main55349-12140iNZE151200710-200912

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-12160iNZE151200710-200912

55451CBOX, INSTRUMENT PANEL, NO.1

main55451-12670-B0iNZE151,ZRE15#200710-201512

DK.GRAY,TRIM1#

55468CSEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55468-12020iNZE151200710-200912

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-12150iNZE151200710-200912

sub73970-12260

82140WIRE ASSY, INSTRUMENT PANEL

main82140-1A200iNZE151200710-200912

9010508120

main90105-08120

9015960431

main90159-60431

9015970004

main90159-70004

9018305094

main90183-05094

9046712080

main90467-12080

91511B0614

main91511-B0614

9164180818

main91641-80818

9167380616

main91673-80616

9356855014

main93568-55014

9415180800

main94151-80800

22 parts on this diagram · 4 diagrams in section
