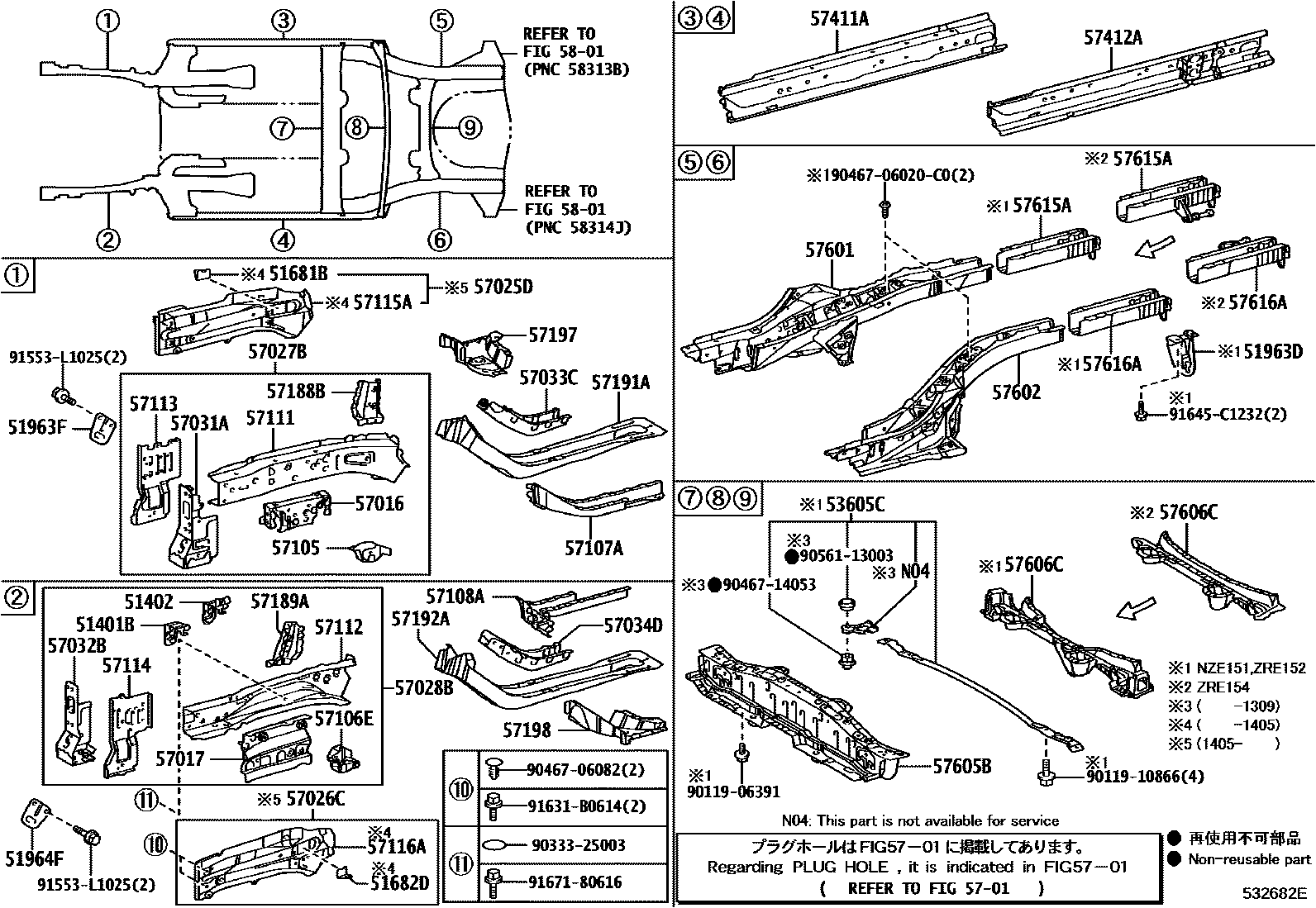

FLOOR SIDE MEMBER

51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-12020iNZE151,ZRE15#200710-200912

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-12020iNZE151,ZRE15#200710-200912

51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-12080iNZE151,ZRE15#200710-201405

51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-12080iNZE151,ZRE15#200710-201405

51963DHOOK, TRANSPORT, REAR LH

main51968-12180iNZE151,ZRE15#200710-200912

51963FHOOK, TRANSPORT

main51963-12250iNZE151,ZRE15#200710-201512

51964FHOOK, TRANSPORT, LH

main51964-12040iNZE151,ZRE15#200710-200912

53605CBRACE SUB-ASSY, REAR FLOOR SIDE MEMBER

main53605-12020iNZE151,ZRE152200710-201306

sub53605-12021

main53605-12021iNZE151,ZRE152..CBU201307

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-12110iNZE151,ZRE15#200710-200912

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-12070iNZE151,ZRE15#200710-200912

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-12010iNZE151,ZRE15#..CBU201405

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-12020iNZE151,ZRE15#..CBU201405

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-12010iNZE151,ZRE15#200710-200912

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-12020iNZE151,ZRE15#200710-200912

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-12010iNZE151,ZRE15#200710-200912

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-12010iNZE151,ZRE15#200710-200912

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-12010iNZE151,ZRE15#200710-200912

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-12010iNZE151,ZRE15#200710-200912

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-12160iNZE151,ZRE15#200710-200912

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-12150iNZE151,ZRE15#200710-200912

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-12120iNZE151,ZRE15#200710-200912

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-12140iNZE151,ZRE15#200710-200912

57111MEMBER, FRONT SIDE, RH

main57111-12230iNZE151,ZRE15#200710-200912

57112MEMBER, FRONT SIDE, LH

main57112-12190iNZE151,ZRE15#200710-200912

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12220iNZE151,ZRE15#200710-200912

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12190iNZE151,ZRE15#200710-201406

sub57114-12191

main57114-12191iNZE151,ZRE15#..CBU201407

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12090iNZE151,ZRE15#200710-201405

sub57025-12010

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12090iNZE151,ZRE15#200710-201312

sub57116-12091

main57116-12091iNZE151,ZRE15#..CBU201401-201405

sub57026-12020

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-12030iNZE151,ZRE15#200710-200912

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-12010iNZE151,ZRE15#200710-200912

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-12070iNZE151,ZRE15#200710-200912

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-12060iNZE151,ZRE15#200710-200912

57197BOX, TORQUE, FRONT RH

main57197-12040iNZE151,ZRE15#200710-200912

57198BOX, TORQUE, FRONT LH

main57198-12040iNZE151,ZRE15#200710-200912

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-12600iNZE151,ZRE15#200710-200912

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-12610iNZE151,ZRE15#..CBU200710-200912

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12A00iNZE151,ZRE152200710-200912

main57601-12A70iZRE154..CBU200710-200912

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12A00iNZE151,ZRE152..CBU200710-200912

main57602-12A70iZRE154200710-200912

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-12260iNZE151,ZRE152200710-200912

main57605-12280iZRE154200710-200712

sub57605-12281

main57605-12281iZRE154200712-200801

sub57605-12282

main57605-12282iZRE154200801-201107

sub57605-12283

main57605-12283iZRE154..CBU201108

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-12200iNZE151,ZRE152200710-200711

sub57606-12201

main57606-12201iNZE151,ZRE152..CBU200712-201203

sub57606-12202

main57606-12202iNZE151,ZRE152..CBU201204-201406

sub57606-12203

main57606-12203iNZE151,ZRE152..CBU201407

main57606-12220iZRE154200710-200711

sub57606-12221

main57606-12221iZRE154200712-200912

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57603-12060iNZE151,ZRE152200710-200912

main57603-12070iZRE154200710-200912

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57604-12060iNZE151,ZRE152200710-200912

main57604-12070iZRE154200710-200912

5801

9011906391

main90119-06391

9011910866

main90119-10866

9033325003

main90333-25003

9046706020C0

main90467-06020C0

9046706082

main90467-06082

9046714053

main90467-14053

9056113003

main90561-13003

91553L1025

main91553-L1025

91631B0614

main91631-B0614

91645C1232

main91645-C1232

9167180616

main91671-80616

55 parts on this diagram · 1 diagram in section
