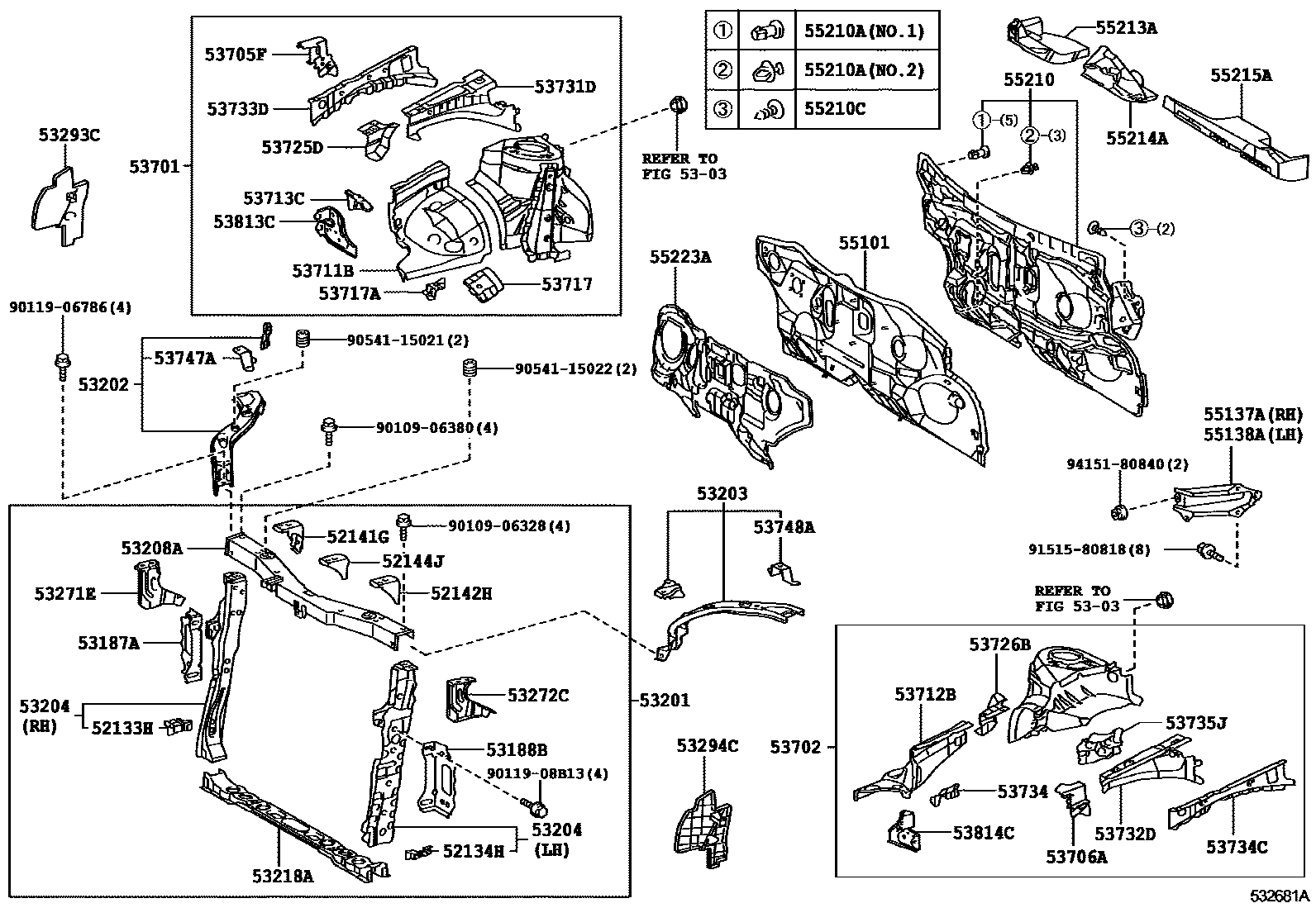

FRONT FENDER APRON & DASH PANEL
52133HBRACKET, FRONT BUMPER, RH
52134HBRACKET, FRONT BUMPER, LH
52141GSTAY, FRONT BUMPER, RH
52142HSTAY, FRONT BUMPER, LH
52144JSTAY, FRONT BUMPER, CENTER
5303
53187ASTAY, RADIATOR SUPPORT, RH
53188BSTAY, RADIATOR SUPPORT, LH
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53204BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53218ASUPPORT, RADIATOR, LOWER
53271EBRACKET, HEADLAMP MOUNTING, RH
53272CBRACKET, HEADLAMP MOUNTING, LH
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53705FBRACE SUB-ASSY, FENDER APRON, RH
53706ABRACE SUB-ASSY, FENDER APRON, LH
53711BAPRON, FRONT FENDER, FRONT RH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53717PLATE, FENDER APRON, RH
53717APLATE, FENDER APRON
53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH
53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734PATCH, FRONT FENDER APRON, NO.4
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53735JPATCH, FRONT FENDER APRON, NO.5
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
55101PANEL SUB-ASSY, DASH
55137ABRACE, DASH TO FRAME, RH
55138ABRACE, DASH TO FRAME, LH
55210INSULATOR ASSY, DASH PANEL
55210CCLIP
55213APAD, DASH PANEL SILENCER
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
55223AINSULATOR, DASH PANEL, OUTER
9010906328
main90109-06328
9010906380
main90109-06380
9011906786
main90119-06786
9011908B13
main90119-08B13
9054115021
main90541-15021
9054115022
main90541-15022
9151580818
main91515-80818
9415180840
main94151-80840
57 parts on this diagram · 1 diagram in section
