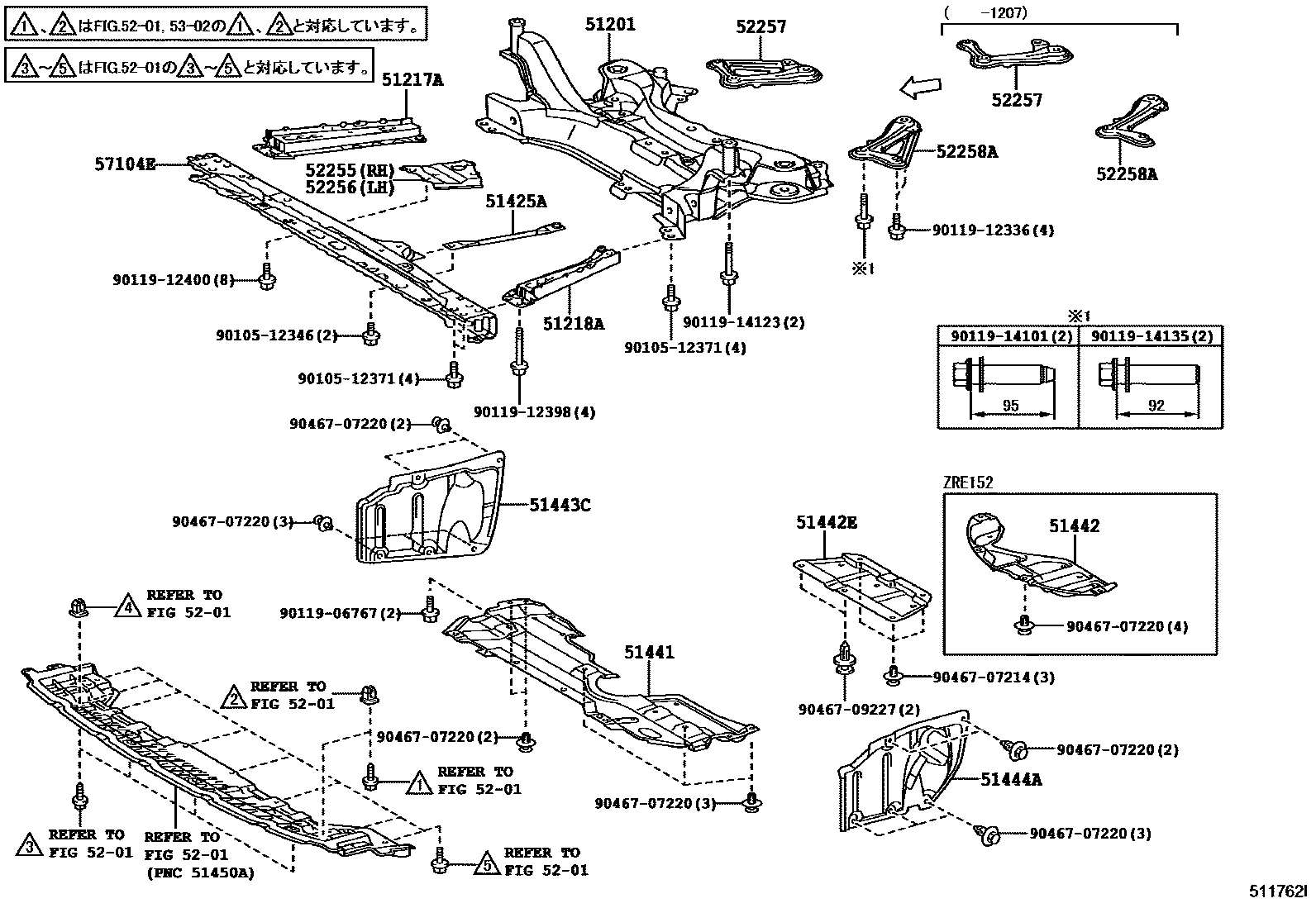

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12441iNZE151,ZRE152200710-201210

sub51201-12442

main51201-12442iNZE151,ZRE152..CBU201211

sub51201-78010

main51201-12451iZRE154200710-200912

sub51201-78020

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-12010iNZE151,ZRE152..CBU200710-201512

main51107-28030iZRE154200710-201512

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-12010iNZE151,ZRE152200710-200912

main51108-28030iZRE154200710-200912

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-12060iNZE151,ZRE152200710-200912

main51425-12070iZRE154200710-200912

51441COVER, ENGINE UNDER, NO.1

main51441-12221iZRE154200710-201301

main51441-12270iNZE151,ZRE152..CBU200710-200912

51442COVER, ENGINE UNDER, NO.2

main51442-12210iZRE15#..CBU200710-200912

51442ECOVER, ENGINE UNDER, NO.2

main51442-12270iNZE151,ZRE15#..CBU200710-200912

51443CCOVER, ENGINE UNDER, REAR RH

main51443-12080iNZE151,ZRE15#..CBU200710-200912

51444ACOVER, ENGINE UNDER, REAR LH

main51444-12050iNZE151,ZRE15#200710-200912

5201

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-12010iNZE151,ZRE15#200710-200912

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-12010iNZE151,ZRE15#..CBU200710-200912

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-12010iNZE151,ZRE152200710-200803

sub52257-12011

main52257-12011iNZE151,ZRE152200804-201207

main52257-12020iZRE154200710-200912

main52257-21040iNZE151,ZRE152..CBU201208

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-12010iNZE151,ZRE152200710-200803

sub52258-12011

main52258-12011iNZE151,ZRE152200804-201207

main52258-12020iZRE154200710-200912

main52258-21040iNZE151,ZRE152..CBU201208

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-12270iNZE151,ZRE15#200710-200912

9010512346

main90105-12346

9010512371

main90105-12371

9011906767

main90119-06767

9011912336

main90119-12336

9011912398

main90119-12398

9011912400

main90119-12400

9011914101

main90119-14101

9011914123

main90119-14123

9011914135

main90119-14135

9046707214

main90467-07214

9046707220

main90467-07220

9046709227

main90467-09227

27 parts on this diagram · 3 diagrams in section
