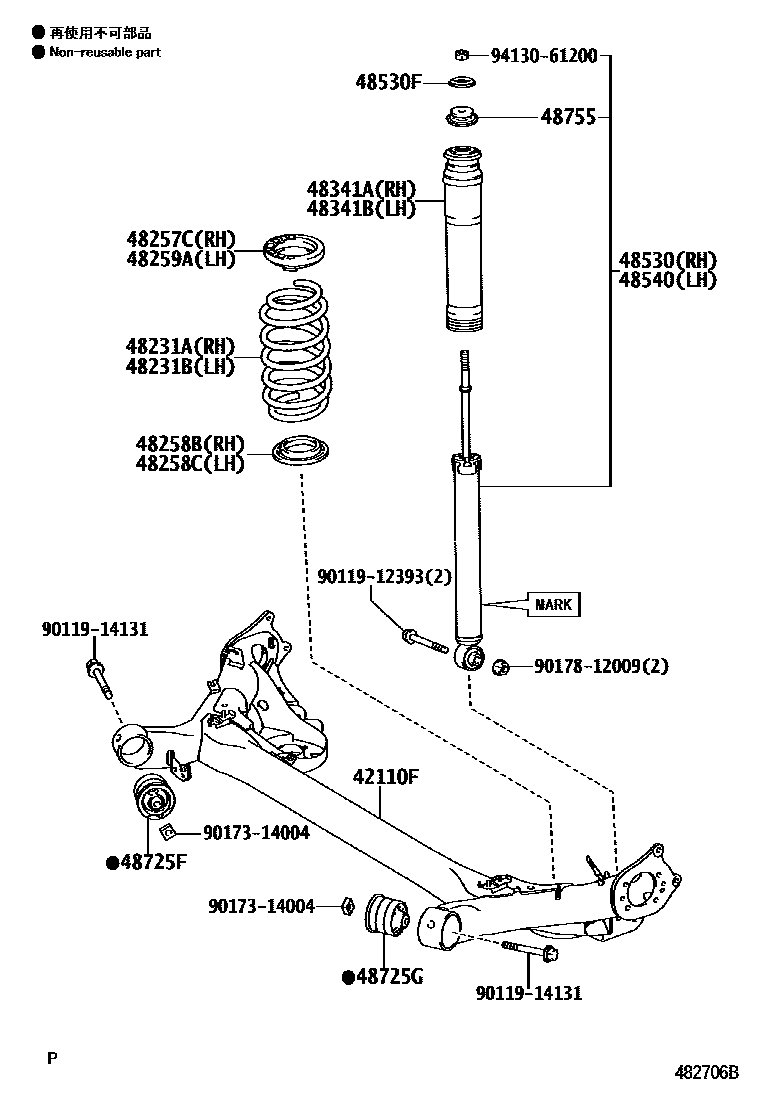

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42110FBEAM ASSY, REAR AXLE

main42101-12171iNZE151,ZRE152..CBU200710-201512

48231ASPRING, COIL, REAR RH

main48231-12A40iNZE151,ZRE152..CBU200710-200912

main48231-12C30iZRE154200710-200912

48231BSPRING, COIL, REAR LH

main48231-12A40iNZE151,ZRE152..CBU200710-200912

main48231-12C30iZRE154..CBU200710-200912

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-52010iNZE151,ZRE15#200710-200912

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-12050iZRE154200710-200912

main48258-52030iNZE151,ZRE152..CBU200710-200912

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-12050iZRE154200710-200912

main48258-52030iNZE151,ZRE152200710-200912

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-52010iNZE151,ZRE15#200710-200912

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-12220iNZE151,ZRE15#200710-201207

sub48341-12240

main48341-12240iNZE151,ZRE15#..CBU201208

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-12220iNZE151,ZRE15#..CBU200710-201207

sub48341-12240

main48341-12240iNZE151,ZRE15#..CBU201208

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80421iNZE151,ZRE152..CBU200710-200912

main48530-80422iZRE154..CBU200710-200912

48530FRETAINER, SHOCK ABSORBER CUSHION(FOR REAR)

main90948-02159iNZE151,ZRE15#200710-200912

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80421iNZE151,ZRE152200710-200912

main48530-80422iZRE154..CBU200710-200912

48725FBUSH, REAR AXLE CARRIER, RH

main48725-12590iNZE151,ZRE152..CBU200710-200912

48725GBUSH, REAR AXLE CARRIER, LH

main48725-12590iNZE151,ZRE152200710-200912

48755SUPPORT, REAR SUSPENSION

main48755-12100iNZE151,ZRE15#200710-200912

9011912393

main90119-12393

9011914131

main90119-14131

9017314004

main90173-14004

9017812009

main90178-12009

9413061200

main94130-61200

20 parts on this diagram · 2 diagrams in section
