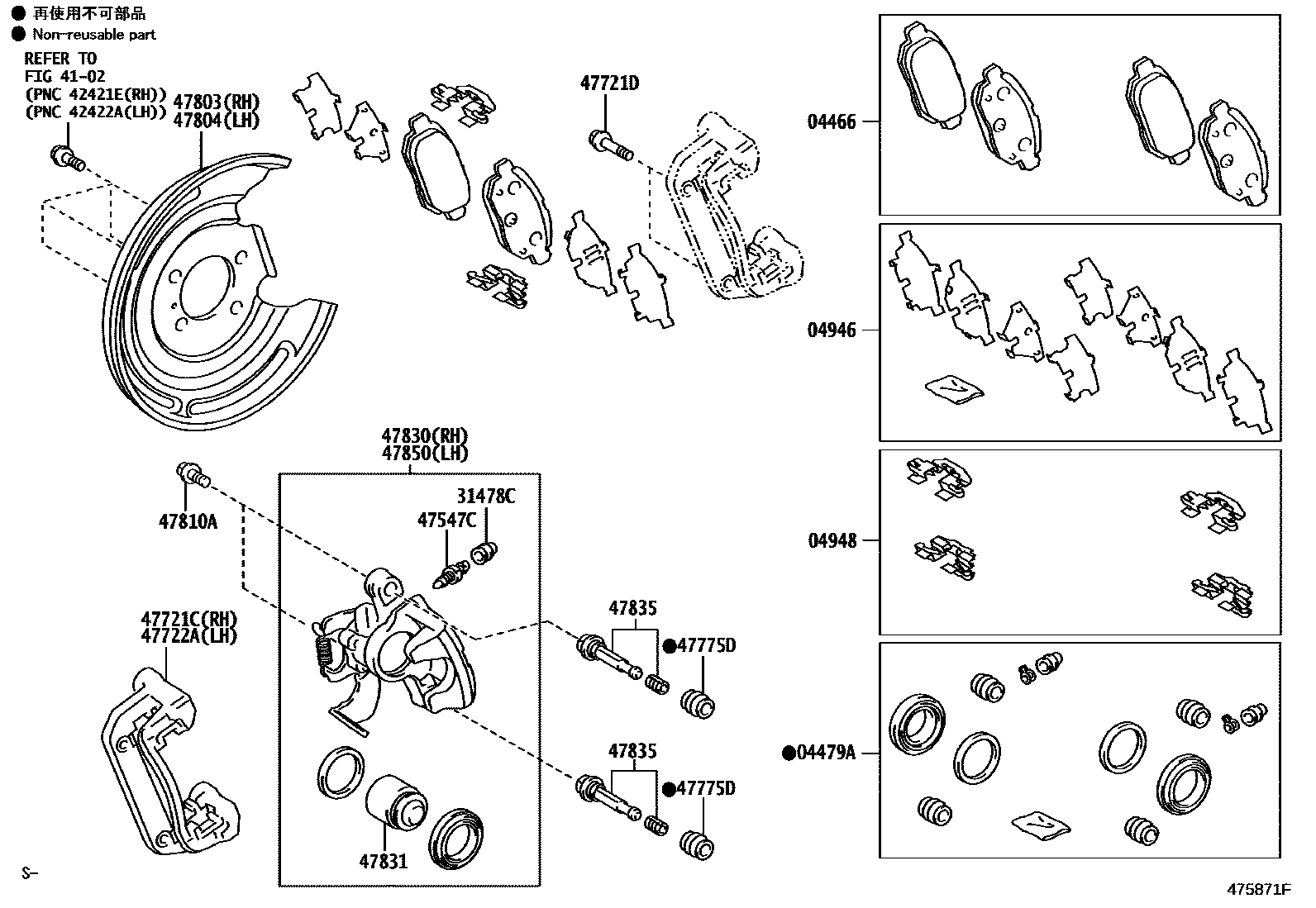

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-12130iNZE151,ZRE152..CBU200710-201111

sub04466-12140

main04466-12140iNZE151,ZRE15#..CBU201111-201205

sub04466-12150

main04466-12150iNZE151,ZRE15#..CBU201206

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12230iNZE151,ZRE15#..CBU200710-200912

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-12040iNZE151,ZRE15#200710-201008

sub04946-12110

main04946-12110iNZE151,ZRE15#..CBU201008

04948FITTING KIT, DISC BRAKE, REAR

main04948-12030iZRE154200710-200912

main04948-12060iNZE151,ZRE152..CBU201111

main04948-52040iNZE151,ZRE152..CBU200710-201111

sub04948-12060

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010iNZE151,ZRE15#200710-200912

4102

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050iNZE151,ZRE15#200710-200912

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12150iZRE154..CBU200710-200912

main47821-12151iNZE151,ZRE152..CBU200710-200912

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10404iNZE151,ZRE15#200710-201512

main91552-C1025iZRE154..CBU201108-201512

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12150iZRE154200710-200912

main47821-12151iNZE151,ZRE152200710-200912

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150iNZE151,ZRE15#..CBU200710-200912

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-12071iNZE151,ZRE152200710-201512

main47881-12080iZRE154200710-201108

main47881-12090iZRE154..CBU201108-201512

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-12071iNZE151,ZRE152200710-201512

main47882-12080iZRE154200710-201108

main47882-12090iZRE154..CBU201108-201512

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102iNZE151,ZRE15#..CBU200710-200912

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-12151iNZE151,ZRE152200710-200912

main47830-12160iZRE154200710-200912

sub47830-12260

47831PISTON, REAR DISC BRAKE

main47831-52050iNZE151,ZRE15#200710-200912

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150iNZE151,ZRE15#200710-200912

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-12151iNZE151,ZRE152200710-200912

main47850-12160iZRE154200710-200912

sub47850-12260

18 parts on this diagram · 1 diagram in section
