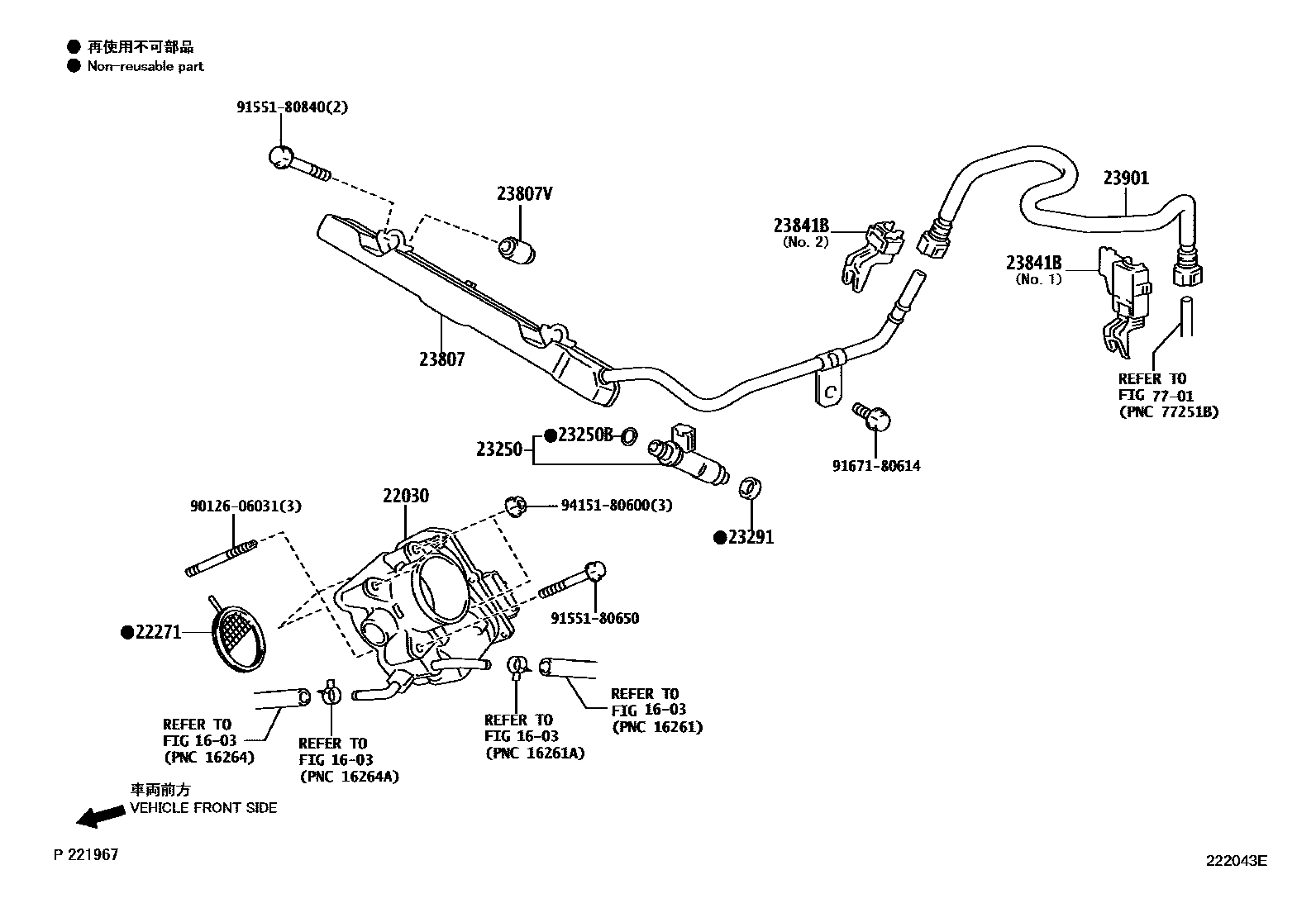

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21030i1NZFE..NZE151..CBU200710-201301

main22030-21040i1NZFE..NZE151..CBU201301

22271GASKET, THROTTLE BODY

main22271-21060i1NZFE..NZE151..CBU200710-200912

main22271-75031i2ZRFAE..ZRE15#..CBU200710-200912

23250INJECTOR ASSY, FUEL

main23209-21040i1NZFE..NZE151..CBU200710-201301

sub23209-21120

main23209-21100i1NZFE..NZE151..CBU201301

sub23209-21130

main23209-39145i2ZRFE..ZRE15#200710-200902

main23209-39146i2ZRFE..ZRE15#200902-200912

main23209-39146i2ZRFAE..ZRE154..X200912-201301

main23209-39235i2ZRFAE..ZRE15#..S..CBU201212

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i1NZFE..NZE151..CBU200710-200912

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i2ZRFE..ZRE15#200805-200902

main23291-23010i1NZFE..NZE151..CBU201107

main23291-28020i2ZRFAE..ZRE15#..CBU200902-200912

main23291-41010i1NZFE..NZE151200710-201106

main23291-41010i2ZRFE..ZRE15#200710-200805

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21030i1NZFE..NZE151..CBU200710-201410

sub23807-21031

main23807-21031i1NZFE..NZE151..CBU201411

main23814-37050i2ZRFAE..ZRE15#..CBU200710-201108

sub23814-37051

main23814-37051i2ZRFAE..ZRE15#..CBU201108

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010i1NZFE..NZE151200710-200912

main23891-37010i2ZRFE..ZRE15#200710-200912

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i2ZRFAE..ZRE15#..CBU200710-201210

main23841-21050i1NZFE..NZE151200710-201107

main23841-36010i1NZFE..NZE151..CBU201108-201512

main23841-37090i1NZFE..NZE151..CBU201211-201512

23901TUBE SUB-ASSY, FUEL

main23901-21150i1NZFE..NZE151200710-201512

main23901-22180i2ZRFE..ZRE15#200710-201512

7701

9012606031

main90126-06031

9155180650

main91551-80650

9155180840

main91551-80840

9167180614

main91671-80614

9415180600

main94151-80600

16 parts on this diagram · 3 diagrams in section
