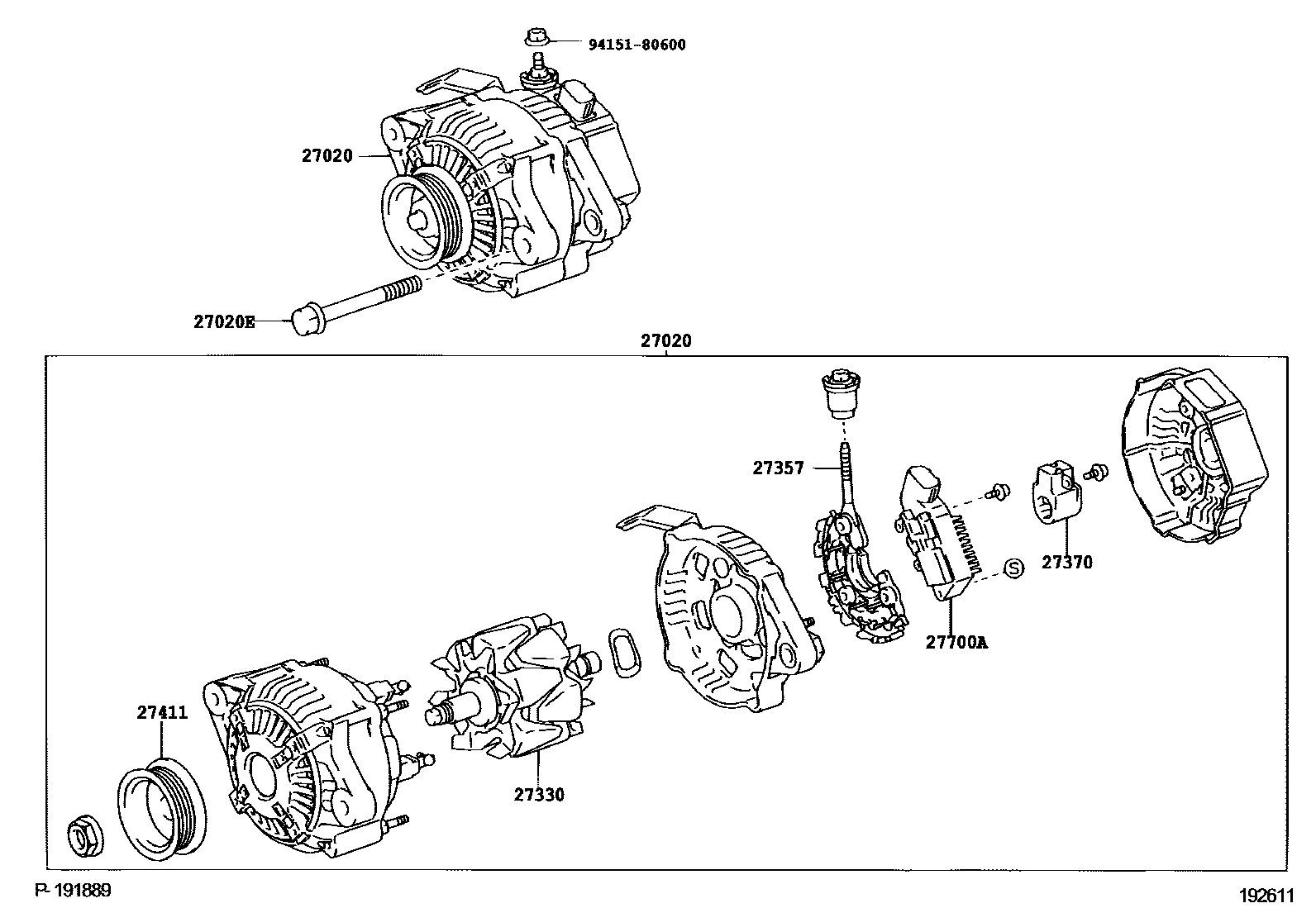

ALTERNATOR

0001 112V 80A 0002 112V 80A 0003 112V 100A 0004 112V 100A

27020ALTERNATOR ASSY

main27060-21130i1NZFE..NZE151200710-200906

sub27060-21131

main27060-21131i1NZFE..NZE151..CBU200907-201301

main27060-21180i1NZFE..NZE151..CBU201301

sub27060-21181

main27060-37020i2ZRFE..ZRE15#200710-200902

sub27060-37021

main27060-37021i2ZRFAE..ZRE15#..CBU200903-201301

main27060-37160i2ZRFAE..ZRE15#..CBU201301

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1NZFE..NZE151..CBU200710-200912

main90105-10307i2ZRFAE..ZRE15#..CBU200710-200912

27330ROTOR ASSY, ALTERNATOR

main27330-30070i2ZRFAE..ZRE15#..CBU200710-201301

main27330-30130i1NZFE..NZE151..CBU200904-201301

main27330-47310i1NZFE..NZE151..CBU201301

main27330-47330i2ZRFAE..ZRE15#..CBU201301

main27330-62220i1NZFE..NZE151200710-200904

sub27330-30130

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22200i1NZFE..NZE151200710-201301

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-23120i1NZFE..NZE151..CBU200710-201301

main27370-31220i2ZRFAE..ZRE15#..CBU200710-200912

27411PULLEY, ALTERNATOR

main27411-70140i1NZFE..NZE151200710-201301

27700AREGULATOR ASSY, GENERATOR

main27700-28080i1NZFE..NZE151200710-201301

9415180600

main94151-80600

8 parts on this diagram · 4 diagrams in section
