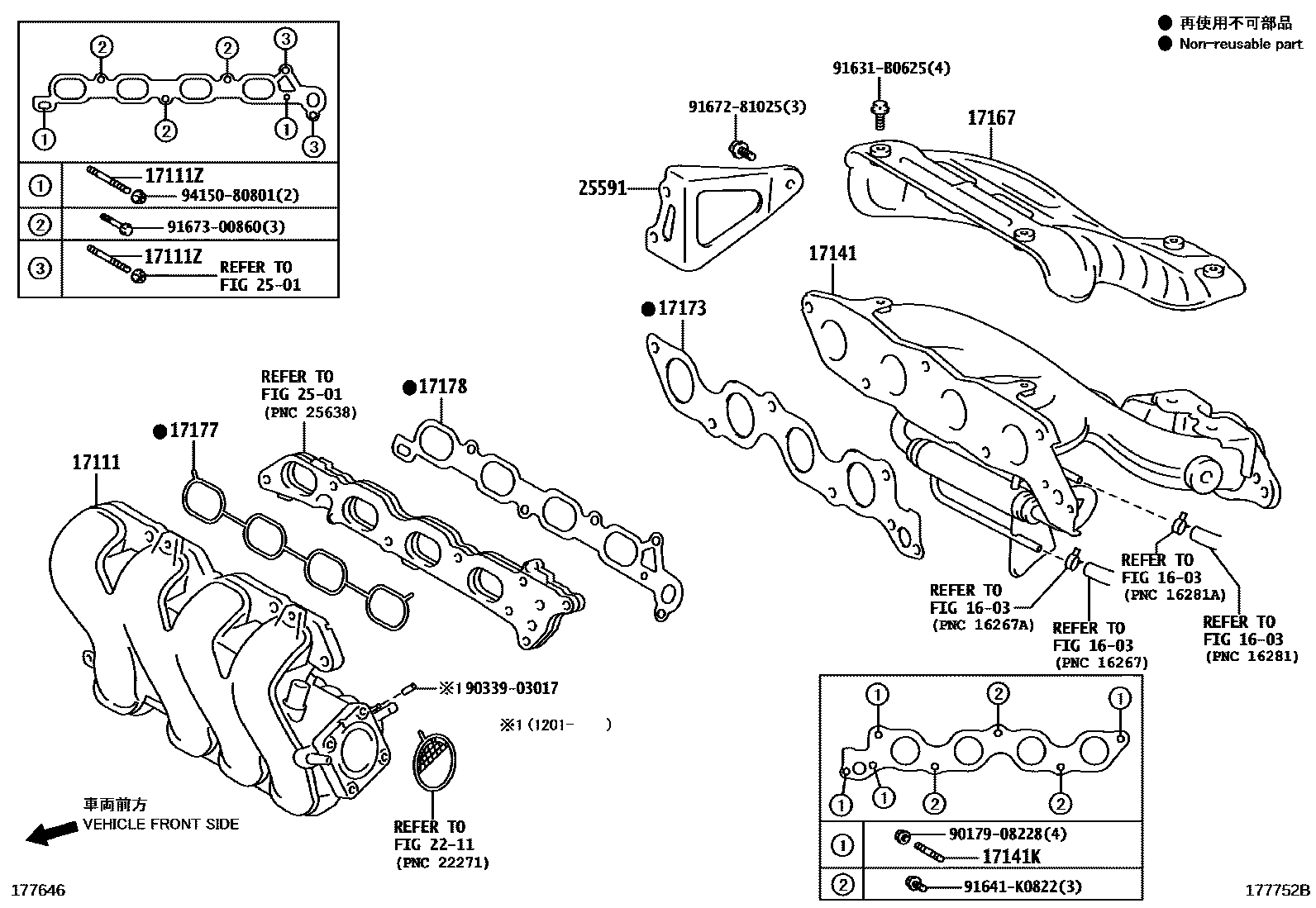

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1

1603

17111MANIFOLD, INTAKE

main17101-21070i1NZFE..NZE151200710-201204

sub17101-21071

sub90339-03017

main17101-21071i1NZFE..NZE151..CBU201204-201512

main17120-37011i2ZRFAE..ZRE15#..CBU200912-201301

main17120-37020i2ZRFE..ZRE15#200710-200805

sub17120-37021

main17120-37021i2ZRFE..ZRE15#200805-200909

main17120-37022i2ZRFE..ZRE15#200910-200912

main17120-37031i2ZRFAE..ZRE15#..CBU201301

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08049i1NZFE..NZE151..CBU200710-200912

17141MANIFOLD, EXHAUST

main17104-21040i1NZFE..NZE151200710-200904

sub17104-21041

main17104-21041i1NZFE..NZE151..CBU200904-201301

main17140-21130i1NZFE..NZE151..CBU201301

main17141-37051i2ZRFAE..ZRE152..CBU200710-201212

main17141-37060i2ZRFE..ZRE154200710-200912

main17141-37130i2ZRFAE..ZRE152..CBU201212

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08037i1NZFE..NZE151200710-200912

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-21110i1NZFE..NZE151200710-201301

main17167-21190i1NZFE..NZE151..CBU201301-201306

sub17167-21191

main17167-21191i1NZFE..NZE151..CBU201306-201412

sub17167-21192

main17167-21192i1NZFE..NZE151..CBU201501

main17167-37011i2ZRFAE..ZRE152..CBU200710-201212

main17167-37020i2ZRFAE..ZRE154..CBU200710-200912

main17167-37110i2ZRFAE..ZRE152..CBU201212

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-21030i1NZFE..NZE151200710-200912

main17173-37010i2ZRFE..ZRE15#200710-200912

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-21030i1NZFE..NZE151..CBU200710-200912

main17177-37030i2ZRFE..ZRE15#200710-200912

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-21010i1NZFE..NZE151200710-200912

2211

2501

25591BRACKET, MANIFOLD SUPPORT

main25591-21060i1NZFE..NZE151200710-201301

main25591-21080i1NZFE..NZE151..CBU201301

9017908228

main90179-08228

9033903017

main90339-03017

91631B0625

main91631-B0625

91641K0822

main91641-K0822

9167281025

main91672-81025

9167300860

main91673-00860

9415080801

main94150-80801

19 parts on this diagram · 8 diagrams in section
