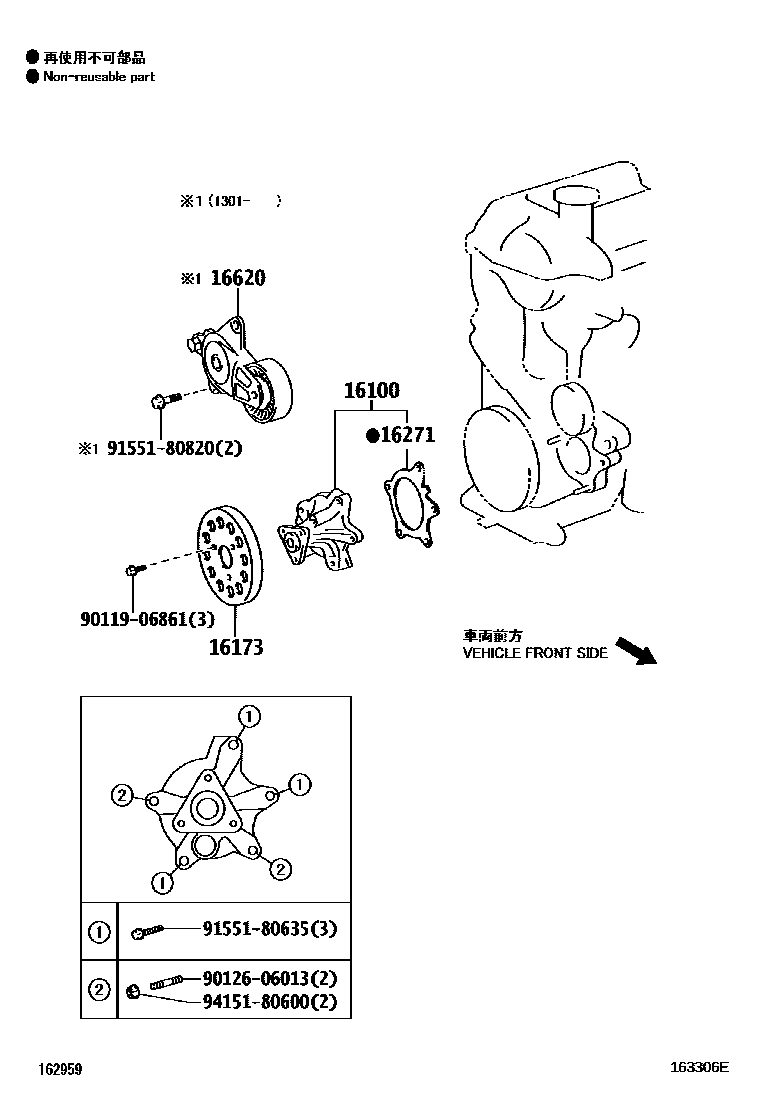

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-29156i1NZFE..NZE151¥9,300200908-201111

sub16100-29157¥8,400

main16100-29157i1NZFE..NZE151..CBU¥8,400201111

sub16100-29158¥8,400

main16100-29206i1NZFE..NZE151¥11,400200710-200907

sub16100-29156¥9,300

main16100-39465i2ZRFE..ZRE15#¥13,000200710-200906

sub16100-39466¥10,200

sub91551-80825¥80

main16100-39466i2ZRFAE..ZRE15#..S..CBU¥10,200200906-201301

main16100-39565i2ZRFAE..ZRE15#..S..CBU¥10,500201212

16173PULLEY, WATER PUMP

main16173-21020i1NZFE..NZE151¥2,970200710-200912

sub16173-21021¥2,250

16271GASKET, WATER PUMP

main16271-21020i1NZFE..NZE151¥620200710-201111

sub16271-21021¥380

main16271-21021i1NZFE..NZE151..CBU¥380201111

main16271-37010i2ZRFE..ZRE15#¥480200710-201301

main16271-37030i2ZRFAE..ZRE15#..S..CBU¥520201212

16620TENSIONER ASSY, V-RIBBED BELT

main16620-21010i1NZFE..NZE151..CBU¥13,400201301

sub16620-21011¥10,100

main16620-37010i2ZRFAE..ZRE15#..S..CBU¥16,100201212-201303

sub16620-37011¥16,100

main16620-37011i2ZRFAE..ZRE15#..CBU¥16,100201303-201506

sub16620-37030¥10,100

main16620-37030i2ZRFAE..ZRE15#..CBU¥10,100201507

9011906861

main90119-06861¥60

9012606013

main90126-06013¥130

9155180635

main91551-80635¥80

9155180820

main91551-80820¥80

9415180600

main94151-80600¥60

9 parts on this diagram · 2 diagrams in section
