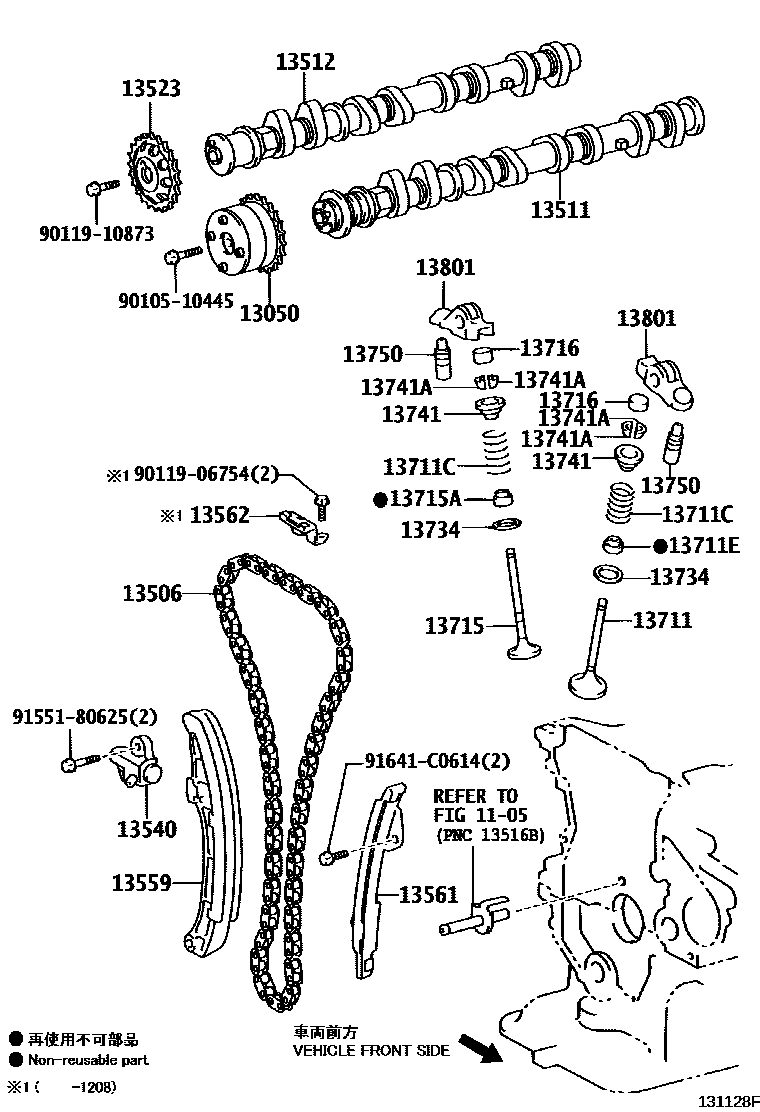

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

1105

13050GEAR ASSY, CAMSHAFT TIMING

main13050-0T010i2ZRFE..ZRE15#200712-200907

sub13050-0T011

main13050-0T011i2ZRFE..ZRE15#200907-201212

sub13050-0T050

main13050-0T021i2ZRFE..ZRE15#200710-200903

sub13050-0T022

main13050-0T022i2ZRFE..ZRE15#200903-201212

sub13050-0T060

sub13050-0T070

sub13050-37040

main13050-21060i1NZFE..NZE151200710-201204

sub13050-21061

main13050-21061i1NZFE..NZE151..CBU201204

main13050-37012i2ZRFAE..ZRE15#..CBU200710-201212

sub13050-0T090

sub13050-37040

sub13050-37060

main13050-37020i2ZRFAE..ZRE15#..CBU201212-201302

sub13050-37050

main13050-37050i2ZRFAE..ZRE15#..CBU201302

13506CHAIN SUB-ASSY

main13506-21060i1NZFE..NZE151200710-201202

sub13506-21061

main13506-21061i1NZFE..NZE151..CBU201202

main13506-37010i2ZRFE..ZRE15#200710-200912

sub13506-37070

main13506-37040i2ZRFAE..ZRE15#..CBU200912-201201

main13506-37050i2ZRFAE..ZRE15#..CBU201201

13511CAMSHAFT

main13501-21051i1NZFE..NZE151..CBU200710-201111

sub13501-21052

main13501-21052i1NZFE..NZE151..CBU201111-201301

main13501-21080i1NZFE..NZE151..CBU201301

main13501-37011i2ZRFE..ZRE15#200710-200912

sub13501-37040

13512CAMSHAFT, NO.2

main13502-21041i1NZFE..NZE151200710-201111

sub13502-21042

main13502-21042i1NZFE..NZE151..CBU201111-201301

main13502-21050i1NZFE..NZE151..CBU201301

main13502-37010i2ZRFE..ZRE15#200710-200912

sub13502-37050

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-22020i1NZFE..NZE151200710-200912

13540TENSIONER ASSY, CHAIN, NO.1

main13540-21020i1NZFE..NZE151..CBU200710-200912

main13540-37030i2ZRFAE..ZRE15#..CBU200710-200912

13559SLIPPER, CHAIN TENSIONER

main13559-21010i1NZFE..NZE151200710-201311

sub13559-21030

main13559-21030i1NZFE..NZE151..CBU201311

sub13559-21031

main13559-37010i2ZRFAE..ZRE15#..CBU200710-201501

sub13559-37050

main13559-37050i2ZRFAE..ZRE15#..CBU201502

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-21020i1NZFE..NZE151200710-200912

main13561-37010i2ZRFAE..ZRE15#..CBU200912-201306

sub13561-37040

main13561-37020i2ZRFE..ZRE15#200710-200912

sub13561-37050

main13561-37040i2ZRFAE..ZRE15#..CBU201306

sub13561-37060

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-21010i1NZFE..NZE151..CBU200710-201208

main13562-37010i2ZRFE..ZRE15#200710-200912

sub13562-37020

13711VALVE, INTAKE

main13711-21040i1NZFE..NZE151..CBU200710-200912

main13711-37020i2ZRFE..ZRE15#200710-200912

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-29060i1NZFE..NZE151..CBU201301

main90501-32053i1NZFE..NZE151..CBU200710-201301

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02101i1NZFE..NZE151200710-200912

13715VALVE, EXHAUST

main13715-21040i1NZFE..NZE151200710-200912

main13715-37030i2ZRFE..ZRE15#200710-200912

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02112i1NZFE..NZE151..CBU200710-200912

13716CAP, VALVE STEM

main13716-75020i1NZFE..NZE151200710-200912

13734SEAT, VALVE SPRING

main13734-62020i1NZFE..NZE151200710-200912

13741RETAINER, VALVE SPRING

main13741-20021i1NZFE..NZE151200710-201405

main13741-20021i2ZRFAE..ZRE15#..CBU201405-201408

main13741-36010i2ZRFAE..ZRE15#..CBU201405-201408

main13741-36010i2ZRFAE..ZRE15#..CBU201408

13741ALOCK, VALVE SPRING RETAINER

main90913-03028i2ZRFE..ZRE15#200710-200912

13750ADJUSTER ASSY, VALVE LASH

main13750-0W030i1NZFE..NZE151200710-201006

sub13750-21010

sub13750-31030

sub13750-75020

main13750-21010i1NZFE..NZE151..CBU201006

main13750-75020i2ZRFAE..ZRE15#..CBU200710-201408

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-23011i1NZFE..NZE151200710-201404

main13801-36020i2ZRFAE..ZRE15#..CBU201405

main13801-47010i1NZFE..NZE151..CBU201007

sub13801-36020

9010510445

main90105-10445

9011906754

main90119-06754

9011910873

main90119-10873

9155180625

main91551-80625

91641C0614

main91641-C0614

26 parts on this diagram · 3 diagrams in section
