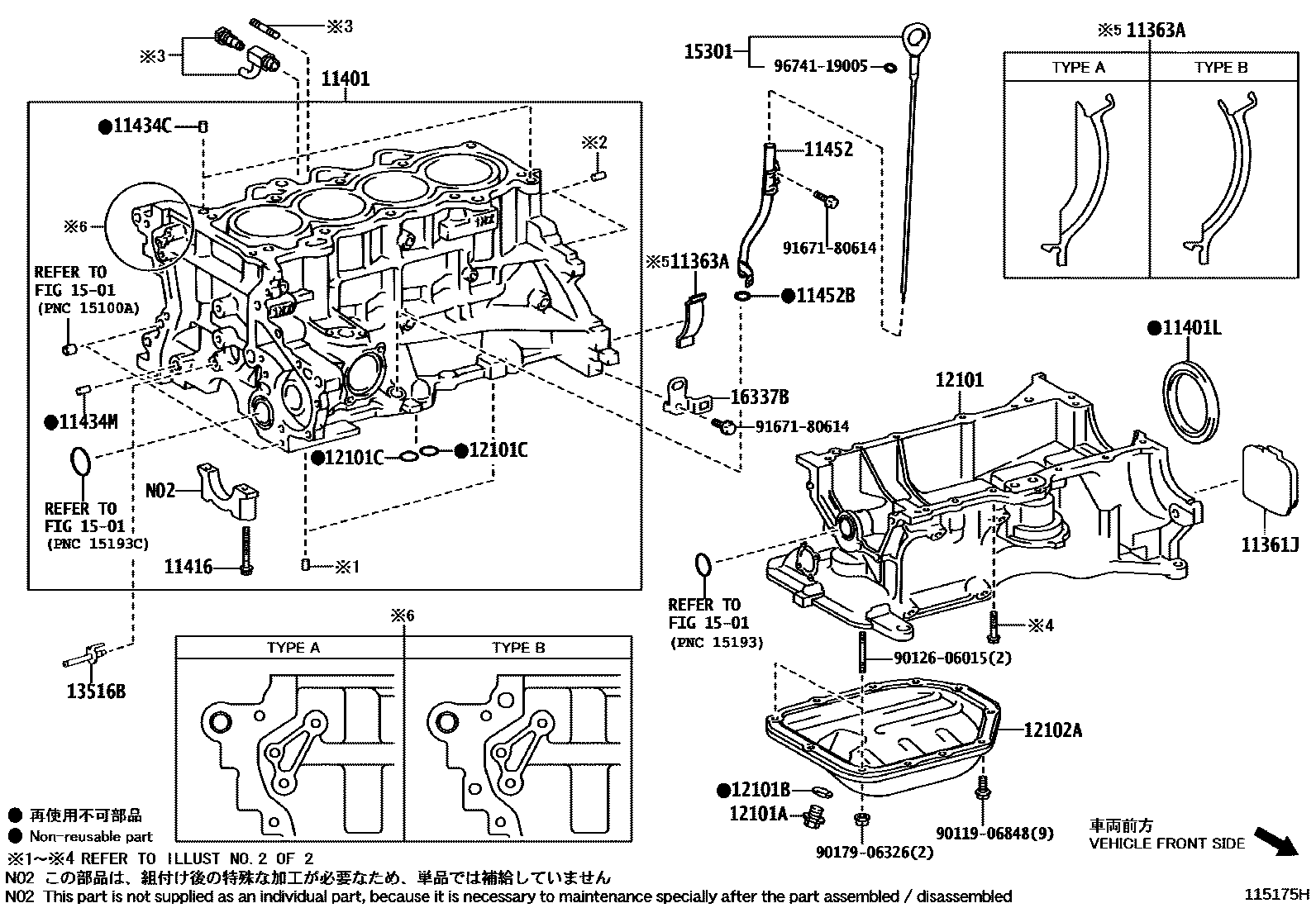

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i2ZRFE..ZRE15#¥490200710-200912

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-21010i1NZFE..NZE151¥350200710-201112

main11363-21010i2ZRFAE..ZRE15#..CBU¥350200912

main11363-33010i1NZFE..NZE151..CBU¥200201112

11401BLOCK SUB-ASSY, CYLINDER

main11401-29865i1NZFE..NZE151¥182,000200710-200812

sub11401-29866¥182,000

main11401-29866i1NZFE..NZE151¥182,000200812-201111

sub11401-29867¥182,000

main11401-29867i1NZFE..NZE151..CBU¥182,000201111-201204

sub11401-29868¥182,000

sub12315-21044¥3,720

sub15100-21062¥10,400

sub91551-80635¥80

sub91551-C0830¥80

main11401-29868i1NZFE..NZE151..CBU¥182,000201204-201512

sub11401-80882¥114,000

main11410-09455i2ZRFAE..ZRE15#..CBU¥206,000201101

sub11410-09456

main11410-39025i2ZRFE..ZRE15#¥207,000200710-200801

sub11410-39055¥206,000

main11410-39055i2ZRFE..ZRE15#¥206,000200801-200904

sub11410-39057¥206,000

main11410-39057i2ZRFE..ZRE15#¥206,000200904-200912

sub11410-39245¥142,000

main11410-39057i2ZRFAE..ZRE15#..CBU¥206,000200912

sub11410-39245¥142,000

11401LSEAL, ENGINE REAR OIL

main90311-75016i1NZFE..NZE151¥1,390200710-201201

sub90311-75019¥1,390

main90311-75019i1NZFE..NZE151..CBU¥1,390201201-201512

sub90311-75022¥1,390

main90311-76002i2ZRFAE..ZRE15#..S..CBU¥1,510200710-201301

main90311-78002i2ZRFAE..ZRE15#..S..CBU¥2,020201212-201408

main90311-78008i2ZRFAE..ZRE15#..CBU¥1,510201408

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02125i1NZFE..NZE151¥220200710-200912

sub90910-02207¥160

main90910-02163i2ZRFE..ZRE15#¥190200710-200912

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-04097i2ZRFAE..ZRE15#..CBU¥50200710-200912

main90250-08120i1NZFE..NZE151¥140200710-200912

11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)

main90250-10030i1NZFE..NZE151¥160200710-200912

11452GUIDE, OIL LEVEL GAGE

main11452-21030i1NZFE..NZE151¥1,300200710-200912

main11452-37010i2ZRFE..ZRE15#¥2,170200710-201101

sub11452-37011¥1,360

main11452-37011i2ZRFAE..ZRE15#..CBU¥1,360201101

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i2ZRFAE..ZRE15#..CBU¥190200710-200912

12101PAN SUB-ASSY, OIL

main12111-21033i1NZFE..NZE151¥42,200200710-201301

main12111-21080i1NZFE..NZE151..CBU¥55,700201301

sub12111-21100¥42,200

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1NZFE..NZE151¥160200710-200912

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2ZRFE..ZRE15#¥90200710-200912

12101CRING, O(FOR OIL PAN)

main96722-24020i1NZFE..NZE151¥140200710-200912

12102APAN SUB-ASSY, OIL, NO.2

main12102-21010i1NZFE..NZE151¥3,780200710-200912

main12102-37010i2ZRFE..ZRE15#¥3,780200710-200912

13516BJET, OIL

main13516-21010i1NZFE..NZE151..CBU¥590200710-201312

sub13516-21011¥360

main13516-21011i1NZFE..NZE151..CBU¥360201401

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-21040i1NZFE..NZE151¥1,200200710-201203

sub15301-21060¥1,000

main15301-21060i1NZFE..NZE151..CBU¥1,000201203

sub15301-21061¥1,000

main15301-37010i2ZRFAE..ZRE15#..CBU¥750200710-201208

main15301-37030i2ZRFAE..ZRE15#..CBU¥1,200201208-201308

sub15301-37010¥750

16337BSTAY, WATER OUTLET, NO.1

main16337-21010i1NZFE..NZE151¥240200710-200912

9011906848

main90119-06848¥60

9012606015

main90126-06015¥110

9017906326

main90179-06326¥60

9167180614

main91671-80614¥60

9674119005

main96741-19005¥140

23 parts on this diagram · 4 diagrams in section
