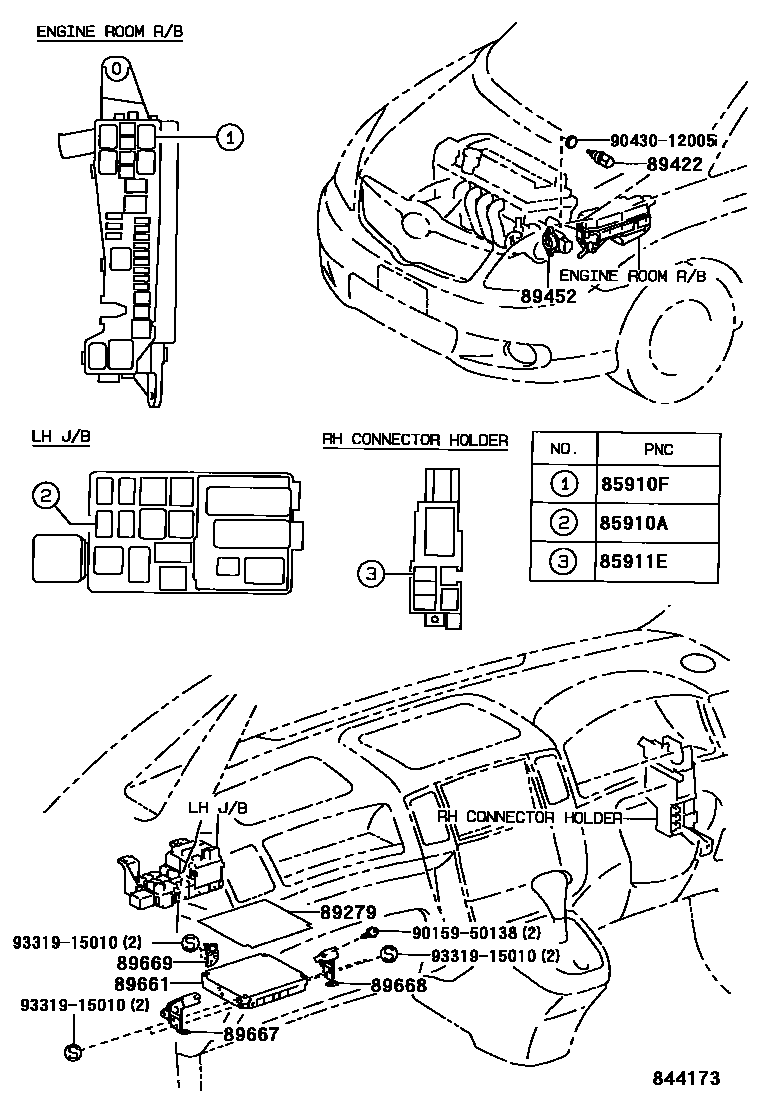

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02020iNZE121,ZZE12#200304

sub90987-02027

85910FRELAY, COMPUTER (FOR EFI)

main90987-02020iNZE121,ZZE12#200304

sub90987-02027

85911ERELAY, ALTERNATOR CUT

main90987-02020iNZE121200105-200304

sub90987-02027

89279COVER, ENGINE CONTROL COMPUTER

main89279-12150iZZE12#200105-200304

main89279-12160iNZE121200105-200304

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iNZE121,ZZE12#200105-200304

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iNZE121,ZZE12#200105-200201

89661COMPUTER, ENGINE CONTROL

main89661-13050iNZE121200105-200304

main89661-13100iZZE122200105-200304

main89661-13110iZZE124200108-200304

main89661-13220iZZE122200304

main89661-13240iZZE124200304

main89661-13260iNZE121200304

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12190iZZE12#200105-200304

main89667-12200iNZE121200105-200304

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12100iZZE12#200105-200304

main89668-12110iNZE121200105-200304

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-12030iNZE121,ZZE12#200105-200304

9015950138

main90159-50138

9043012005

main90430-12005

9331915010

main93319-15010

13 parts on this diagram · 2 diagrams in section
