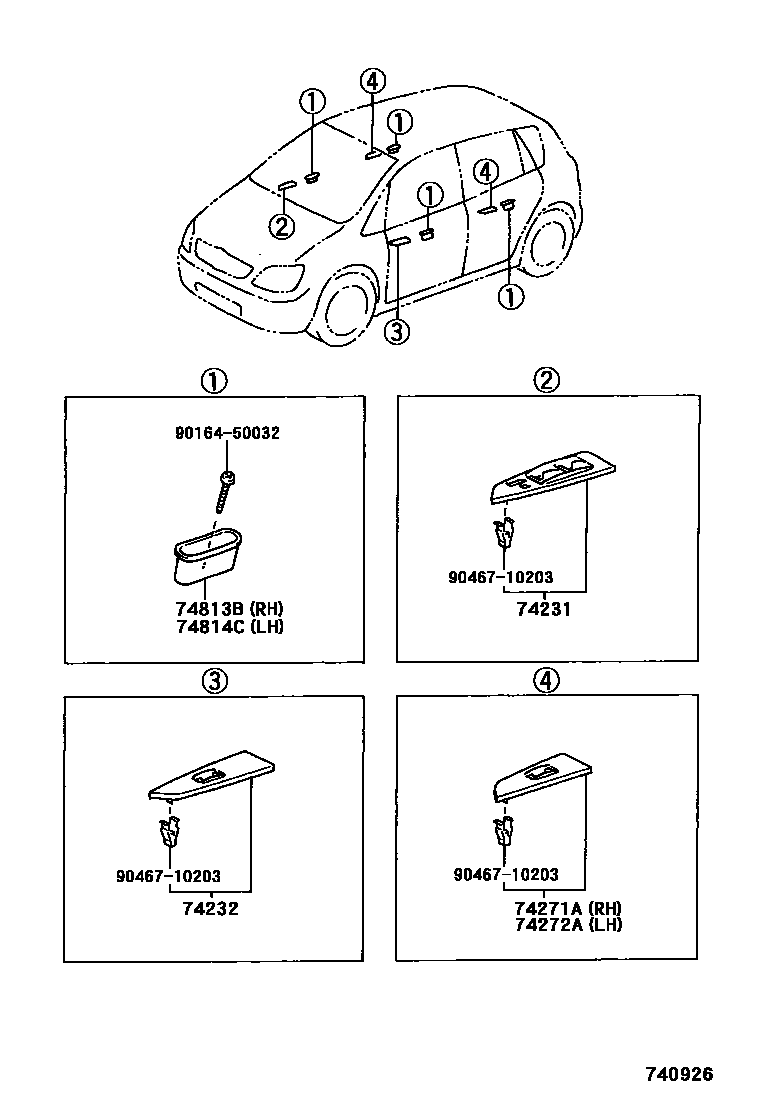

ARMREST & VISOR

0001 1 0002 1

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-13070-A0iNZE121,ZZE12#..V,X200105-200304

IVORY,TRIM0#

main74231-13080iNZE121,ZZE124..07S..V¥3,480200204-200304

main74231-13080iNZE121,ZZE124..07S..V¥3,480200206-200304

main74231-13080iZZE124..X¥3,480200108-200304

main74231-13080iNZE121,ZZE122..X¥3,480200105-200304

main74231-13090iZZE12#..SAER¥4,030200105-200304

main74231-13090iNZE121,ZZE124..07S..X¥4,030200111-200305

main74231-13090iNZE121,ZZE124..07S..V¥4,030200204-200304

main74231-13090iNZE121,ZZE124..07S..V¥4,030200206-200304

main74231-13170-A0iNZE121,ZZE12#..X200304-200706

IVORY,TRIM0#

main74231-13170-B0iNZE121,ZZE12#..X200304-200706

DK.GRAY,TRIM1#

main74231-13180iNZE121,ZZE12#¥3,230200304-200706

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-13030-A0iNZE121,ZZE12#..V,X200105-200304

IVORY,TRIM0#

main74232-13040iNZE121,ZZE12#..X¥3,480200105-200304

main74232-13040iNZE121,ZZE124..07S..V¥3,480200206-200304

main74232-13040iNZE121,ZZE124..07S..V¥3,480200204-200304

main74232-13050iNZE121,ZZE124..07S..X¥3,480200111-200305

main74232-13050iNZE121,ZZE124..07S..V¥3,480200204-200304

main74232-13050iZZE12#..SAER¥3,480200105-200304

main74232-13050iNZE121,ZZE124..07S..V¥3,480200206-200304

main74232-13060-A0iNZE121,ZZE12#..X200304-200706

IVORY,TRIM0#

main74232-13060-B0iNZE121,ZZE12#..X200304-200706

DK.GRAY,TRIM1#

main74232-13140iNZE121,ZZE12#¥4,040200304-200706

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-13010-A0iNZE121,ZZE12#..V,X200105-200304

IVORY,TRIM0#

main74271-13020iNZE121,ZZE124..07S..V¥4,030200206-200304

main74271-13020iNZE121,ZZE12#..X¥4,030200105-200304

main74271-13020iNZE121,ZZE124..07S..V¥4,030200204-200304

main74271-13030iNZE121,ZZE124..07S..V¥4,030200204-200304

main74271-13030iNZE121,ZZE124..X¥4,030200111-200305

main74271-13030iNZE121,ZZE124..07S..V¥4,030200206-200304

main74271-13030iZZE12#..SAER¥4,030200105-200304

main74271-13070-A0iNZE121,ZZE12#..X200304-200706

IVORY,TRIM0#

main74271-13070-B0iNZE121,ZZE12#..X200304-200706

DK.GRAY,TRIM1#

main74271-13080iNZE121,ZZE12#¥3,720200304-200706

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-13010-A0iNZE121,ZZE12#..V,X200105-200304

IVORY,TRIM0#

main74272-13020iNZE121,ZZE12#..X¥4,030200105-200304

main74272-13020iNZE121,ZZE124..07S..V¥4,030200204-200304

main74272-13020iNZE121,ZZE124..07S..V¥4,030200206-200304

main74272-13030iZZE12#..SAER¥4,030200105-200304

main74272-13030iNZE121,ZZE124..07S..V¥4,030200204-200304

main74272-13030iNZE121,ZZE124..07S..X¥4,030200111-200305

main74272-13030iNZE121,ZZE124..07S..V¥4,030200206-200304

main74272-13070-A0iNZE121,ZZE12#..X200304-200706

IVORY,TRIM0#

main74272-13070-B0iNZE121,ZZE12#..X200304-200706

DK.GRAY,TRIM1#

main74272-13080iNZE121,ZZE12#¥3,720200304-200706

74813BHANDLE, FRONT DOOR PULL, RH

main74813-52010-A0iNZE121,ZZE12#..X200105-200706

IVORY,TRIM0#

sub74813-52010¥1,010

main74813-52010-B2iNZE121,ZZE124..07S..V200206-200304

sub74813-52010¥1,010

main74813-52010-B2iZZE12#..SAER200105-200706

DK.GRAY,TRIM1#

sub74813-52010¥1,010

main74813-52010-B2iNZE121,ZZE124..07S..X200111-200305

sub74813-52010¥1,010

main74813-52010-B2iNZE121,ZZE124..07S..V200204-200304

sub74813-52010¥1,010

74814CHANDLE, FRONT DOOR PULL, LH

main74814-52010-A0iNZE121,ZZE12#..X200105-200706

IVORY,TRIM0#

sub74814-52010¥1,010

main74814-52010-B2iNZE121,ZZE124..07S..X200111-200305

sub74814-52010¥1,010

main74814-52010-B2iNZE121,ZZE124..07S..V200204-200304

sub74814-52010¥1,010

main74814-52010-B2iNZE121,ZZE124..07S..V200206-200304

sub74814-52010¥1,010

main74814-52010-B2iNZE121,ZZE12#200105-200706

DK.GRAY,TRIM1#

sub74814-52010¥1,010

9016450032

main90164-50032¥90

9046710203

main90467-10203¥60

8 parts on this diagram · 2 diagrams in section
