EPC Data

REAR SEAT & SEAT TRACK

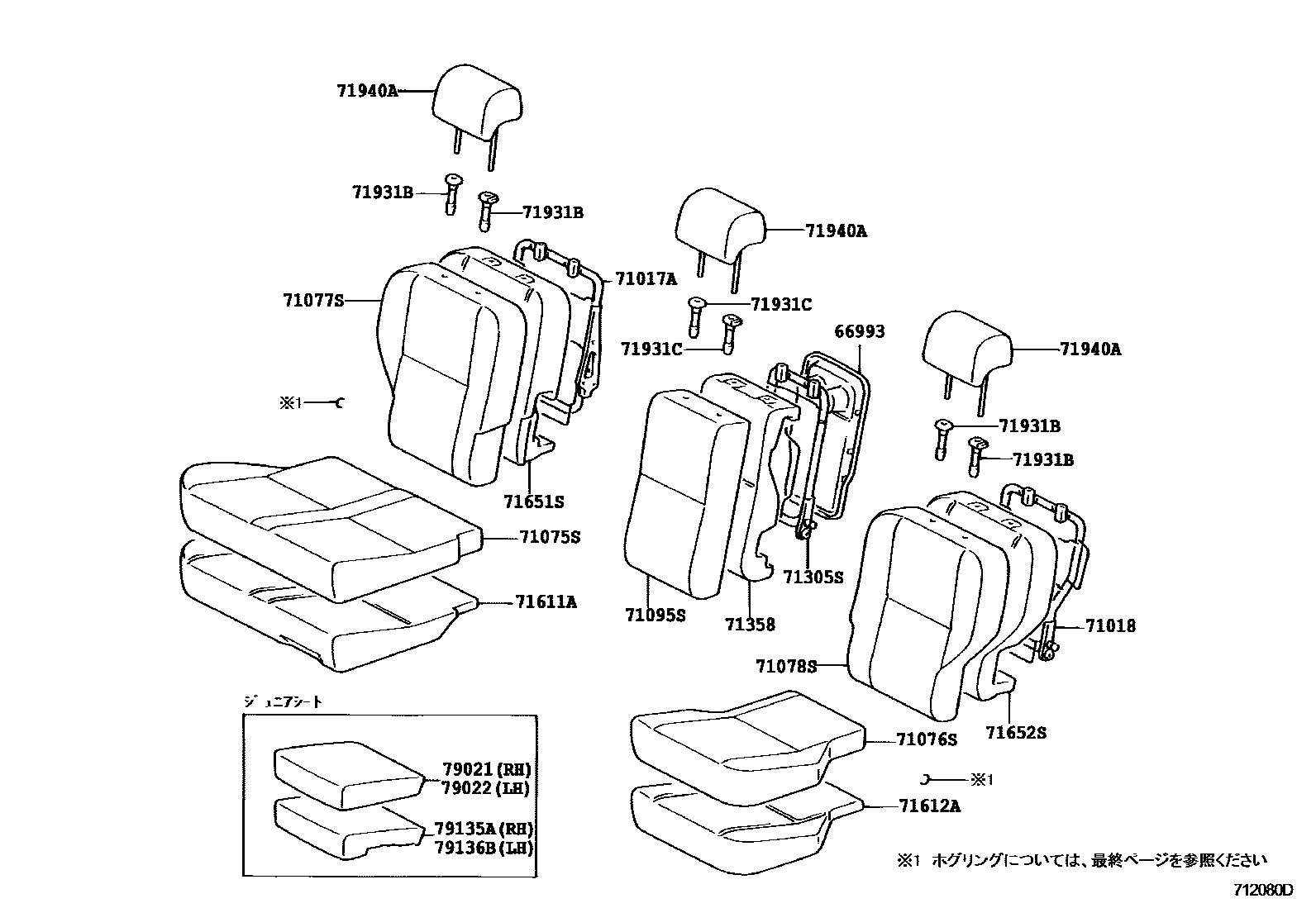

Parts diagram
66993TRAY, REAR CENTER SEAT CUP HOLDER
main66993-13010-A0i200304-200706
IVORY,TRIM0#
sub66993-13020
main66993-13010-B0i200105-200304
DK.GRAY,TRIM1#
sub66993-13020
71017AFRAME SUB-ASSY, REAR SEATBACK
main71017-13260i200105-200304
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-13110i200105-200304
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
main71075-13A20-A0i200401-200706
sub71075-13A21
main71075-13A30-A0i200401-200706
sub71075-13A31
main71075-1F060-A2i200105-200304
main71075-1F060-B1i200204-200304
main71075-1F070-A2i200105-200304
main71075-1F070-B1i200204-200304
main71075-1F080-A0i200105-200304
main71075-1F090-A0i200105-200304
main71075-1F100-B0i200105-200304
sub71075-1F101
main71075-1F110-B0i200111-200304
sub71075-1F111
main71075-1F110-B1i200304-200706
sub71075-1F111
main71075-1F220-A1i200304-200706
sub71075-1F221
main71075-1F220-B1i200304-200706
sub71075-1F221
main71075-1F230-A1i200401-200706
sub71075-1F231
main71075-1F230-A2i200311-200706
sub71075-1F231
main71075-1F230-B1i200304-200706
sub71075-1F231
main71075-1F240-A0i200304-200706
sub71075-1F241
main71075-1F240-B0i200304-200706
sub71075-1F241
main71075-1F250-A0i200304-200706
sub71075-1F251
main71075-1F250-B0i200304-200706
sub71075-1F251
71076SCOVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71076-13420-A2i200105-200304
main71076-13420-B1i200204-200304
main71076-13500-A2i200105-200304
main71076-13500-B1i200204-200304
main71076-13510-A0i200105-200304
main71076-13520-A0i200105-200304
main71076-13530-B0i200304-200706
sub71076-13531
main71076-13540-B0i200304-200305
sub71076-13541
main71076-13540-B1i200304-200706
sub71076-13541
main71076-13650-A1i200304-200706
sub71076-13651
main71076-13650-B1i200304-200706
sub71076-13651
main71076-13660-A1i200311-200706
sub71076-13661
main71076-13660-A2i200311-200706
sub71076-13661
main71076-13660-B1i200304-200706
sub71076-13661
main71076-13670-A0i200304-200706
sub71076-13671
main71076-13670-B0i200304-200706
sub71076-13671
main71076-13680-A0i200304-200706
sub71076-13681
main71076-13680-B0i200304-200706
sub71076-13681
main71076-13710-A0i200401-200706
sub71076-13711
main71076-13720-A0i200401-200706
sub71076-13721
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-13A20-A0i200401-200706
main71077-1F470-A1i200206-200304
main71077-1F470-B0i200204-200304
main71077-1F480-A0i200105-200304
main71077-1F490-B1i200111-200304
sub71077-1F491
main71077-1F500-A0i200105-200304
main71077-1F510-B0i200109-200304
main71077-1F540-A0i200105-200304
main71077-1F650-A1i200304-200706
sub71077-1F651
main71077-1F650-A2i200311-200706
sub71077-1F651
main71077-1F650-B1i200304-200706
sub71077-1F651
main71077-1F660-A0i200304-200706
sub71077-1F661
main71077-1F660-B0i200304-200706
sub71077-1F661
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-13820-A1i200105-200304
main71078-13820-B0i200204-200304
main71078-13830-A0i200105-200304
main71078-13840-B1i200304-200706
sub71078-13841
main71078-13850-A0i200105-200304
main71078-13860-B0i200109-200304
main71078-13890-A0i200105-200304
main71078-13A10-A0i200401-200706
main71078-1F090-A1i200304-200311
sub71078-1F091
main71078-1F090-A2i200311-200706
sub71078-1F091
main71078-1F090-B1i200304-200706
sub71078-1F091
main71078-1F100-A0i200304-200706
sub71078-1F101
main71078-1F100-B0i200304-200706
sub71078-1F101
71095SCOVER SUB-ASSY, CENTER SEATBACK
main71095-13010-A0i200105-200304
main71095-13010-B0i200204-200304
main71095-13030-A0i200105-200304
main71095-13040-B0i200105-200304
main71095-13050-B1i200304-200706
main71095-13060-A1i200311-200706
sub71095-13061
main71095-13060-A2i200311-200706
sub71095-13061
main71095-13060-B1i200304-200706
sub71095-13061
main71095-13070-A0i200304-200706
main71095-13070-B0i200304-200706
main71095-13080-A0i200401-200706
71305SFRAME SUB-ASSY, CENTER SEATBACK
main71305-13020i200105-200304
main71305-13030i200304
71358PAD, CENTER SEATBACK
main71365-13010i200105-200304
main71365-13020i200304
71611APAD, REAR SEAT CUSHION, RH
main71611-13270i200105-200304
main71611-13280i200105-200304
71612APAD, REAR SEAT CUSHION, LH
main71612-13130i200105-200304
main71612-13140i200304
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-13300i200105-200304
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-13180i200304
71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST
main71956-47010-A0×2i200105-200304
sub71956-02040
main71956-47010-B2×3i200206-200304
sub71956-02040
main71970-47010-A0×2i200304-200706
sub71970-02040
main71970-47010-B2×3i200204-200304
sub71970-02040
71931CSUPPORT ASSY, REAR NO.2 SEAT HEADREST
main71956-47010-A0i200304-200706
sub71956-02040
main71956-47010-B2i200304-200706
sub71956-02040
main71970-47010-A0i200304-200706
sub71970-02040
main71970-47010-B2i200304-200706
sub71970-02040
71940AHEADREST ASSY, REAR SEAT
main71940-13160-A2×2i200105-200304
main71940-13160-B0×2i200204-200304
main71940-13220-A0×2i200105-200304
main71940-13230-B1×2i200304-200305
main71940-13280-A0×2i200311-200706
sub71940-13281
main71940-13280-B0×2i200304-200706
sub71940-13281
main71940-13290-A0×2i200304-200706
main71940-13290-B0×2i200304-200706
main71940-13310-A0×2i200401-200706
sub71940-13311
main71960-13020-B1i200304-200706
main71960-13110-A0i200304-200311
sub71960-13111
main71960-13110-B0i200304-200706
sub71960-13111
main71960-13120-A0i200304-200706
main71960-13120-B0i200304-200706
main71960-13140-A0i200401-200706
sub71960-13141
79021COVER SUB-ASSY, NO.2 SEAT CUSHION, RH
main79021-13010-A2i200105-200304
main79021-13010-B0i200206-200304
main79021-13020-A1i200105-200304
main79021-13030-B1i200105-200304
sub79021-13031
main79021-13060-A0i200304-200706
sub79021-13061
main79021-13060-A1i200311-200706
sub79021-13061
main79021-13060-B0i200304-200706
sub79021-13061
main79021-13070-A0i200304-200706
sub79021-13071
main79021-13070-B0i200304-200706
sub79021-13071
main79021-13080-A0i200401-200706
sub79021-13081
79022COVER SUB-ASSY, NO.2 SEAT CUSHION, LH
main79022-13010-A2i200105-200304
main79022-13010-B0i200204-200304
main79022-13020-A1i200105-200304
main79022-13030-B1i200304-200305
sub79022-13031
main79022-13060-A0i200304-200706
sub79022-13061
main79022-13060-A1i200311-200706
sub79022-13061
main79022-13060-B0i200304-200706
sub79022-13061
main79022-13070-A0i200304-200706
sub79022-13071
main79022-13070-B0i200304-200706
sub79022-13071
main79022-13080-A0i200401-200706
sub79022-13081
79135APAD, NO.1 SEAT CUSHION, RH
main79235-13010i200105-200304
79136BPAD, NO.1 SEAT CUSHION, LH
main79235-13010i200105-200304

21 parts on this diagram · 5 diagrams in section
