FRONT SEAT & SEAT TRACK

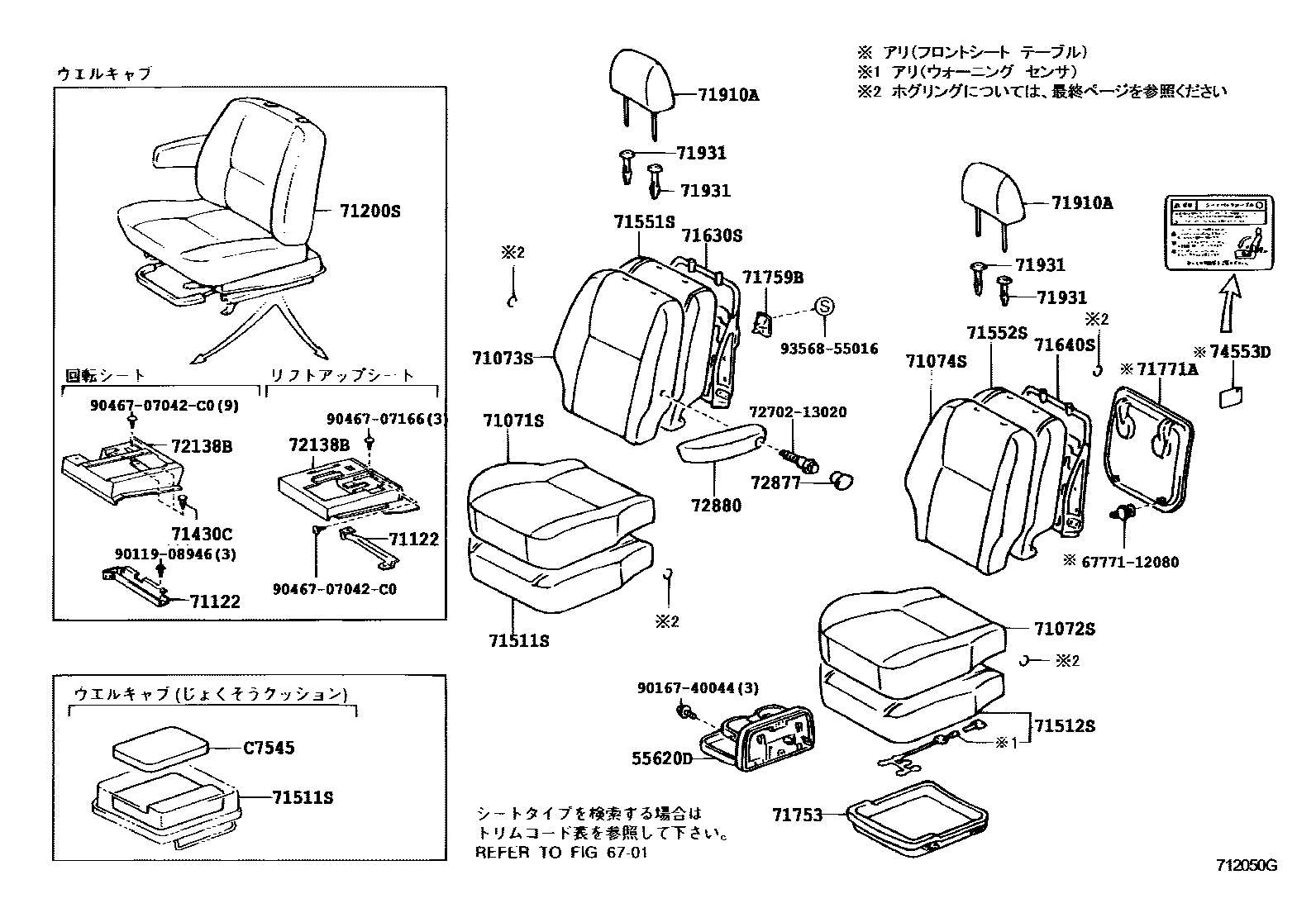

Parts diagram
55620DHOLDER ASSY, FRONT SEAT CUP
main55620-13020-A0i200105-200706
IVORY,TRIM0#
sub55620-13020
main55620-13020-B0i200204-200304
sub55620-13020
main55620-13020-B0i200206-200304
sub55620-13020
main55620-13020-B0i200106-200706
DK.GRAY,TRIM1#
sub55620-13020
main55620-13020-B0i200111-200305
sub55620-13020
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-13660-A2i200105-200304
main71071-13660-A2i200105-200304
main71071-13660-A2i200204-200304
main71071-13660-A2i200206-200304
main71071-13660-B1i200206-200304
main71071-13660-B1i200204-200304
main71071-13670-A0i200105-200304
main71071-13680-B0i200111-200305
sub71071-13681
main71071-13680-B0i200105-200706
sub71071-13681
main71071-13850-B0i200304-200706
main71071-13A10-A0i200401-200706
sub71071-13A11
main71071-1F140-A1i200304-200706
sub71071-1F141
main71071-1F140-B1i200304-200706
sub71071-1F141
main71071-1F150-A1i200304-200706
sub71071-1F151
main71071-1F150-B1i200304-200706
sub71071-1F151
main71071-1F160-A0i200304-200706
sub71071-1F161
main71071-1F160-B0i200304-200706
sub71071-1F161
main71071-1F170-A0i200304-200706
sub71071-1F171
main71071-1F170-B0i200304-200706
sub71071-1F171
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-13740-A1i200105-200304
main71072-13740-A1i200105-200304
main71072-13740-A1i200204-200304
main71072-13740-A1i200206-200304
main71072-13740-B0i200206-200304
main71072-13740-B0i200204-200304
main71072-13750-A2i200105-200304
main71072-13750-A2i200105-200304
main71072-13760-A0i200105-200304
main71072-13770-B0i200108-200304
sub71072-13771
main71072-13770-B0i200105-200706
sub71072-13771
main71072-13770-B0i200111-200305
sub71072-13771
main71072-13A00-A0i200401-200706
sub71072-13A01
main71072-1F210-B0i200109-200304
main71072-1F210-B0i200109-200304
main71072-1F270-A1i200304-200706
sub71072-1F271
main71072-1F270-B1i200304-200706
sub71072-1F271
main71072-1F280-A1i200304-200706
sub71072-1F281
main71072-1F280-B1i200304-200706
sub71072-1F281
main71072-1F290-A0i200304-200706
sub71072-1F291
main71072-1F290-B0i200304-200706
sub71072-1F291
main71072-1F300-A0i200304-200706
sub71072-1F301
main71072-1F300-B0i200304-200706
sub71072-1F301
main71072-1F310-B0i200304-200706
sub71072-1F311
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71027-13010-A0i200206-200304
main71027-13010-A0i200204-200304
main71027-13010-B0i200204-200304
main71027-13010-B0i200206-200304
main71073-13680-A0i200105-200304
main71073-13690-A0i200105-200304
main71073-13690-A0i200105-200304
main71073-13700-A0i200105-200304
main71073-13710-B0i200111-200305
sub71073-13711
main71073-13710-B0i200105-200706
sub71073-13711
main71073-13A00-A0i200401-200706
sub71073-13A01
main71073-1F140-A1i200304-200706
sub71073-1F141
main71073-1F140-A1i200311-200706
sub71073-1F141
main71073-1F140-A2i200311-200706
IVORY,TRIM00
sub71073-1F141
main71073-1F140-B1i200304-200706
sub71073-1F141
main71073-1F160-A1i200304-200706
sub71073-1F161
main71073-1F160-B1i200304-200706
sub71073-1F161
main71073-1F170-A1i200304-200706
sub71073-1F171
main71073-1F170-B1i200304-200706
sub71073-1F171
main71073-1F180-A0i200304-200706
sub71073-1F181
main71073-1F180-B0i200304-200706
sub71073-1F181
main71073-1F190-A0i200304-200706
sub71073-1F191
main71073-1F190-B0i200304-200706
sub71073-1F191
main71073-1F210-B0i200304-200706
sub71073-1F211
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-13600-B0i200105-200706
sub71074-13601
main71074-13600-B0i200111-200305
sub71074-13601
main71074-13600-B0i200108-200304
sub71074-13601
main71074-13610-A0i200204-200304
main71074-13610-A0i200105-200304
main71074-13610-A0i200206-200304
main71074-13610-B0i200204-200304
main71074-13610-B0i200206-200304
main71074-13620-A0i200105-200304
main71074-13620-A0i200105-200304
main71074-13630-A0i200105-200304
main71074-13880-B0i200109-200304
main71074-13880-B0i200109-200304
main71074-1F080-A1i200311-200706
sub71074-1F081
main71074-1F080-A1i200304-200706
sub71074-1F081
main71074-1F080-A2i200311-200706
IVORY,TRIM00
sub71074-1F081
main71074-1F080-B1i200304-200706
sub71074-1F081
main71074-1F090-A1i200304-200706
sub71074-1F091
main71074-1F090-B1i200304-200706
sub71074-1F091
main71074-1F100-A0i200304-200706
sub71074-1F101
main71074-1F100-B0i200304-200706
sub71074-1F101
main71074-1F110-A0i200304-200706
sub71074-1F111
main71074-1F110-B0i200304-200706
sub71074-1F111
main71074-1F120-A0i200401-200706
main71074-1F130-B0i200304-200706
sub71074-1F131
71122BRACKET, FRONT SEAT CUSHION, LH
main57468-13030i200105-200304
main57468-13040i200105-200108
sub57468-13041
main57468-13041i200108-200304
71200SSEAT ASSY, FRONT LH
main71102-13010i200105-200304
main71102-13040i200105-200108
sub71102-13041
main71102-13041i200108-200304
main71102-13070i200105-200108
sub71102-13071
main71102-13071i200108-200304
main71102-13080i200105-200108
sub71102-13081
main71102-13081i200108-200304
main71102-13090i200105-200304
main71102-13100i200105-200304
71430CCLIP
main90467-05020-22i200109-200304
BLACK,TRIM1#
sub90467-05020
sub90467-05027
main90467-05020-22i200109-200304
BLACK,TRIM0#
sub90467-05020
sub90467-05027
main90467-05020-22i200610-200706
sub90467-05020
sub90467-05027
main90467-05020-A4i200610-200706
sub90467-05020
sub90467-05027
main90467-05020-A4i200304-200509
IVORY,TRIM0#
sub90467-05020
sub90467-05027
main90467-05020-P1i200304-200509
DK.GRAY,TRIM1#
sub90467-05020
sub90467-05027
main90467-05020-P1i200610-200706
sub90467-05020
sub90467-05027
main90467-06017-A1i200610-200706
sub90467-06017
main90467-06017-B7i200610-200706
sub90467-06017
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-63010i200105-200706
main71511-63020i200108-200706
main71511-63020i200111-200305
mainC754618010i200105-200304
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71052-13050i200106-200706
main71052-13050i200105-200106
main71052-13060i200111-200305
main71052-13060i200105-200706
main71502-13010i200105-200706
main71512-D1020i200610-200706
main71512-D1040i200610-200706
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-13070i200106-200304
main71551-13080i200105-200706
main71551-13090i200105-200706
main71551-13090i200204-200304
main71551-13090i200206-200304
main71551-13170i200111-200305
main71551-13170i200105-200706
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-13070i200105-200706
main71551-13160i200111-200305
main71551-13160i200105-200706
main71551-63012i200105-200304
main71551-D1010i200610-200706
main71551-D1020i200610-200706
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-13050i200105-200706
main71630-13060i200204-200304
main71630-13060i200105-200706
main71630-13060i200206-200304
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-13040i200105-200106
main71630-13040i200106-200706
main71630-63030i200105-200706
main71630-63030i200111-200305
71753TRAY, FRONT SEAT UNDER
main71753-52010i200204-200304
main71753-52010i200105-200304
main71753-52010i200206-200304
71759BHOOK, FRONT SEATBACK
main71759-13020-A0i200105-200706
IVORY,TRIM0#
sub71759-13020
main71759-13020-B0i200204-200304
sub71759-13020
main71759-13020-B0i200206-200304
sub71759-13020
main71759-13020-B0i200111-200305
sub71759-13020
main71759-13020-B0i200105-200706
DK.GRAY,TRIM1#
sub71759-13020
71771ABOARD, FRONT SEATBACK
main71771-13010-A0i200105-200706
IVORY,TRIM0#
main71771-13010-B0i200106-200706
DK.GRAY,TRIM1#
main71771-13010-B0i200111-200305
71910AHEADREST ASSY, FRONT SEAT
main71910-13240-A2i200105-200304
main71910-13240-A2i200105-200304
main71910-13240-A2i200105-200304
main71910-13240-A2i200105-200304
main71910-13240-B0i200206-200304
main71910-13240-B0i200204-200304
main71910-13270-A0i200105-200304
main71910-13270-A0i200105-200304
main71910-13280-B1i200109-200304
main71910-13280-B1i200106-200706
main71910-13280-B1i200105-200706
main71910-13280-B1i200106-200109
main71910-13280-B1i200111-200305
main71910-13280-B1i200108-200304
main71910-13290-A0i200304-200706
main71910-13290-A0i200311-200706
main71910-13290-A0i200311-200706
main71910-13290-A0i200304-200706
main71910-13290-A1i200311-200706
main71910-13290-A1i200311-200706
main71910-13290-B0i200304-200706
main71910-13290-B0i200304-200706
main71910-13300-A0i200304-200706
main71910-13300-A0i200304-200706
main71910-13300-B0i200304-200706
main71910-13300-B0i200304-200706
main71910-13310-A0i200401-200706
71931SUPPORT, FRONT SEAT HEADREST
main71930-42020-A0i200610-200706
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-B4i200610-200706
sub71930-52030
sub71930-42020
sub71930-44020
main71930-44020-B0i200704-200706
sub71930-44020
main71930-44020-B0i200704-200706
sub71930-44020
main71930-47010-A0i200105-200706
sub71930-47010
sub71930-44020
main71930-47010-A0i200105-200706
sub71930-47010
sub71930-44020
main71930-47010-B2i200105-200706
sub71930-47010
sub71930-44020
main71930-47010-B2i200105-200706
sub71930-47010
sub71930-44020
main71930-47010-B2i200111-200305
sub71930-47010
sub71930-44020
main71930-47010-B2i200204-200304
sub71930-47010
sub71930-44020
main71930-47010-B2i200206-200304
sub71930-47010
sub71930-44020
main71931-42020-A0i200610-200706
sub71931-42020
main71931-42020-B4i200610-200706
sub71931-42020
main71931-47010-A0i200105-200706
sub71931-47010
sub71931-42020
main71931-47010-A0i200105-200706
sub71931-47010
sub71931-42020
main71931-47010-B2i200105-200706
sub71931-47010
sub71931-42020
main71931-47010-B2i200105-200706
sub71931-47010
sub71931-42020
main71931-47010-B2i200111-200305
sub71931-47010
sub71931-42020
main71931-47010-B2i200204-200304
sub71931-47010
sub71931-42020
main71931-47010-B2i200206-200304
sub71931-47010
sub71931-42020
72138BCOVER, SEAT TRACK, LH
main72138-13030-A0i200105-200706
IVORY,TRIM0#
sub72138-13030
main72138-13030-B0i200105-200706
DK.GRAY,TRIM1#
sub72138-13030
main72138-13030-B0i200111-200305
sub72138-13030
main72138-13030-B0i200204-200304
sub72138-13030
main72138-13030-B0i200206-200304
sub72138-13030
main72138-13040i200105-200304
main72138-13050i200105-200304
72877COVER, SEAT ARMREST, RH
main72849-13010-A0i200204-200304
sub72849-13010
main72849-13010-A0i200105-200706
IVORY,TRIM0#
sub72849-13010
main72849-13010-A0i200206-200304
sub72849-13010
main72849-13010-B0i200204-200304
sub72849-13010
main72849-13010-B0i200111-200305
sub72849-13010
main72849-13010-B0i200105-200706
DK.GRAY,TRIM1#
sub72849-13010
main72849-13010-B0i200206-200304
sub72849-13010
72880ARMREST ASSY, SEAT, C RH
main72880-13040-A0i200105-200304
IVORY,TRIM0#
main72880-13050-B0i200111-200305
main72880-13050-B0i200304-200706
main72880-13050-B0i200105-200304
DARK GRAY,TRIM1#
main72880-13060-A0i200204-200304
main72880-13060-B0i200206-200304
main72880-13060-B0i200204-200304
main72880-13070-A0i200304-200706
sub72880-13080
main72880-13070-B0i200304-200706
sub72880-13080
main72880-13080-A0i200304-200706
main72880-13080-B0i200304-200706
74553DLABEL, FRONT SEAT CAUTION
main74553-13030i200105-200706
C7545PAD, FOLD SEAT CUSHION
mainC754518010i200105-200304
6777112080WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12080
7270213020BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-13020
9011908946
main90119-08946
9016740044
main90167-40044
9046707042C0
main90467-07042C0
9046707166
main90467-07166
9356855016
main93568-55016

31 parts on this diagram · 16 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
