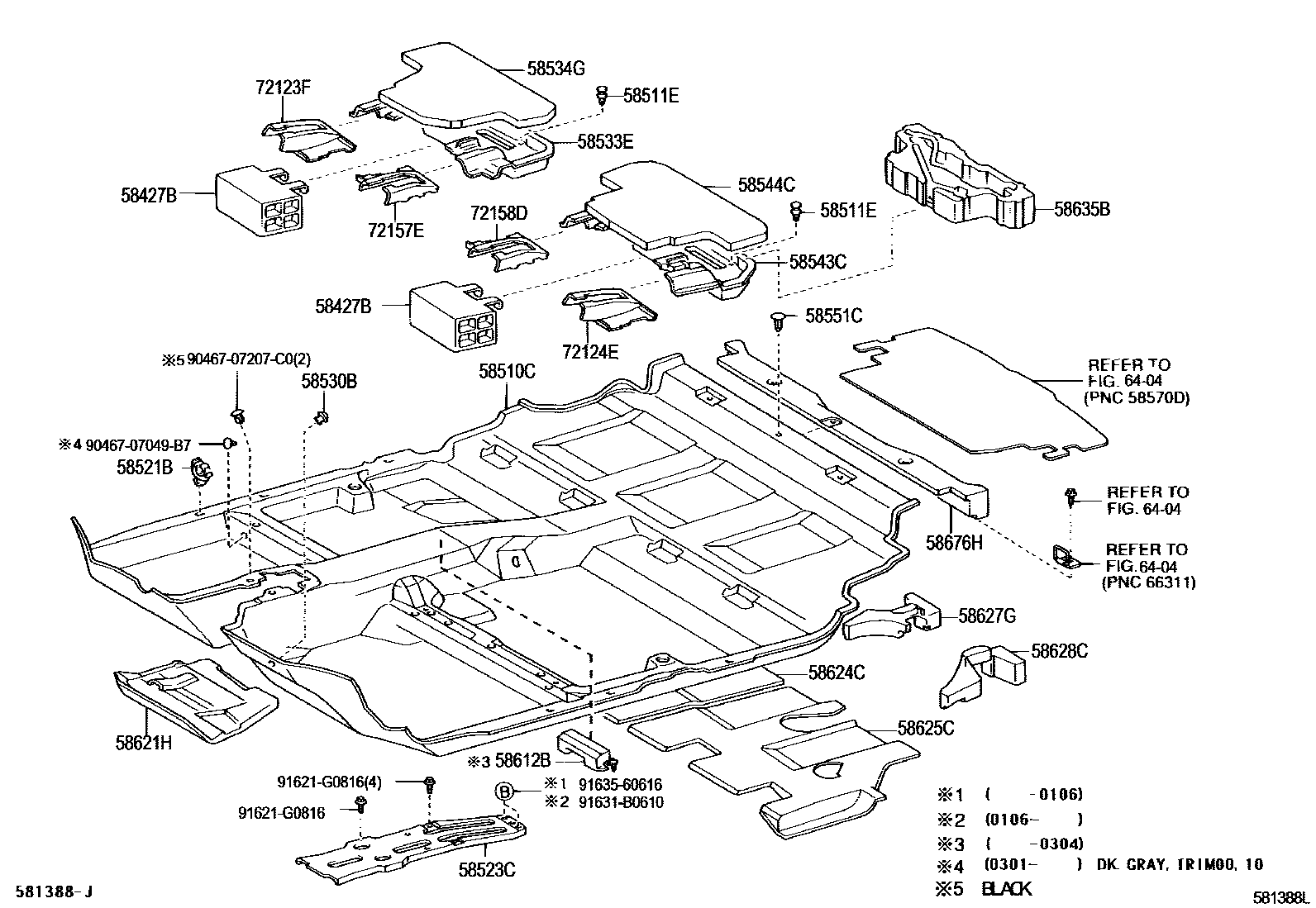

MAT & CARPET

58427BSPACER, REAR FLOOR BOARD

main58427-13040×2iNZE121,ZZE12#200105-200112

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-1F650-A0iNZE121,ZZE122..07S..(V,X)200105-200301

IVORY,TRIM0#

main58510-1F650-B0iNZE121200304-200305

main58510-1F651-A0iNZE121,ZZE122..07S..(V,X)200301-200304

IVORY,TRIM0#

main58510-1F651-B0iZZE122..SAER200301-200304

GRAY,TRIM1#

main58510-1F670-A0iNZE121,ZZE122..07S..(V,X)200105-200301

main58510-1F670-B0iNZE121200304-200305

main58510-1F671-A0iNZE121,ZZE122..07S..(V,X)200301-200304

main58510-1F671-B0iNZE121,ZZE122200304-200706

main58510-1F680-A0iZZE124..07S..(V,X)200108-200301

IVORY,TRIM0#

main58510-1F680-B0iZZE124..07S..V200204-200304

main58510-1F681-A0iZZE124..07S..(V,X)200301-200304

IVORY,TRIM0#

main58510-1F681-B0iZZE124200304-200706

GRAY,TRIM1#

main58510-1F690-A0iZZE124..07S..(V,X)200108-200301

main58510-1F690-B0iZZE124..07S..X200111-200304

main58510-1F691-A0iZZE124..X200304-200706

main58510-1F691-B0iZZE124..07S..SAER200301-200304

main58510-1F740-A0iNZE121,ZZE122..05S200105-200304

IVORY,TRIM0#

main58510-1F750-A0iNZE121,ZZE122..05S200105-200304

main58510-1F760-A0iZZE124..05S..(V,X)200108-200304

IVORY,TRIM0#

main58510-1F760-B0iZZE124..05S..SAER200108-200304

GRAY,TRIM1#

main58510-1F770-A0iZZE124..05S..(V,X)200108-200304

main58510-1F770-B0iZZE124..05S..SAER200108-200304

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-08188×4iNZE121,ZZE12#200304

58521BHOOK, FLOOR CARPET

main58521-13030×6iNZE121,ZZE12#200304

sub58521-13020

58523CFLOOR CARPET SET BRACKET

main58523-13010iNZE121,ZZE12#200105-200304

main58523-13011iNZE121,ZZE12#200304

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06001-A0iNZE121,ZZE12#..V,X200105-200304

IVORY,TRIM0#

main90467-06001-B3iNZE121,ZZE12#..X200304-200706

DK.GRAY,TRIM1#

58533EBOARD, FRONT FLOOR MAT, CENTER NO.1 RH

main58533-13010iNZE121,ZZE122200304

main58533-13020iZZE124200108-200304

58534GBOARD, FRONT FLOOR MAT, CENTER NO.2 RH

main58534-13010-A0iNZE121,ZZE122..X200304-200706

IVORY,TRIM0#

main58534-13010-B0iNZE121200304-200305

main58534-13020-A0iZZE124..X200304-200706

IVORY,TRIM0#

main58534-13020-B0iZZE124..07S..V200206-200304

main58534-13050-A0iNZE121,ZZE12#..X200304-200706

main58534-13050-B0iNZE121,ZZE12#200304-200706

58543CBOARD, FRONT FLOOR MAT, CENTER NO.1 LH

main58543-13010iNZE121,ZZE12#200304

main58543-13020iNZE121,ZZE12#200106-200304

main58543-13030iNZE121,ZZE12#200106-200304

58544CBOARD, FRONT FLOOR MAT, CENTER NO.2 LH

main58544-13050-A0iNZE121,ZZE122..X200304-200706

IVORY,TRIM0#

main58544-13050-B0iNZE121,ZZE122200304-200706

GRAY,TRIM1#

main58544-13060-A0iZZE124..V,X200108-200304

IVORY,TRIM0#

main58544-13060-B0iZZE124200304-200706

GRAY,TRIM1#

main58544-13070-A0iNZE121,ZZE122..V,X200106-200304

main58544-13070-B0iNZE121..07S..V200204-200304

main58544-13080-A0iZZE124..V,X200108-200304

main58544-13080-B0iZZE124..07S..V200204-200304

main58544-13090-A0iNZE121,ZZE122..V,X200106-200304

main58544-13090-B0iNZE121..07S..V200206-200304

main58544-13100-A0iZZE124..V,X200108-200304

main58544-13100-B0iZZE124..07S..V200204-200304

main58544-13150-A0iNZE121,ZZE12#..X200304-200706

main58544-13150-B0iNZE121,ZZE12#200304-200706

main58544-13170-A0iNZE121,ZZE12#..X200304-200706

main58544-13170-B0iNZE121,ZZE12#200304-200706

58551CCLIP(FOR FLOOR MAT, REAR)

main90467-08159-A0×2iZZE124..X200304-200706

IVORY,TRIM0#

main90467-08159-B2iNZE121,ZZE124..07S..X200111-200304

58612BPLATE, MAT SET, NO.2

main58612-13080iNZE121,ZZE12#..05S200106-200304

58621HPAD, FRONT FLOOR SILENCER

main58621-13030iNZE121,ZZE12#200105-200304

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-13020iNZE121,ZZE122..07S200105-200304

main58624-13040iNZE121,ZZE122..05S200105-200304

main58624-13050iZZE124..05S200108-200304

main58624-13060iZZE124..07S200108-200304

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-13010iNZE121,ZZE122200304

main58625-13030iNZE121,ZZE122..05S200105-200304

main58625-13040iZZE124..05S200108-200304

main58625-13050iZZE124..07S200108-200304

58627GPAD, CENTER FLOOR SILENCER, REAR RH

main58627-13020iZZE124..07S200108-200304

main58627-13030iNZE121,ZZE122200304

58628CPAD, CENTER FLOOR SILENCER, REAR LH

main58628-13020iZZE124..07S200108-200304

main58628-13021iZZE124200502

main58628-13030iNZE121,ZZE122200304-200502

main58628-13031iNZE121,ZZE122200502

58635BBOX, SEAT FLOOR

main58635-13030iZZE124200108-200304

58676HPAD, REAR FLOOR SILENCER

main58676-13070iNZE121,ZZE122200304-200502

main58676-13071iNZE121,ZZE122200502

6404

72123FCOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-13010-A0iNZE121,ZZE12#..V,X200105-200304

IVORY,TRIM0#

main72123-13010-B0iNZE121,ZZE12#200304-200706

DK.GRAY,TRIM1#

main72123-13020-A0iNZE121,ZZE12#..X200106-200304

main72123-13020-B0iZZE12#..SAER200106-200304

72124ECOVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-13010-A0iNZE121,ZZE12#..V,X200105-200304

IVORY,TRIM0#

main72124-13010-B0iNZE121,ZZE12#200304-200706

DK.GRAY,TRIM1#

main72124-13020-A0iNZE121,ZZE12#..V,X200106-200304

main72124-13020-B0iNZE121,ZZE124..07S..V200206-200304

72157ECOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72157-13040-A0iNZE121,ZZE122..V,X200105-200304

IVORY,TRIM0#

main72157-13040-B0iNZE121..07S..X200111-200304

main72157-13050-A0iZZE124..V,X200108-200304

main72157-13050-B0iZZE124..X200304-200305

main72157-13060-A0iNZE121,ZZE122..X200106-200304

main72157-13060-B0iZZE122..SAER200106-200304

main72157-13070-A0iZZE124..X200108-200304

main72157-13070-B0iZZE124..SAER200108-200304

72158DCOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72158-13060-A0iNZE121,ZZE122..X200304-200706

IVORY,TRIM0#

main72158-13060-B0iNZE121..07S..V200204-200304

main72158-13070-A0iZZE124..V,X200108-200304

IVORY,TRIM0#

main72158-13070-B0iZZE124..X200304-200305

main72158-13080-A0iNZE121,ZZE122..V,X200106-200304

main72158-13080-B0iNZE121..07S..V200206-200304

main72158-13090-A0iZZE124..V,X200108-200304

main72158-13090-B0iZZE124..07S..V200206-200304

9046707049B7

main90467-07049B7

9046707207C0

main90467-07207C0

91621G0816

main91621-G0816

91631B0610

main91631-B0610

9163560616

main91635-60616

29 parts on this diagram · 1 diagram in section
